2.5 Inch Lift Kit w/ Radius Arm | Ford F450 Super Duty (20-22) 4WD | Diesel & Gas

From $4,259.95 AUD

Shock Option: FOX 2.0 Performance Series

Shock Option: FOX 2.0 Performance Series

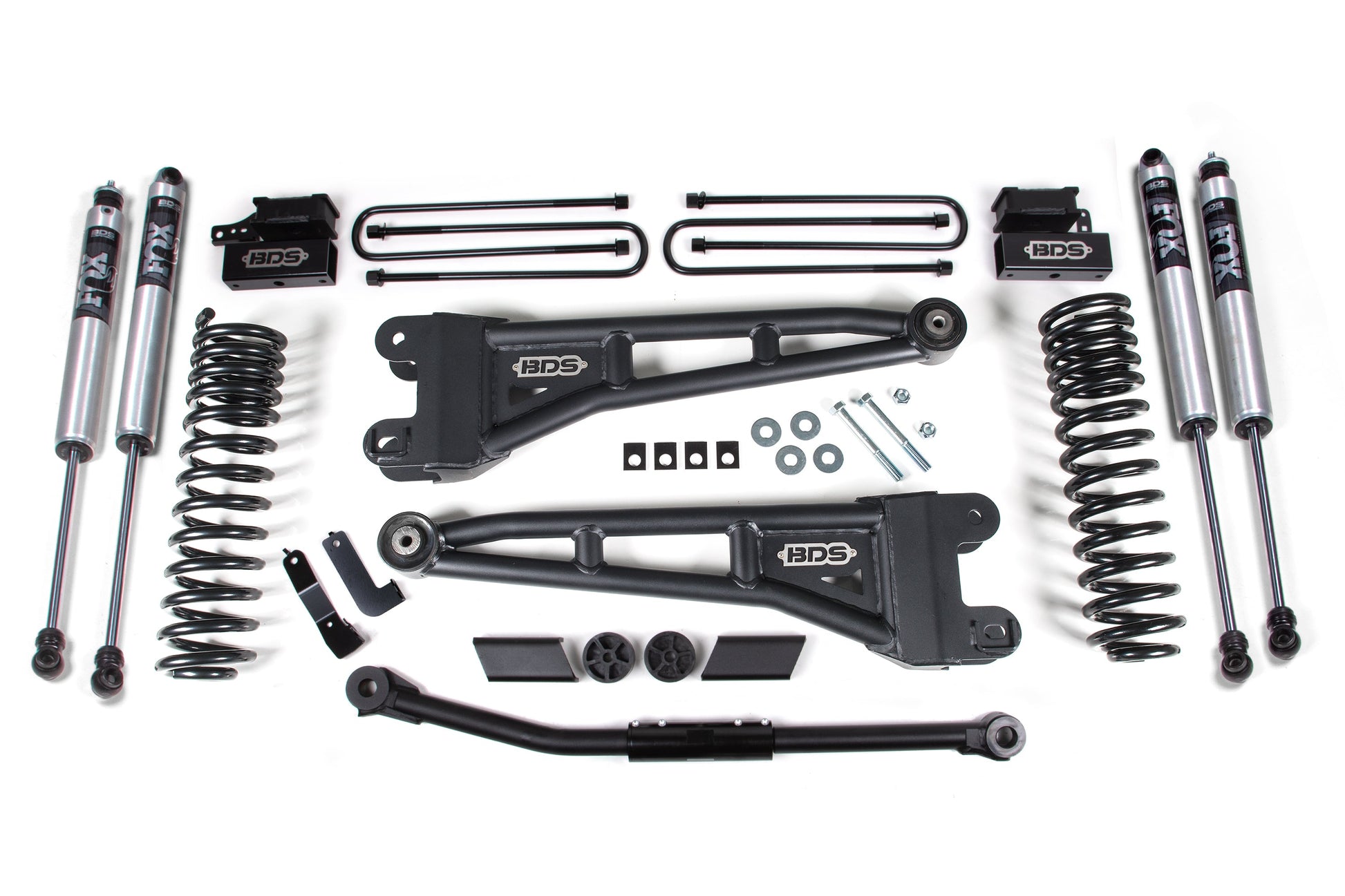

FOX 2.0 Performance Series
NX2 Nitro Series

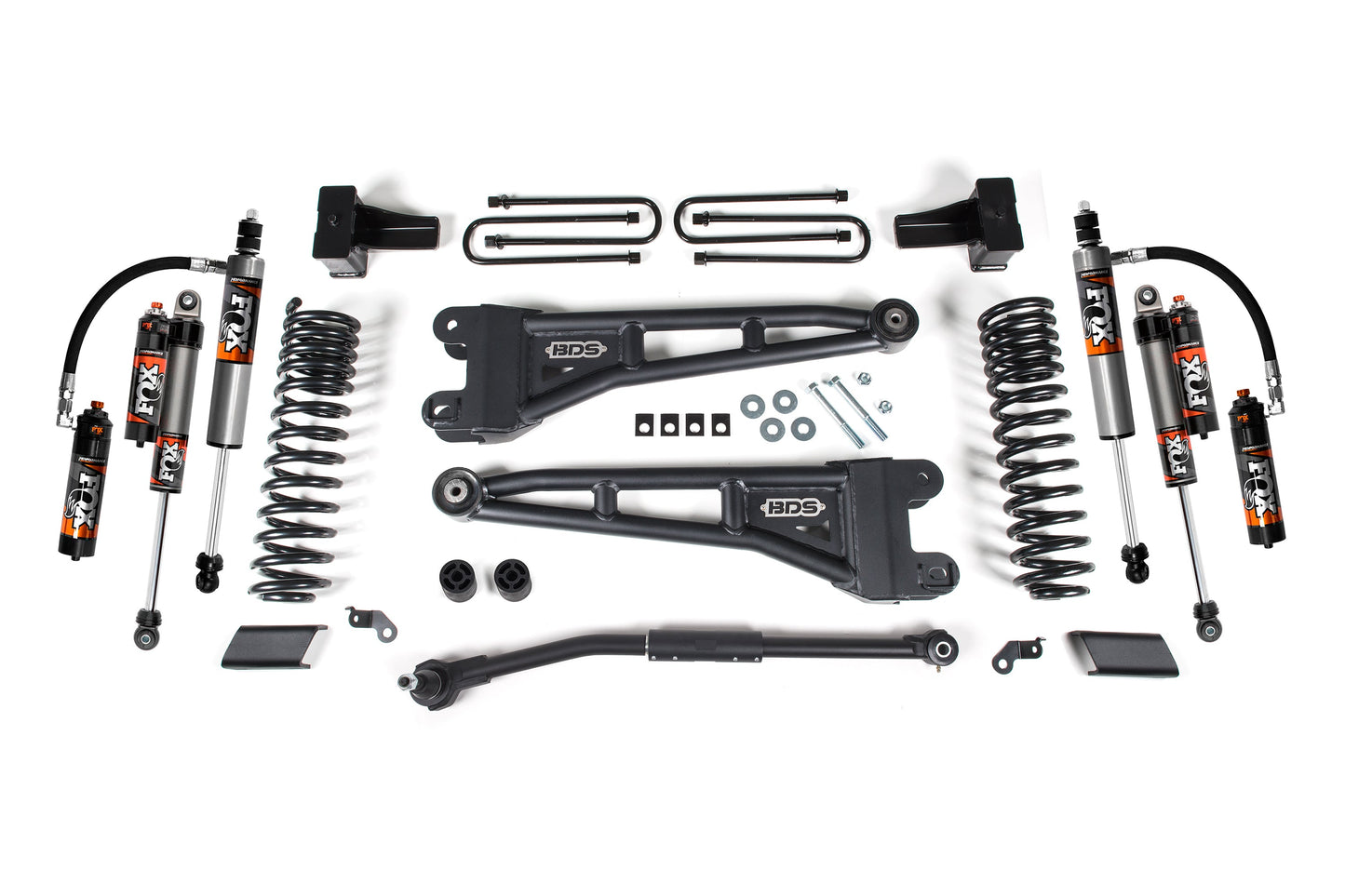

FOX 2.5 Performance Elite
$5,589.95 AUD
SKU: BDS1915FS
Availability: In Stock Pre order Available for Air Freight or Pre-Order
Overview

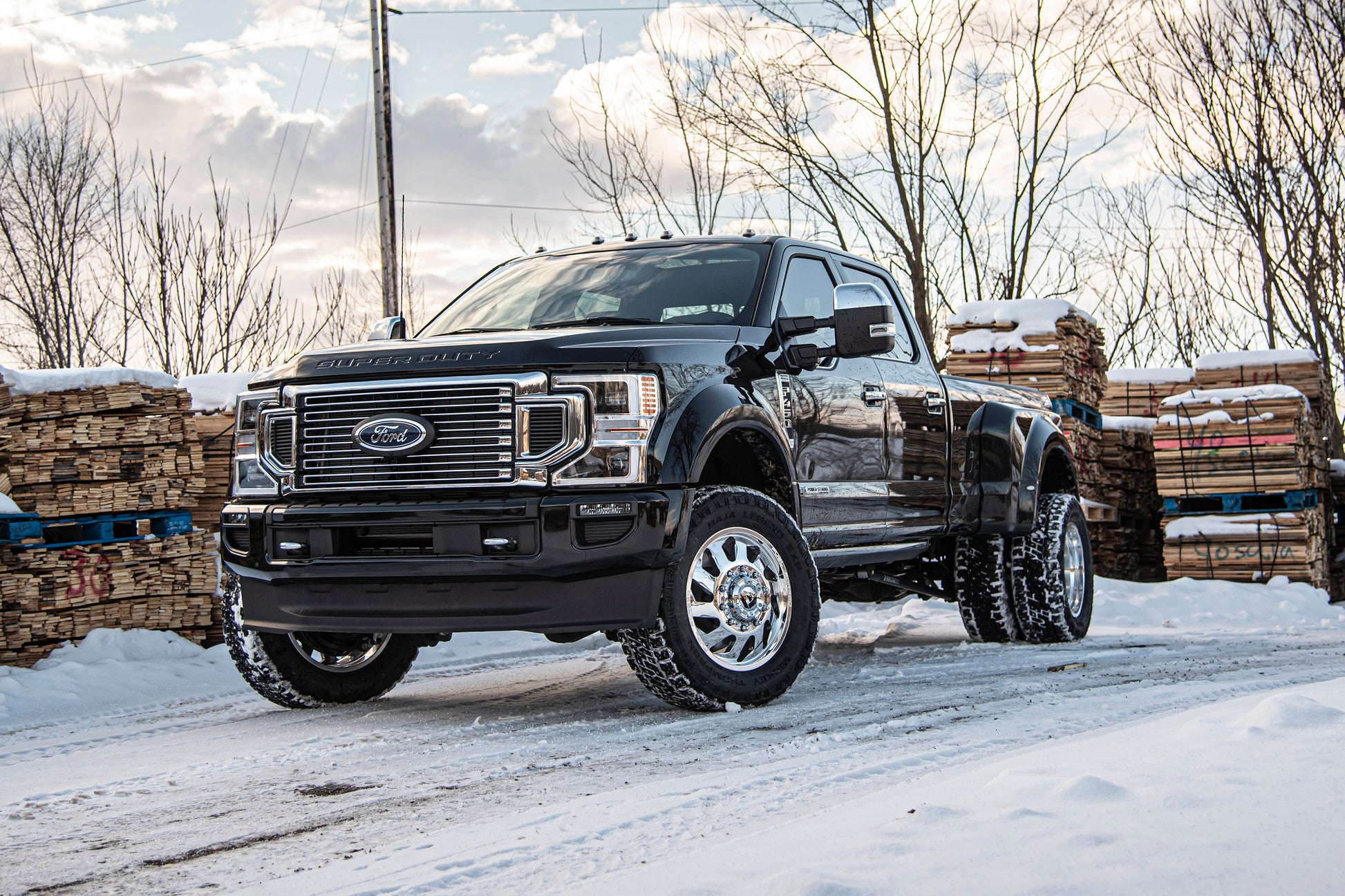

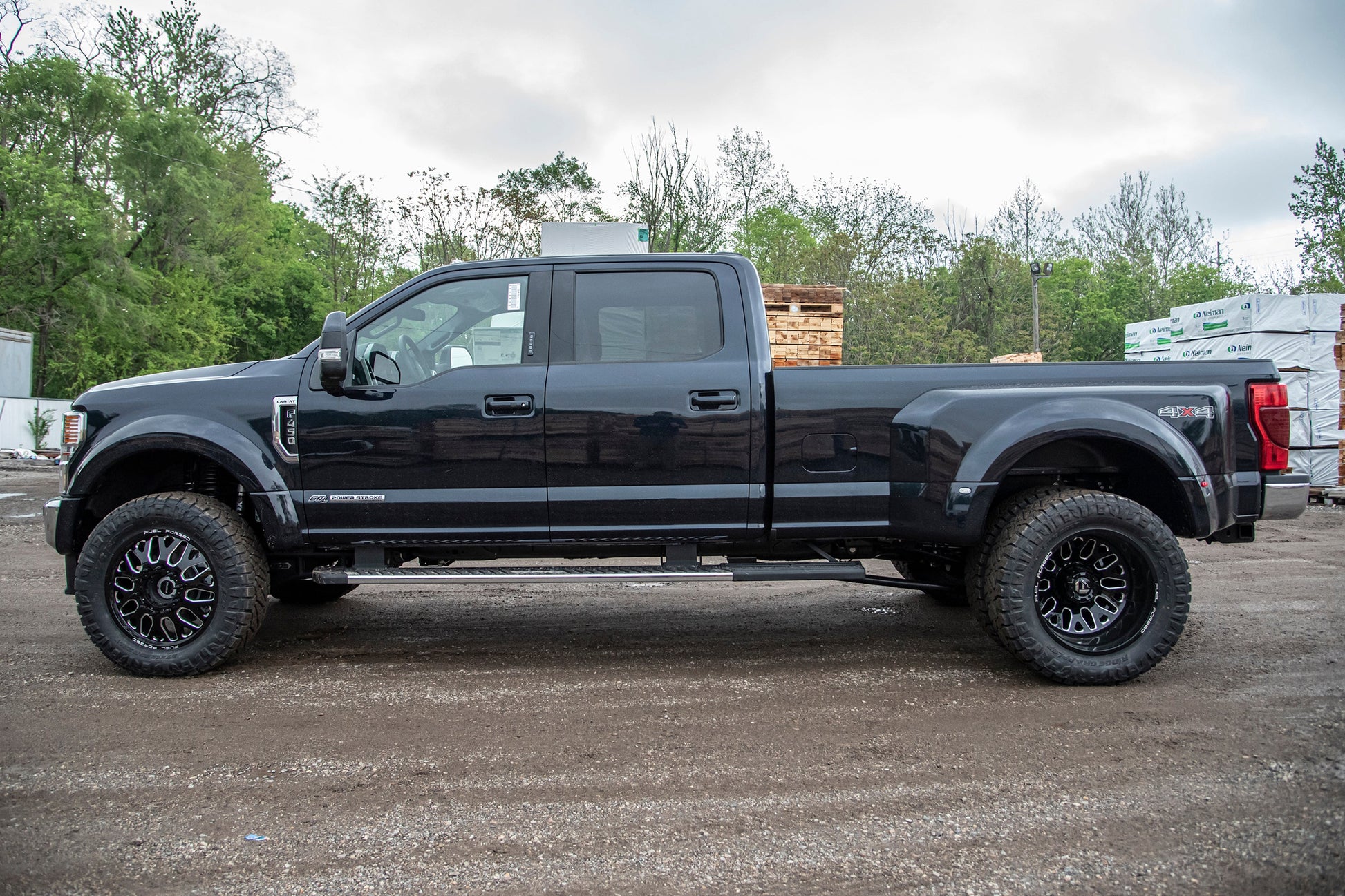

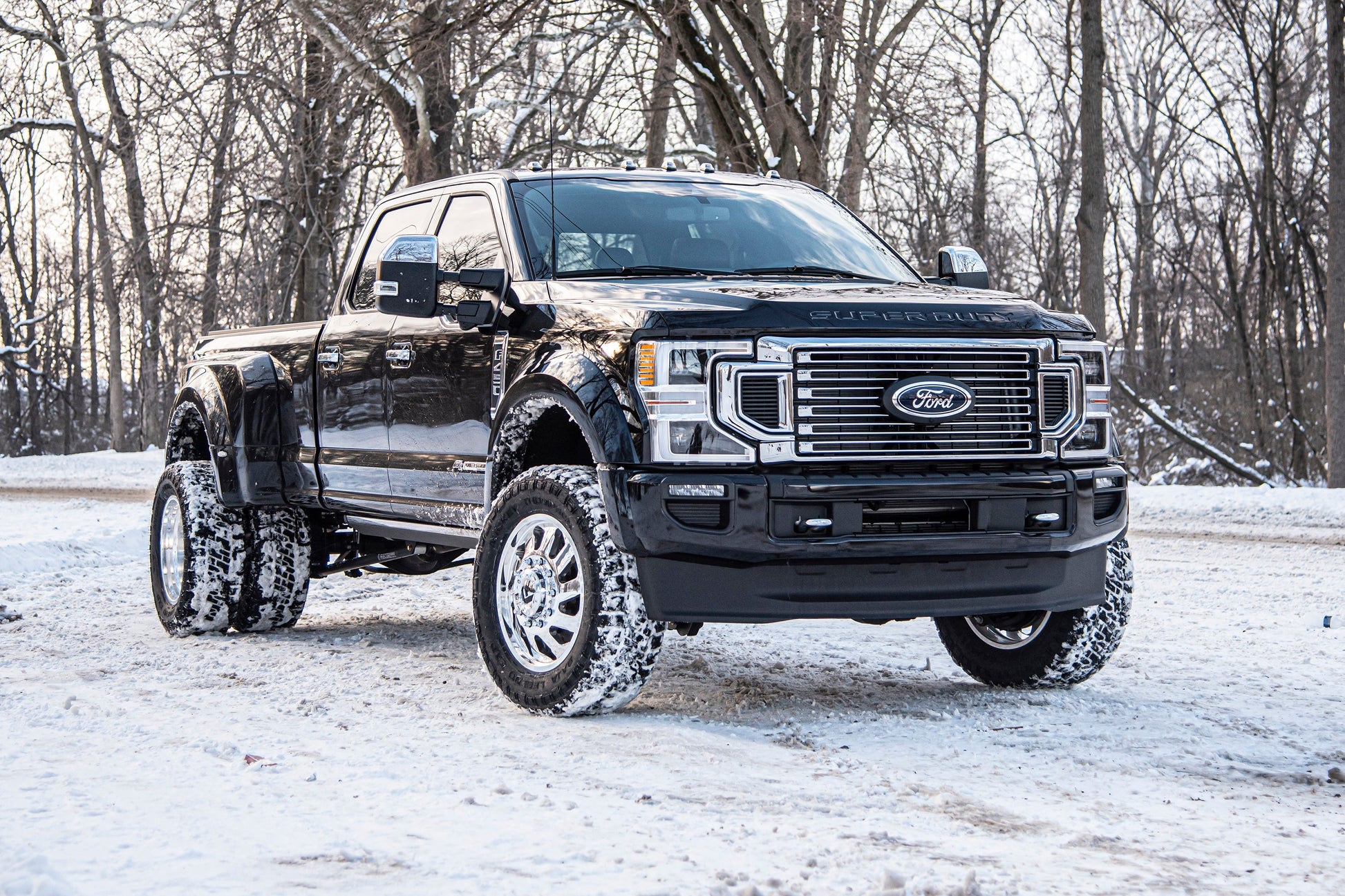

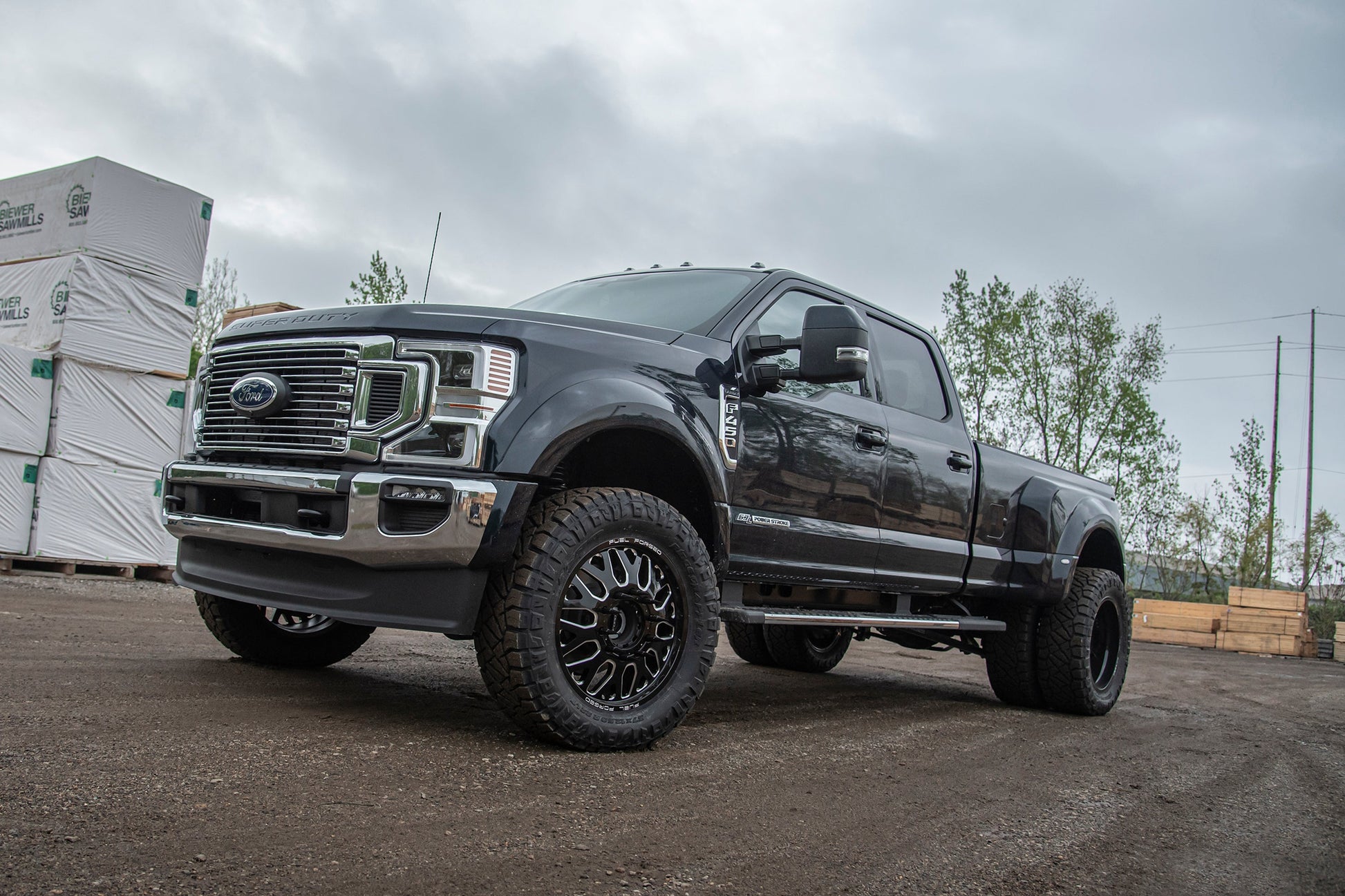

Level out and take your Ford F450 Super Duty diesel or gas powered truck with this 2.5-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

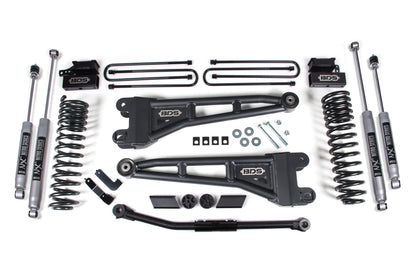

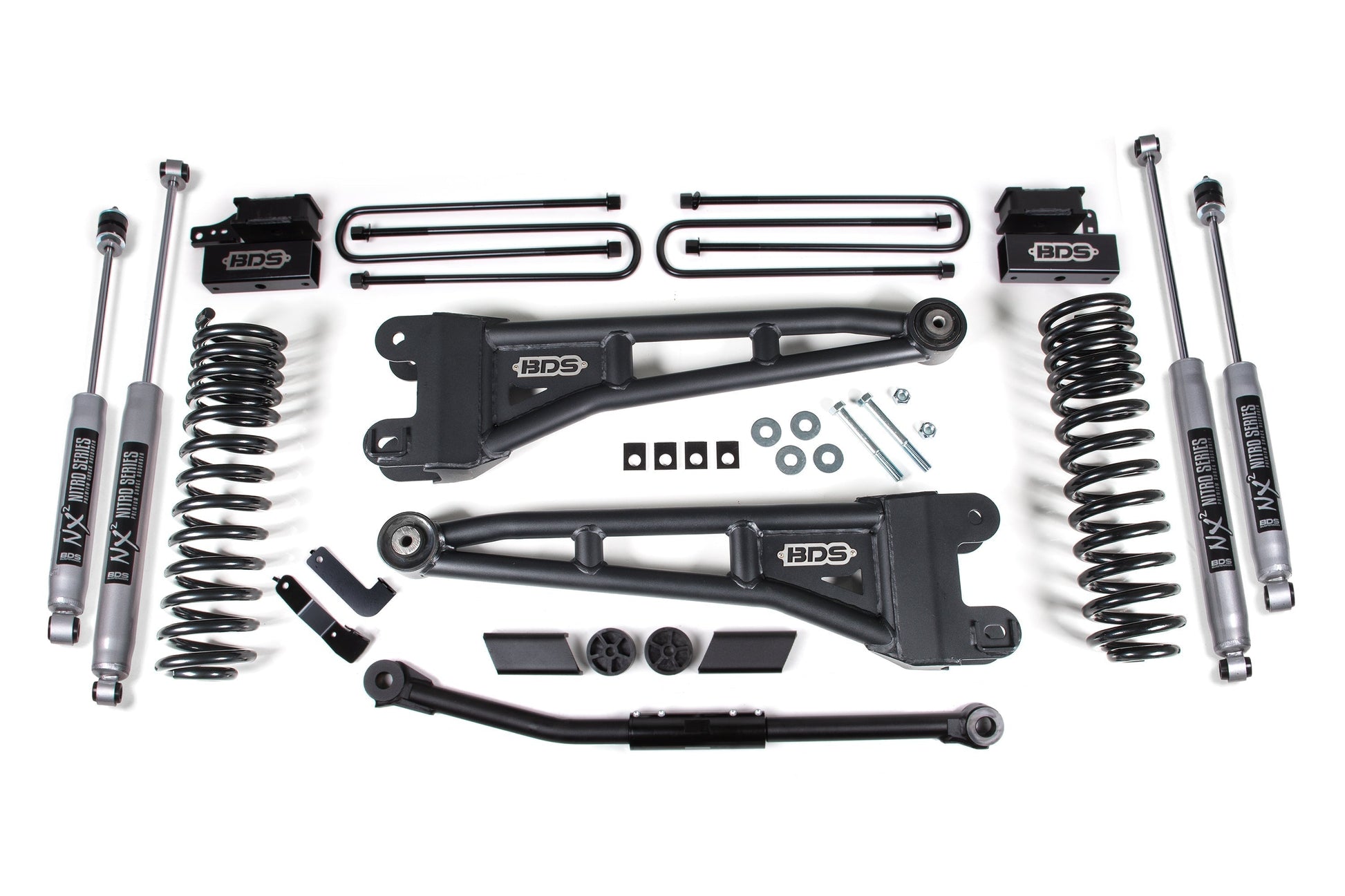

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy duty replacement radius arms, high strength 1-3/8 inch solid steel track bar for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks.

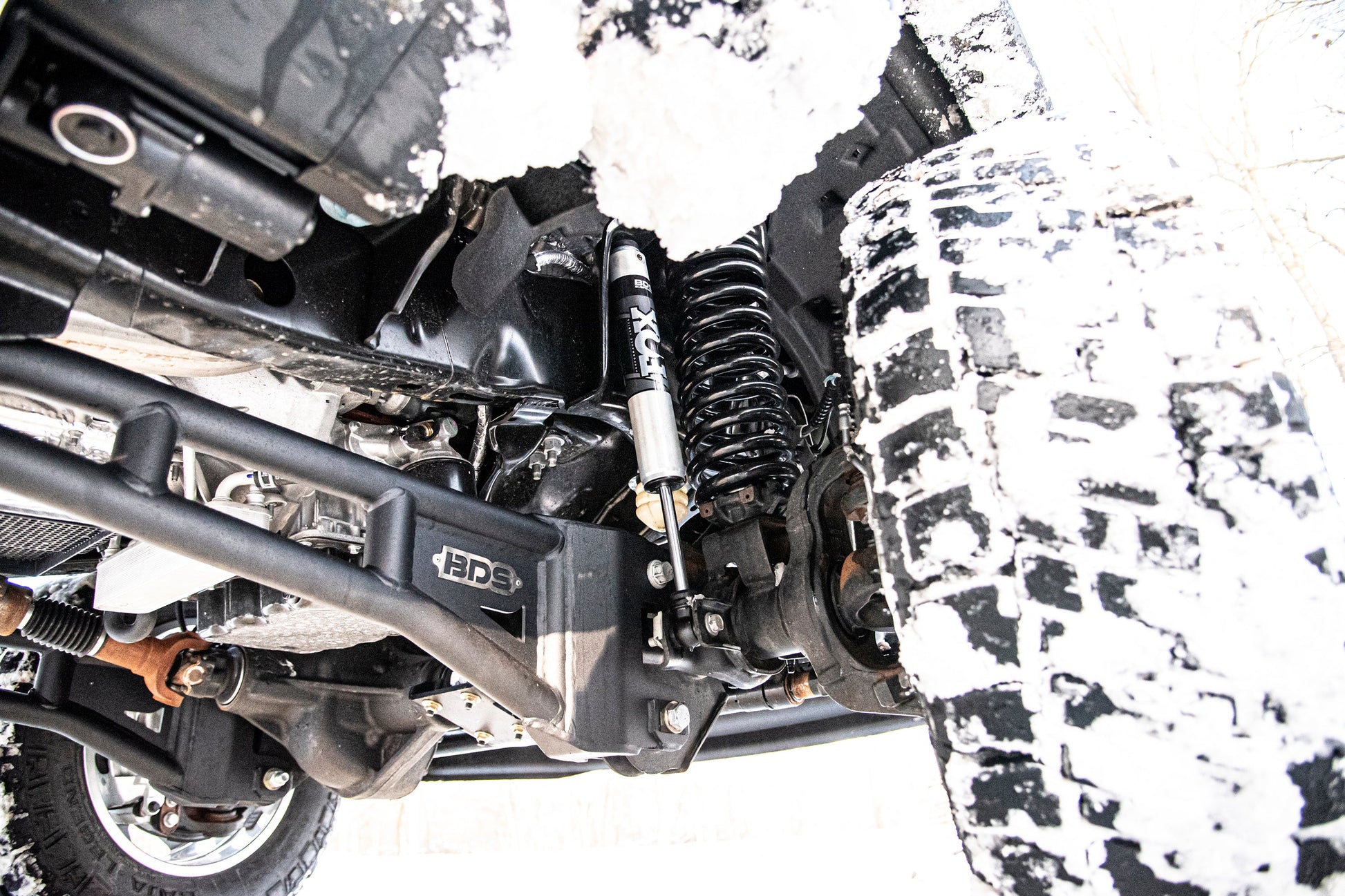

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

HD Adjustable Track Bar

Maintain proper handling and steering geometry with the BDS high strength adjustable track bar that allows you to recenter the front axle at a variety of lift heights. Built from 1-3/8" solid steel stock, the track bar comes pre-assembled with bushings and is ready to bolt into the factory mounting points.

Important Notes
  1. Designed for use on diesel models, but can be installed on gas model trucks (will achieve an additional 1/2" front ride height).
  2. Larger tires on stock wheels are not recommended due to brake line clearance required. Use recommended specifications listed in tire and wheel fitment section.
  3. Installation requires a torque wrench capable of 405 ft-lbs.
  4. Wheel/Tire Specs:
    - Max Tire Size: 35x12.50
    - Front Wheel: 20x8.25, 8.76" BS
    - Rear Outer: 20x8.25, -3.33" BS
    - Rear Inner: 20x8.25, 9.11" BS
Installation
Installation Guide/s: Download Guide

Est. Install Time: 5 hrs

Installation Difficulty:
Moderate

Tools Required: 30mm Socket, Basic Hand Tools, Torque Wrench, Jack / Jack Stands, Pitman Arm Puller
Features
  • Easy, 100% Bolt-on installation
  • Pro-Ride dual rate coil springs ride smooth through any terrain
  • Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
  • Adjustable solid steel track bar designed to recenter the front axle
  • Fabricated steel blocks provide level stance from front to rear
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
