3.5 Inch Lift Kit | FOX Performance Elite Coil-Over | Chevy Silverado or GMC Sierra 1500 (19-24) 4WD

From $8,209.95 AUD

Rear Shock Option: FOX 2.5 Performance Elite

Rear Shock Option: FOX 2.5 Performance Elite
FOX 2.5 Performance Elite
FOX 2.0 Performance Series
$10,879.95 AUD
SKU: BDS755FDSC
Availability: In Stock Pre order Available for Air Freight or Pre-Order
Overview

Up the ante in your Chevy Silverado or GMC Sierra 1500 truck with style and performance by installing this 3.5-inch lift kit featuring FOX Performance Elite 2.5 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires (Chevy) or 33" tires (GMC).

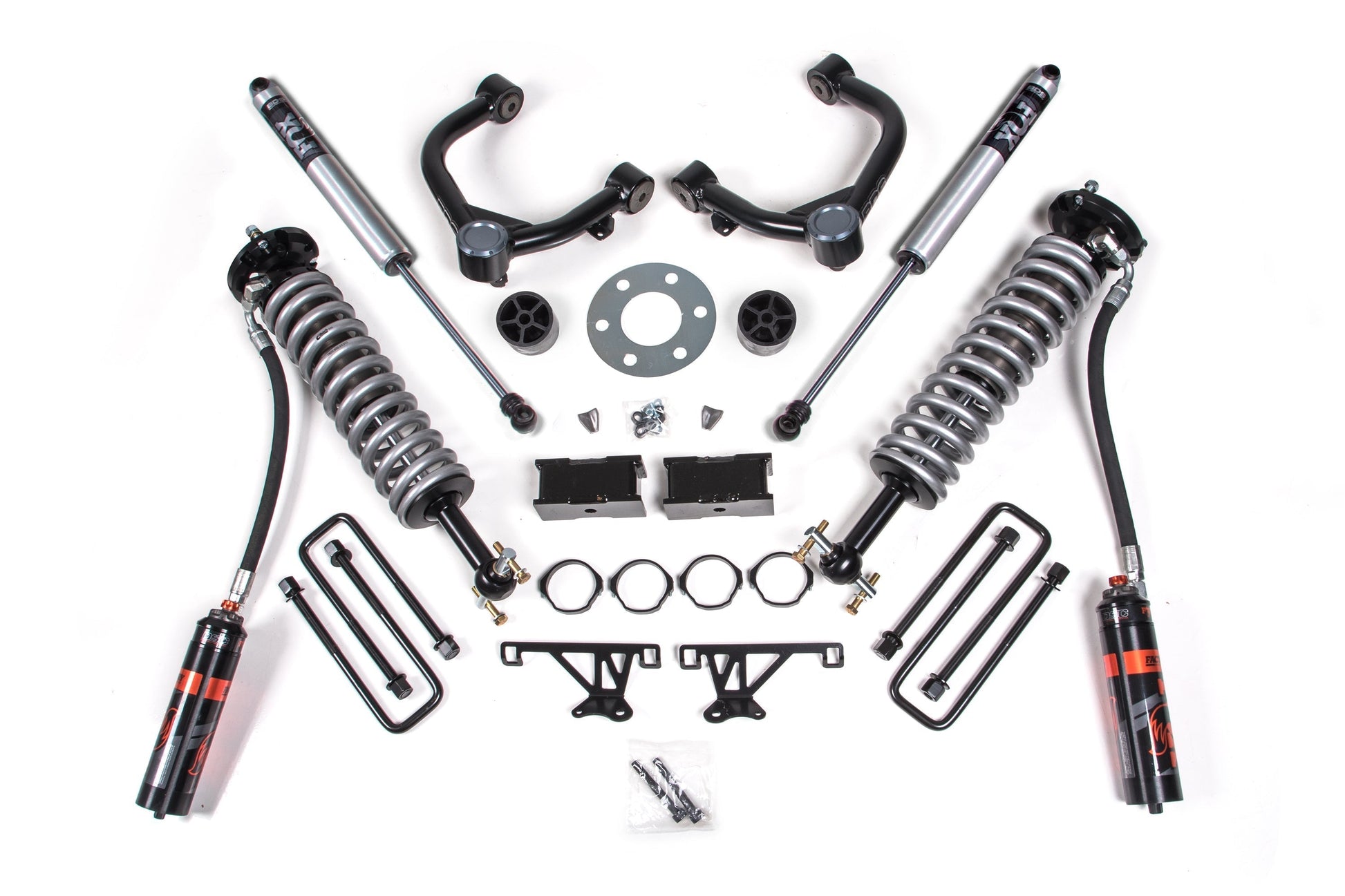

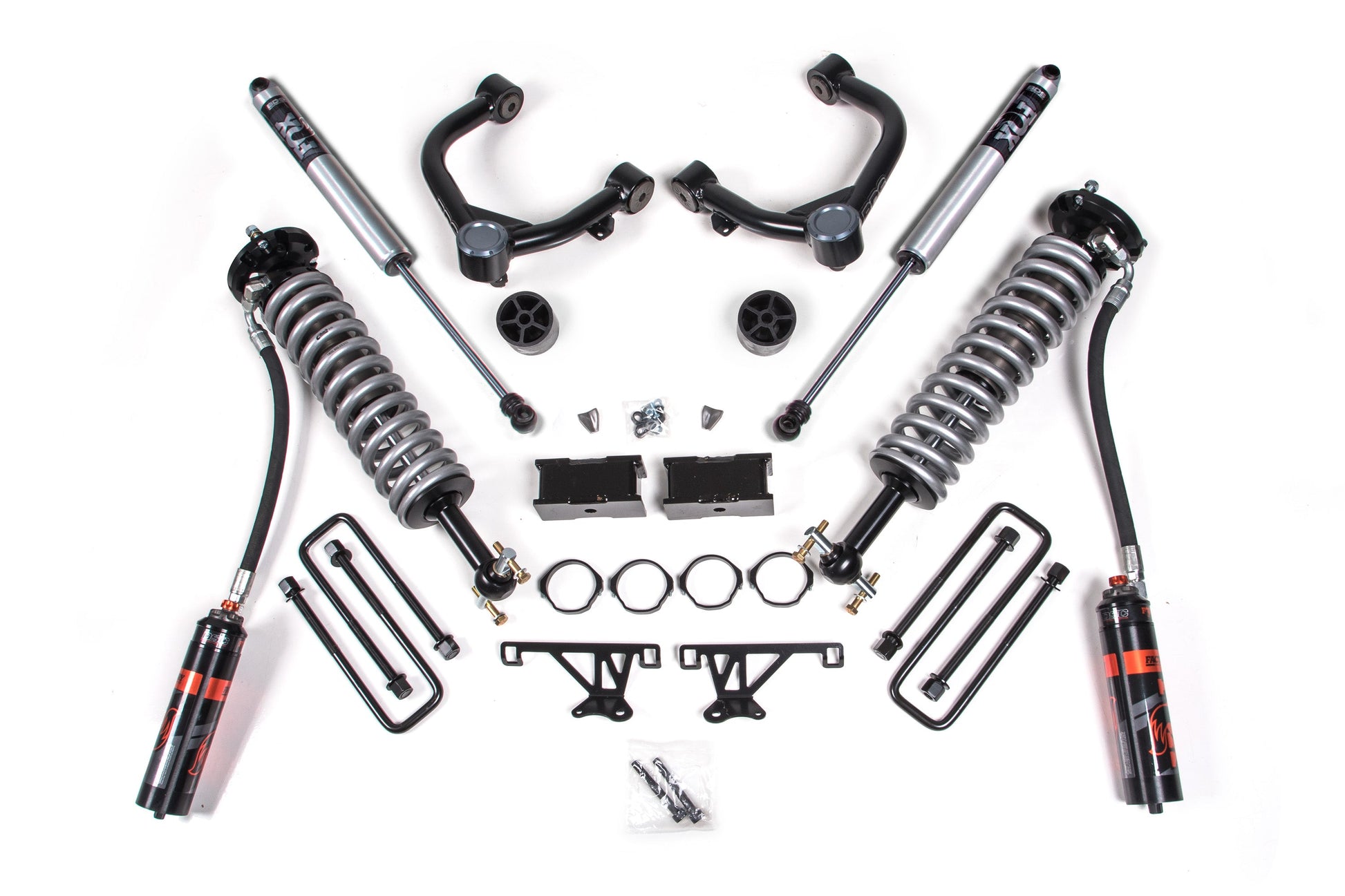

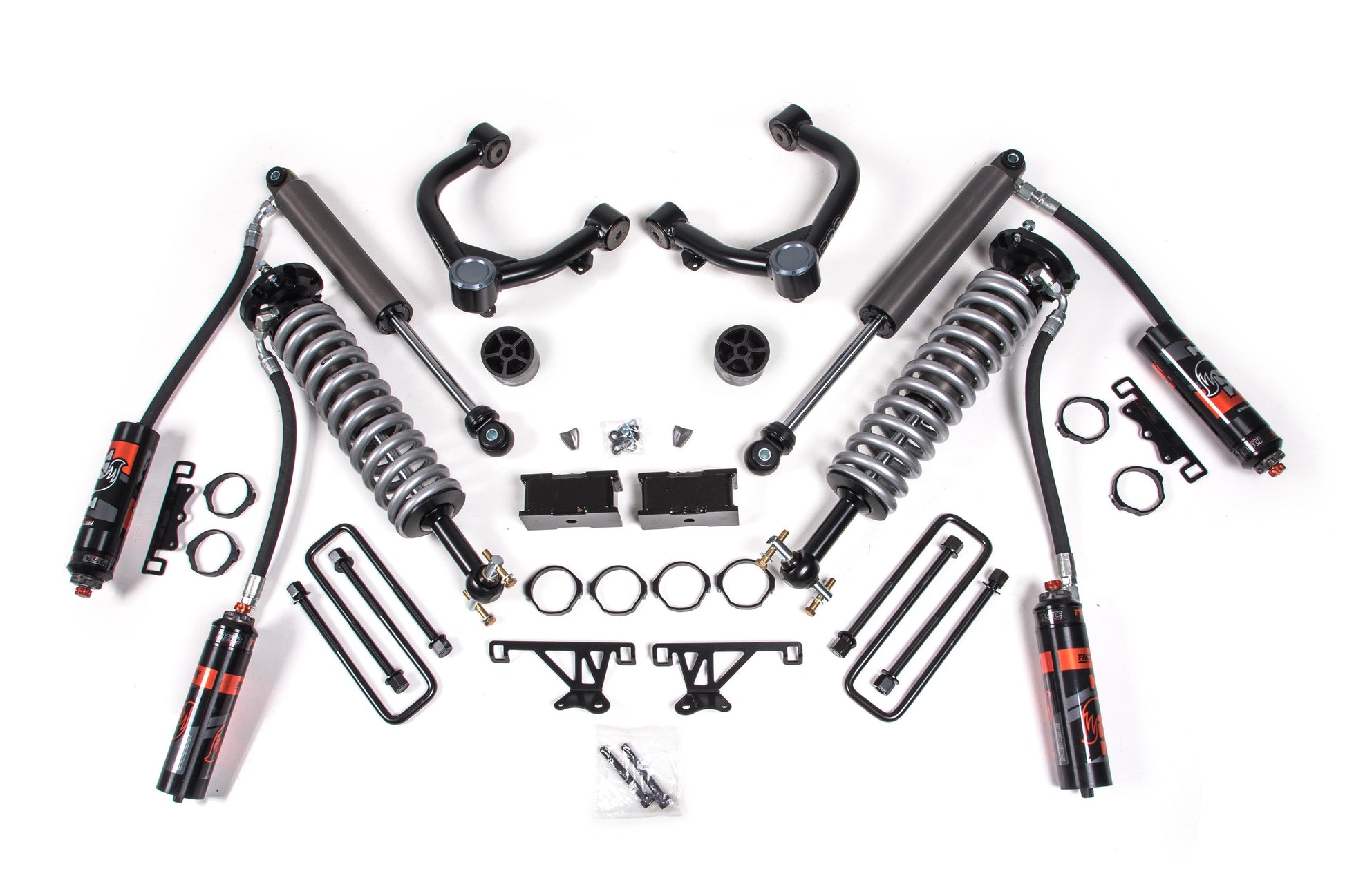

Up front the lift kit includes FOX 2.5 Performance Elite Series remote reservoir coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes fabricated steel lift blocks, longer u-bolts and a complementary set of FOX 2.0 Performance shocks for the smoothest ride.

FOX Performance Elite

FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

HD Upper Control Arms (UCAs)

Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

Important Notes
  1. 5.5" max wheel backspacing can be used
  2. Will fit Trail Boss/AT4 models however will net 1.5" of lift over factory ride height
  3. All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper. Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted in a stock condition
  4. Will NOT fit models with a single leaf spring (monoleaf) rear suspension.
  5. Will not fit models equipped with ARC
  6. 2.7L Turbo models use Diesel kit for proper skid plate fitment.
Installation
Installation Guide/s: Download Guide

Est. Install Time: 4-5 hrs

Installation Difficulty:
Moderate

Tools Required: Cut Off Wheel or Equiv., Ball Joint Separation Tool, Welding Equipment
Features
  • FOX 2.5 Performance Elite coil-overs offer improved damper performance over stock
  • DSC Adjuster allows easy high-speed and low-speed compression tuning for optimal performance in any terrain
  • Performance UCAs increase strength and allow for more suspension travel
  • FOX 2.0 performance series IFP rear shocks included
  • Factory Protection Plus drivetrain warranty included
  • Easy, 100% Bolt on installation
