Designed to improve stance, performance, and capability. BDS Suspension has designed this 3.5-inch lift kit for your 1987-1995 Jeep Wrangler YJ. This kit includes everything necessary to set your truck up right with clearance for up to 33" tires.

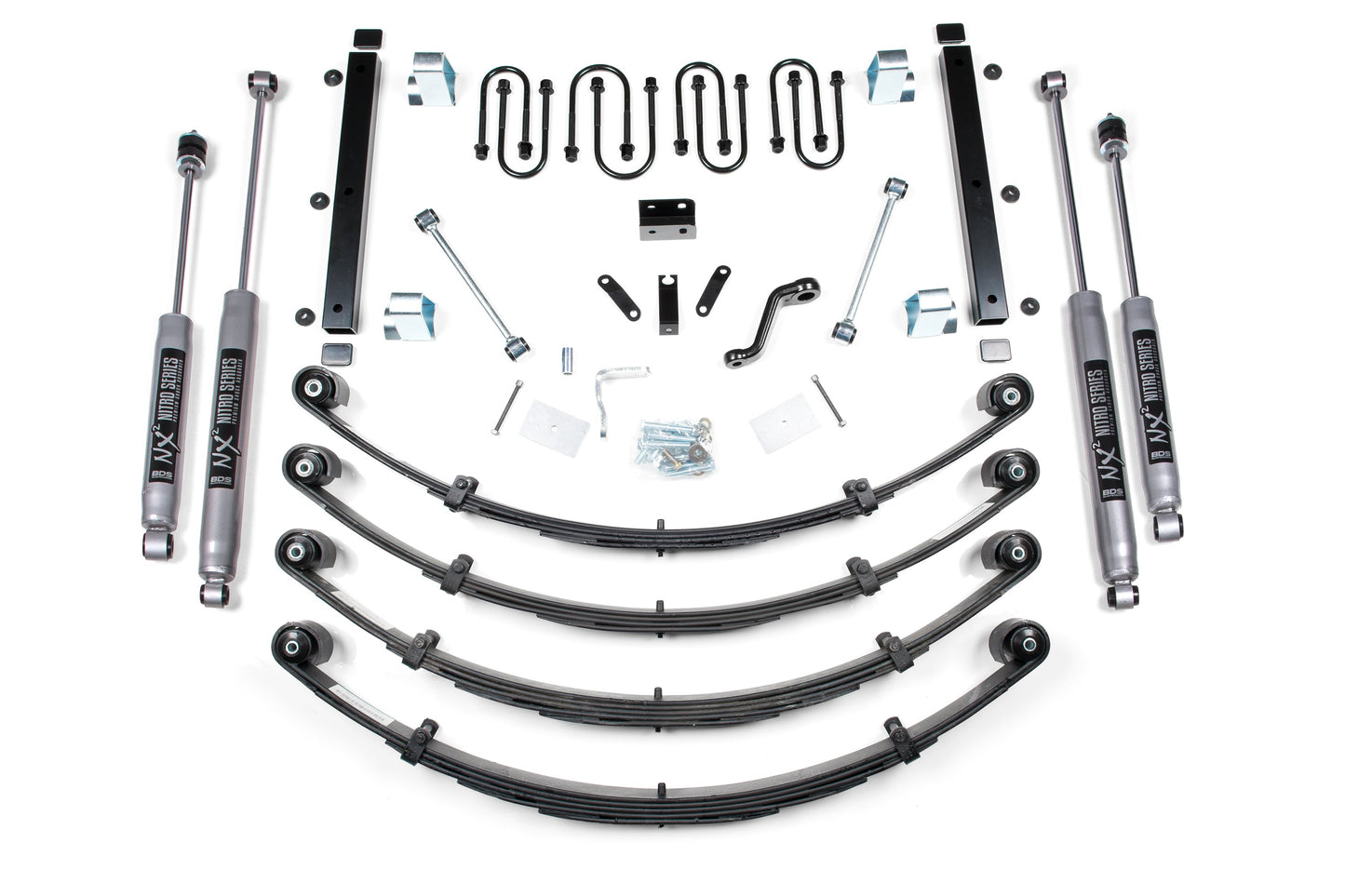

This 3.5-inch lift kit includes front and rear Glide-Ride leaf springs with new u-bolts, front and rear track bar relocation brackets to center the axle, brake line brackets, power steering pitman arm, bump stop extensions, and a transfer case drop kit to ease the drive line angles. Round out this kit with specially tuned NX2 nitro series gas shocks to offer improved damper performance.
Glide-Ride Leaf Springs
Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. These spring feature tapered leafs, anti-friction pads, bolt style leaf alignment clamps and a full military wrap to protect your spring eyes from the rocks. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.
May require driveshaft lengthening for 13" (u-joint to u-joint) driveshaft.
May require larger diameter driveshaft if equipped with a 41-1/2" front driveshaft.
Extended shackles recommended to clear military wrap.
Models with accessories like hardtop, rear tire carrier, roof rack etc., should use #004351 springs on front and rear.
When combining lifted shackles with a 3.5" suspension system, a tail shaft eliminator kit and a "CV" style rear driveshaft may be required to eliminate driveline vibration.
Pitman arms will NOT fit Yj models equiped with manual steering.
