3 Inch Lift Kit | FOX 2.5 Performance Elite Coil-Over | Ram 1500 (19-24) 4WD

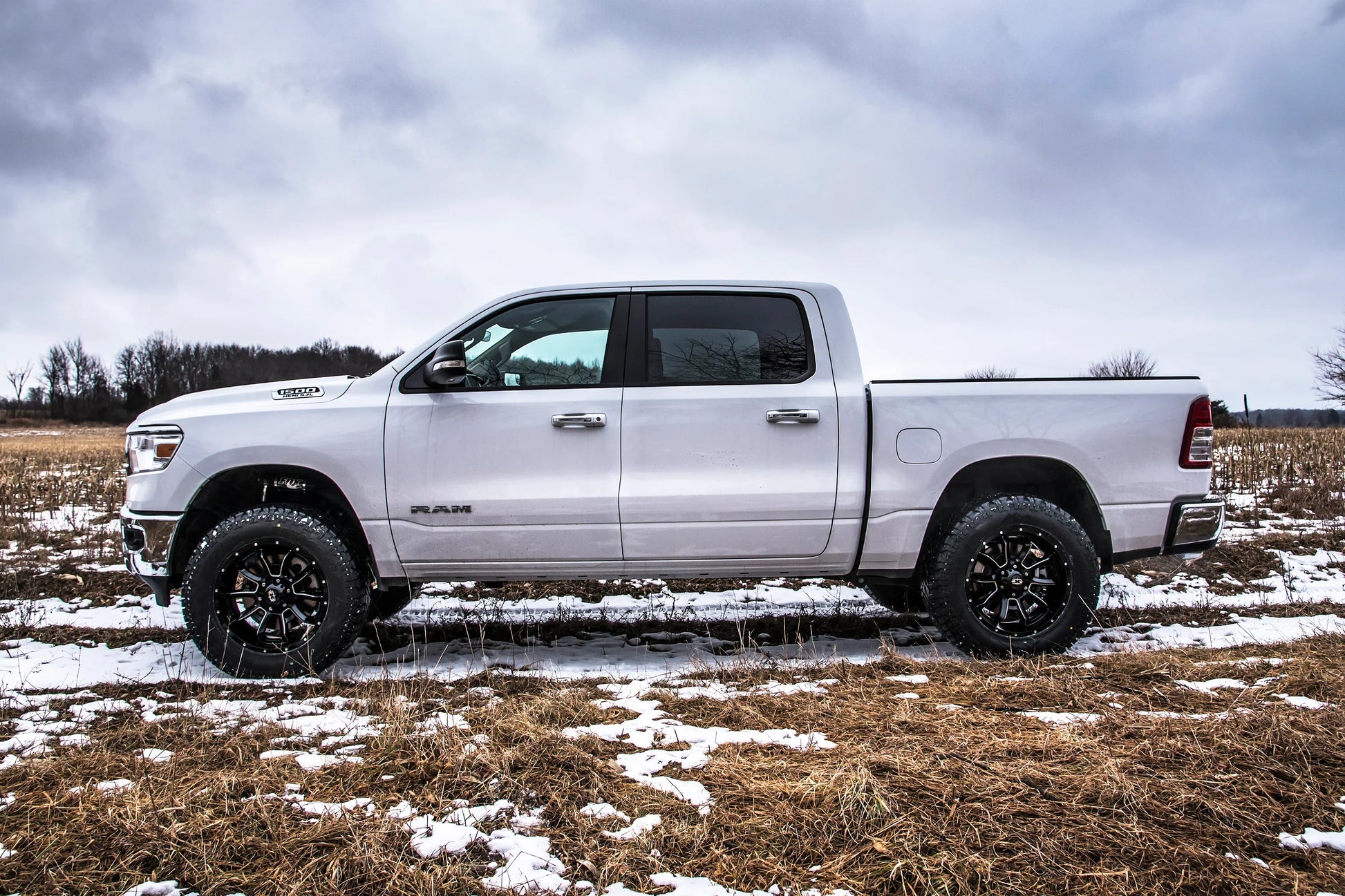

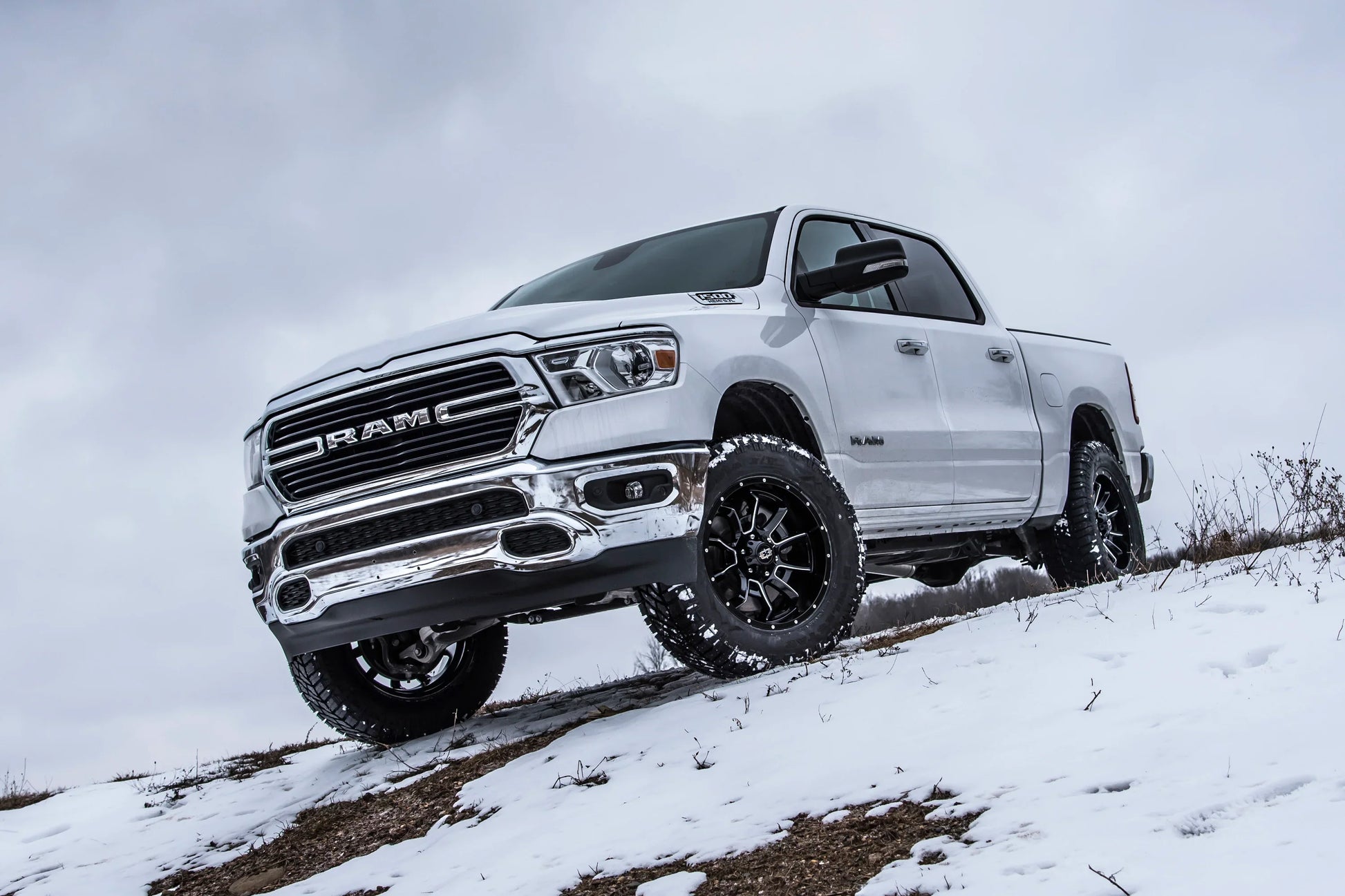

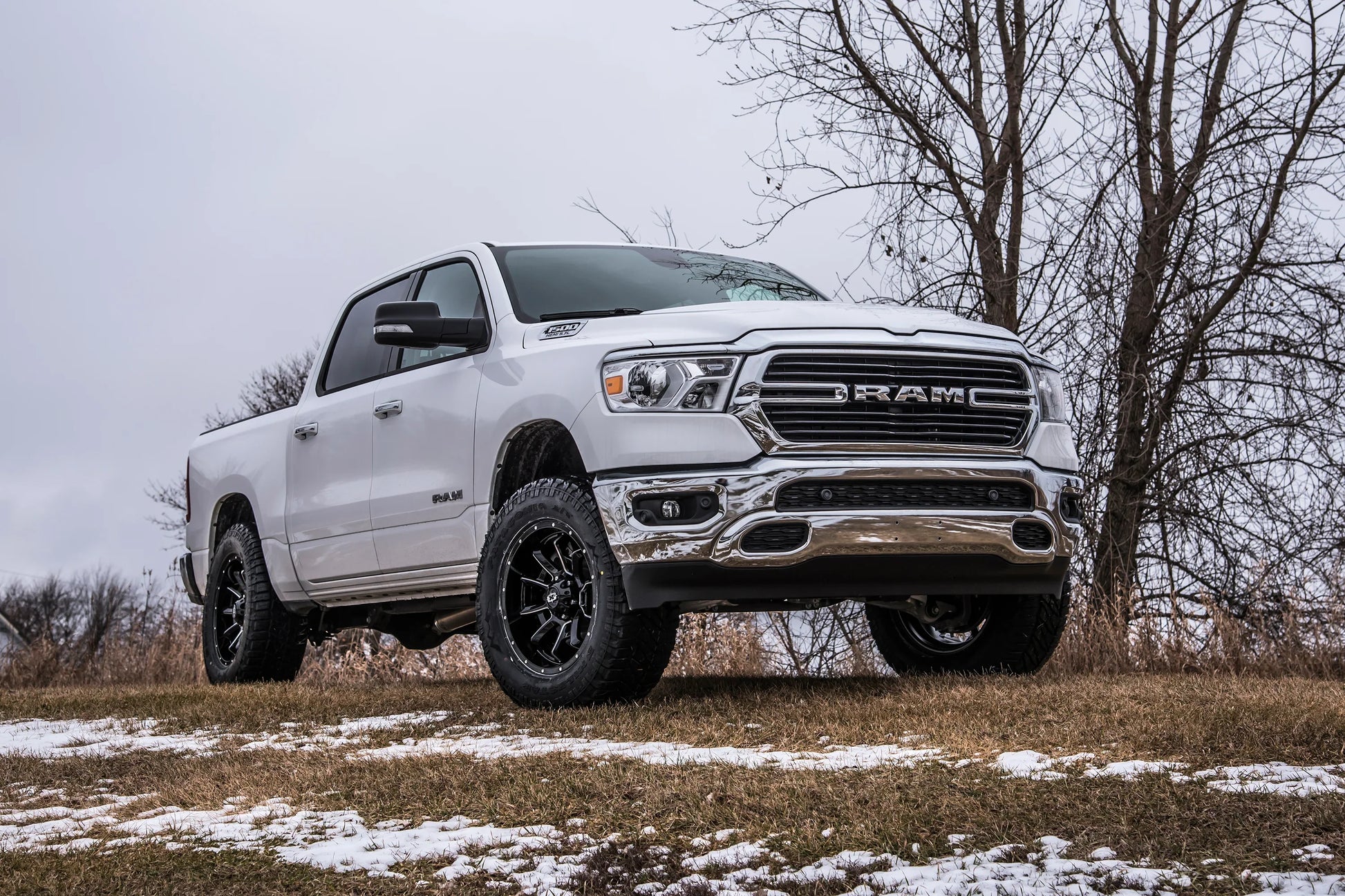

Up the ante in your 2019-2024 RAM 1500 4WD truck with style and performance by installing this 3-inch lift kit featuring FOX Performance Elite 2.5 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires.

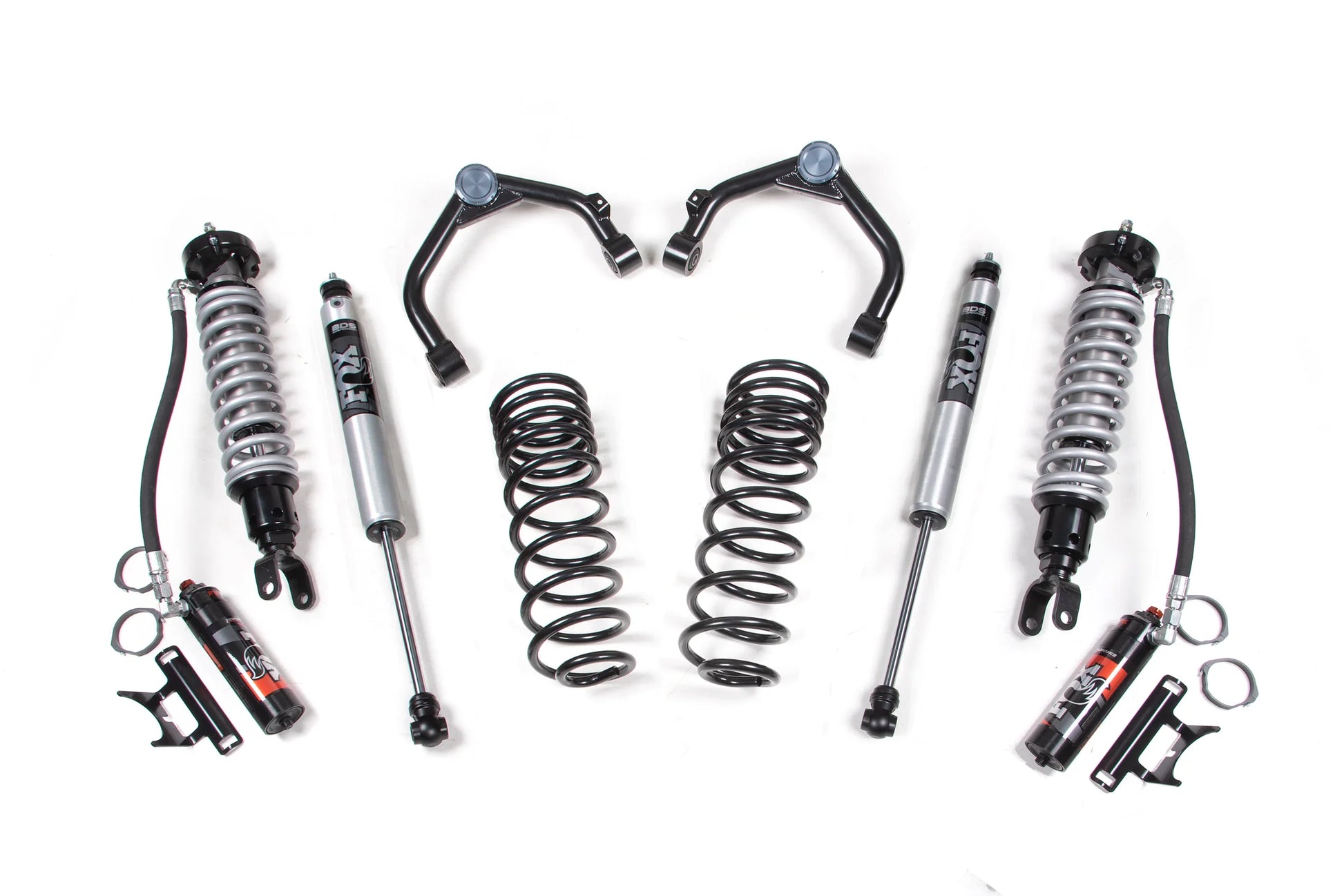

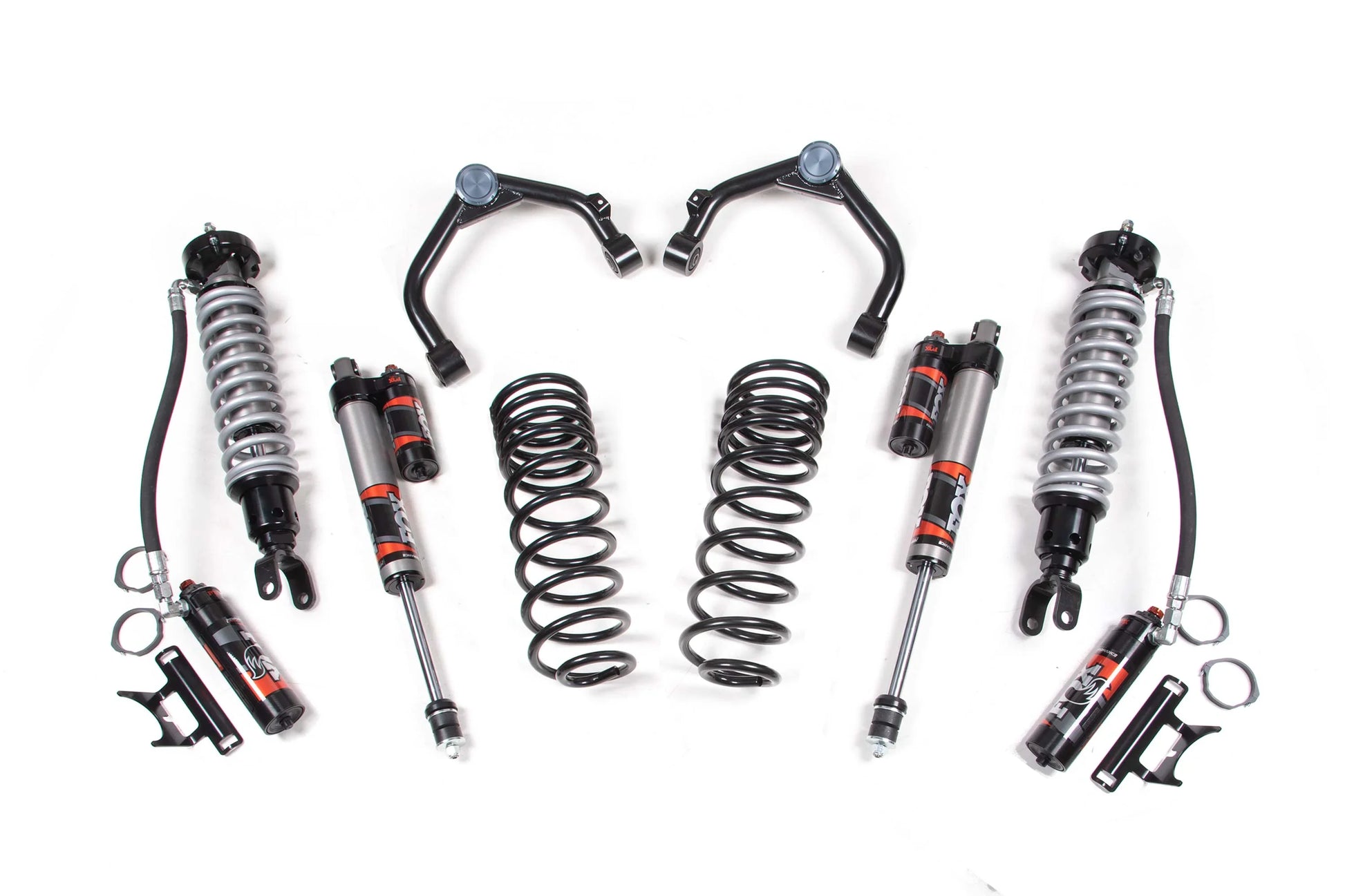

Up front the lift kit includes FOX 2.5 Performance Elite Series remote reservoir coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear the stance is leveled out with a pair of 1.5" dual rate coil springs designed for exceptional ride quality and additional load capacity over stock. Your choice of rear FOX 2.0 Performance Series IFP gas shocks or upgrade FOX 2.5 Performance Elite Series DSC reservoir shocks are offered to match the front for next level performance and easy tuning to meet the demands out on the trail.

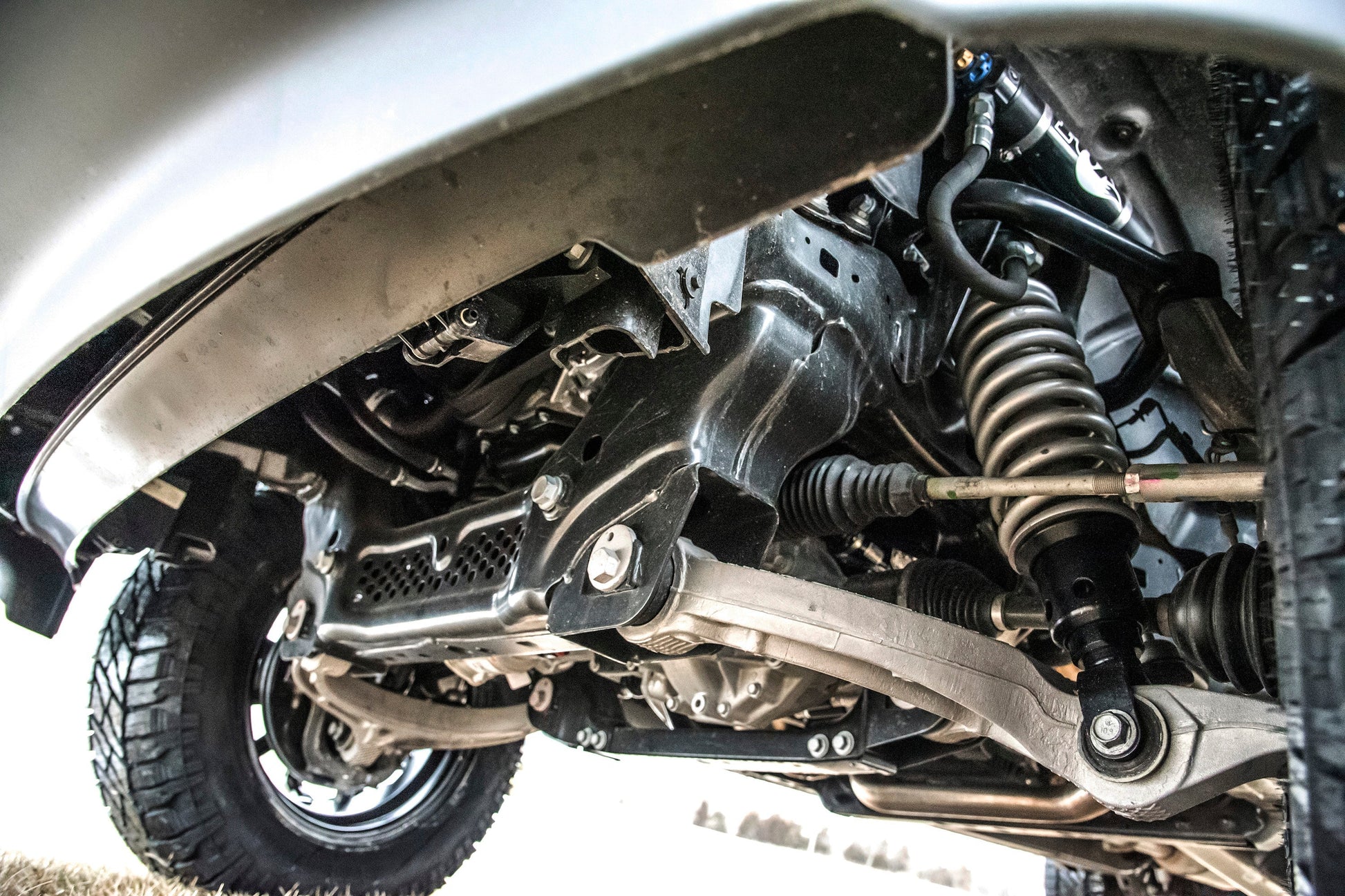

FOX Performance Elite
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
HD Upper Control Arms (UCAs)
Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.
- Will not work with stock rims with a 12.50" wide tire, the tire will rub the UCA at full steering lock. If the stock rim is reinstalled it will need to be with the stock-size tire ONLY!
- The ball joint used is 500-1134, use this for replacement purposes if a new ball joint is ever needed. The ball joint is directional and must be installed with the 'dot' facing either inward or outward on the vehicle, otherwise, damage may occur
- Vehicles equipped with Offroad or Rebel Package will not achieve the full 3" of lift, net ride height change will be around 2" above stock.
Est. Install Time: 3-4 hrs
Installation Difficulty: Easy
Tools Required: Torque Wrench, Ball Joint Separation Tool
- FOX 2.5 Performance Elite coil-overs offer improved damper performance over stock
- DSC Adjuster allows easy high-speed and low-speed compression tuning for optimal performance in any terrain
- Performance UCAs increase strength and allow for more suspension travel
- FOX 2.0 performance series IFP rear shocks included
- Factory Protection Plus drivetrain warranty included
- Easy, 100% Bolt on installation
