4.5 Inch Lift Kit | FOX 2.5 Coil-Over | Toyota Tundra (07-15) 2/4WD

$10,589.95 AUD

Coil Over Option: FOX 2.5 Coil-Overs with DSC Adjuster

Coil Over Option: FOX 2.5 Coil-Overs with DSC Adjuster
FOX 2.5 Coil-Overs with DSC Adjuster
SKU: BDS814FDSC
Availability: In Stock Pre order Available for Air Freight or Pre-Order
Overview

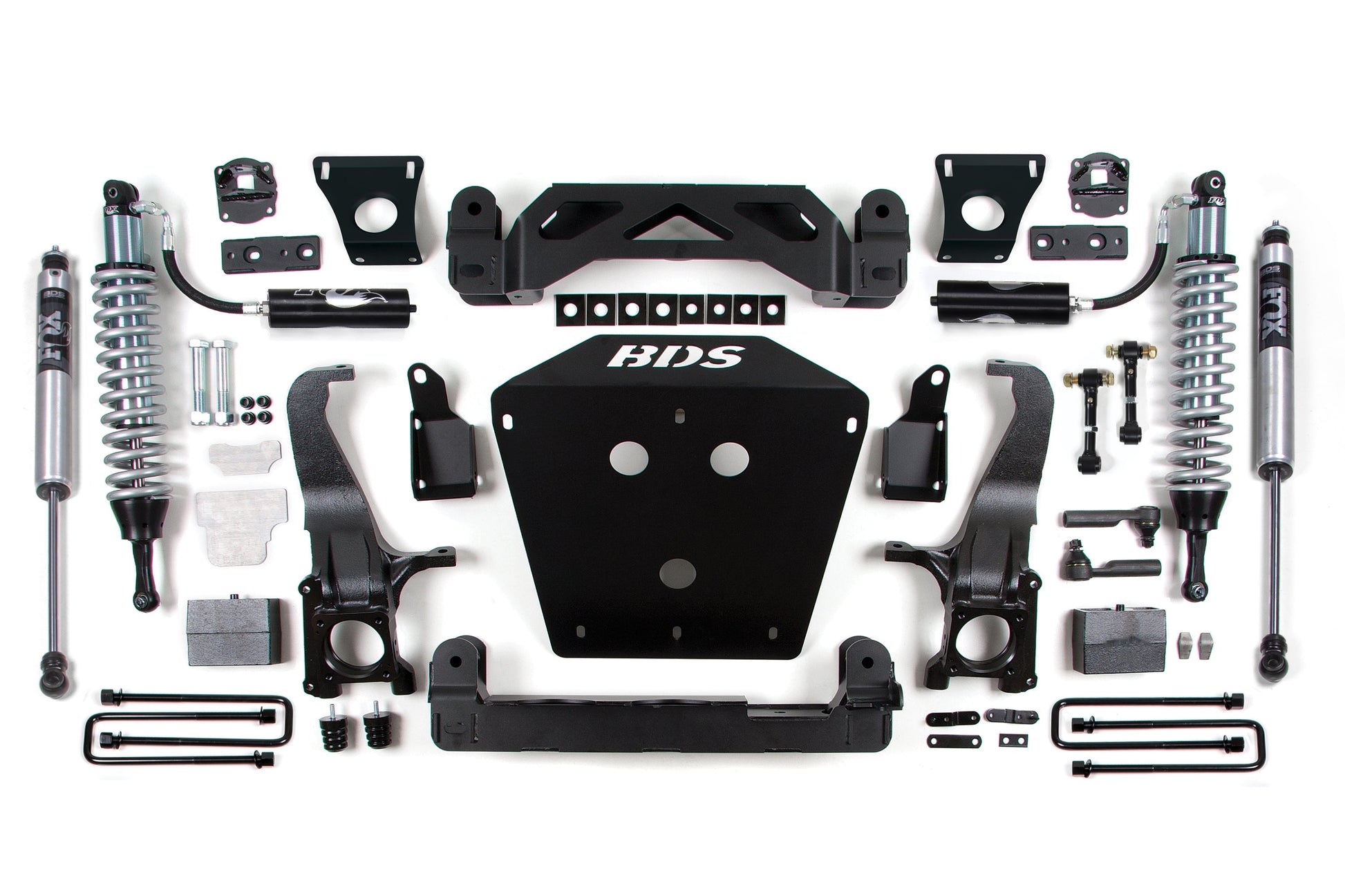

Take your 2007-2015 Toyota Tundra 4WD truck to the next level with a 4.5-inch suspension lift kit with FOX 2.5 Coil-Over shocks by BDS Suspension. These kits feature proprietary FOX 2.5 coil-over shocks designed specifically to bolt-on performance for increased travel and the ability to soak up the roughest terrain along with smooth on-road comfort. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes FOX 2.5 Factory Series Coil-Over shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles utilizing replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear, this kit utilizes heavy duty cast steel lift blocks, brake line bracket and longer u-bolts. The rear of this kit is rounded out with specially tuned FOX 2.0 IFP performance series gas shocks to offer improved damper performance.

FOX 2.5 Coil-Overs

FOX 2.5 coil-overs offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter coil-overs are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain.

DSC Adjustment

FOX 2.5 coil-overs are available with optional DSC (dual speed compression) adjustment to tune the high-speed and low-speed compression damping allowing for added control on-road with the ability to easily dial in more aggressive damping offroad. Tuning is a simple twist of the two clearly defined knobs with immediate feedback to dial it in for any terrain.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Important Notes
  1. Requires frame bracket modification and welding.
  2. No strut dissassembly required.
  3. Stock 18" wheels can not be installed. factory 20" wheels with more than 6.25" backspacing can not be installed.
  4. Models with two piece rear drive line would require rear drive shaft modification.
  5. When kit is installed on 2WD models, the differential brackets will not be used.
  6. ***Will work with Bilstein (yellow) factory front struts on 2014-2015 models.***
  7. Models equipped with 6 piston calipers will require clearance machining on the caliper near the bolt holes on the mounting surface.
Installation
Installation Guide/s: Download Guide

Est. Install Time: 8 hrs

Installation Difficulty:
Moderate

Tools Required: Reciprocating Saw, Strut Compressor, Welding Equipment
Features
  • FOX 2.5 Factory Race series coilovers for improved ride quality, performance, and capability
  • High clearance crossmember design maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • FOX performance series IFP gas rear shocks to improved ride and offroad performance
  • Factory Protection Plus drivetrain warranty included
