4 Inch Lift Kit | Chevy/GMC 3/4 Ton Truck/Suburban (73-76) 4WD

From $1,969.95 AUD

Rear Lift Option: 4 Inch Block Kit

Rear Lift Option: 4 Inch Block Kit
4 Inch Block Kit
4 Inch Block Kit with Add-A-Leaf
Leaf Springs

Shock Option: FOX 2.0 Performance Series

Shock Option: FOX 2.0 Performance Series
FOX 2.0 Performance Series
NX2 Nitro Series
$3,299.95 AUD
SKU: BDS110FS
Availability: In Stock Pre order Available for Air Freight or Pre-Order
Overview

Take your 1973-1976 Chevy and GMC 3/4 ton truck or SUV to the next level with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability of the K20 and K25, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

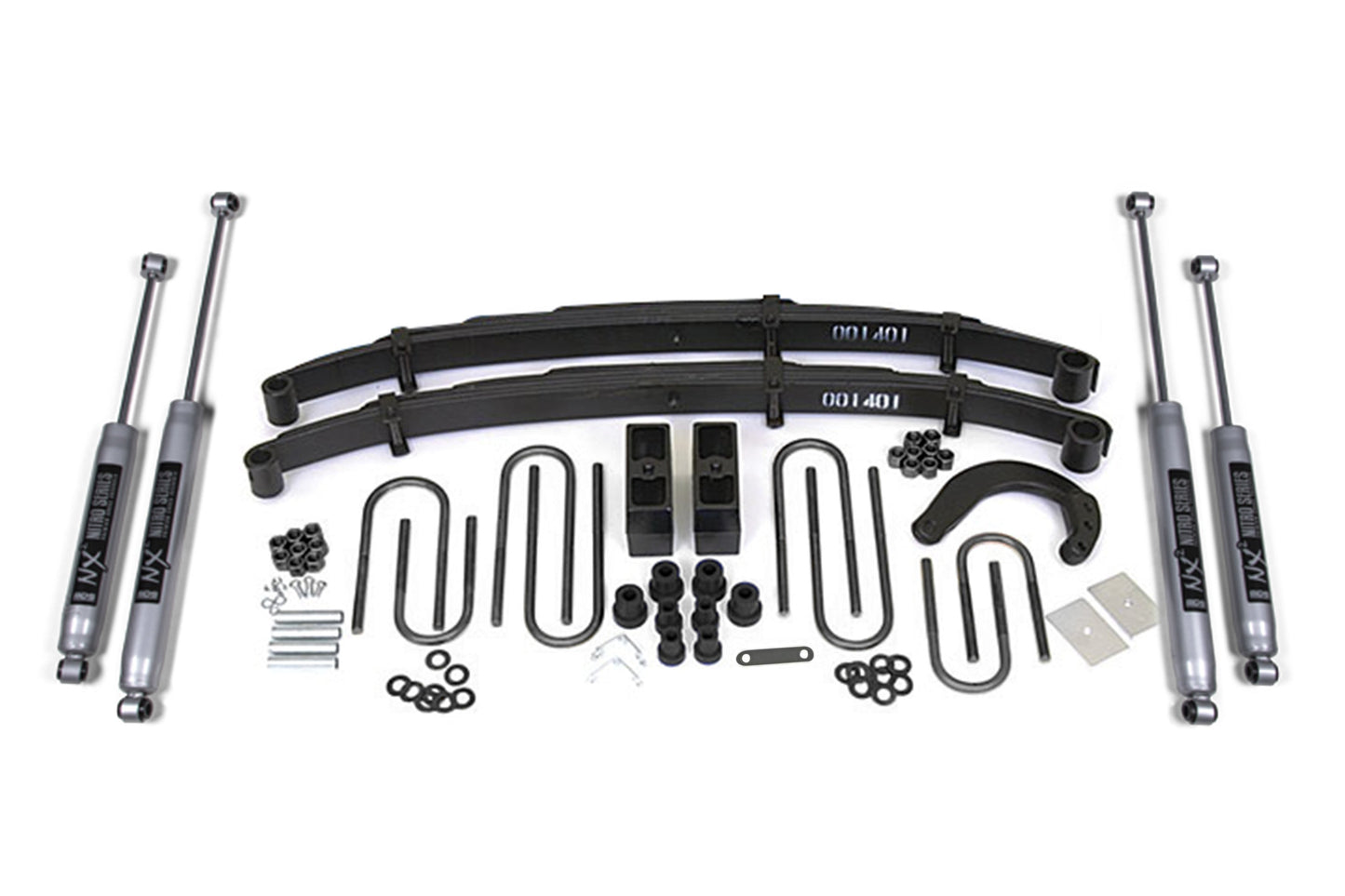

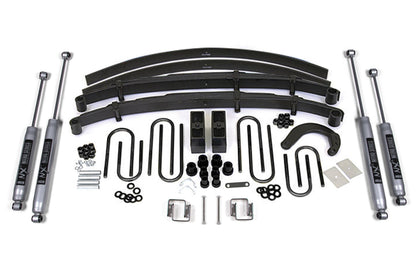

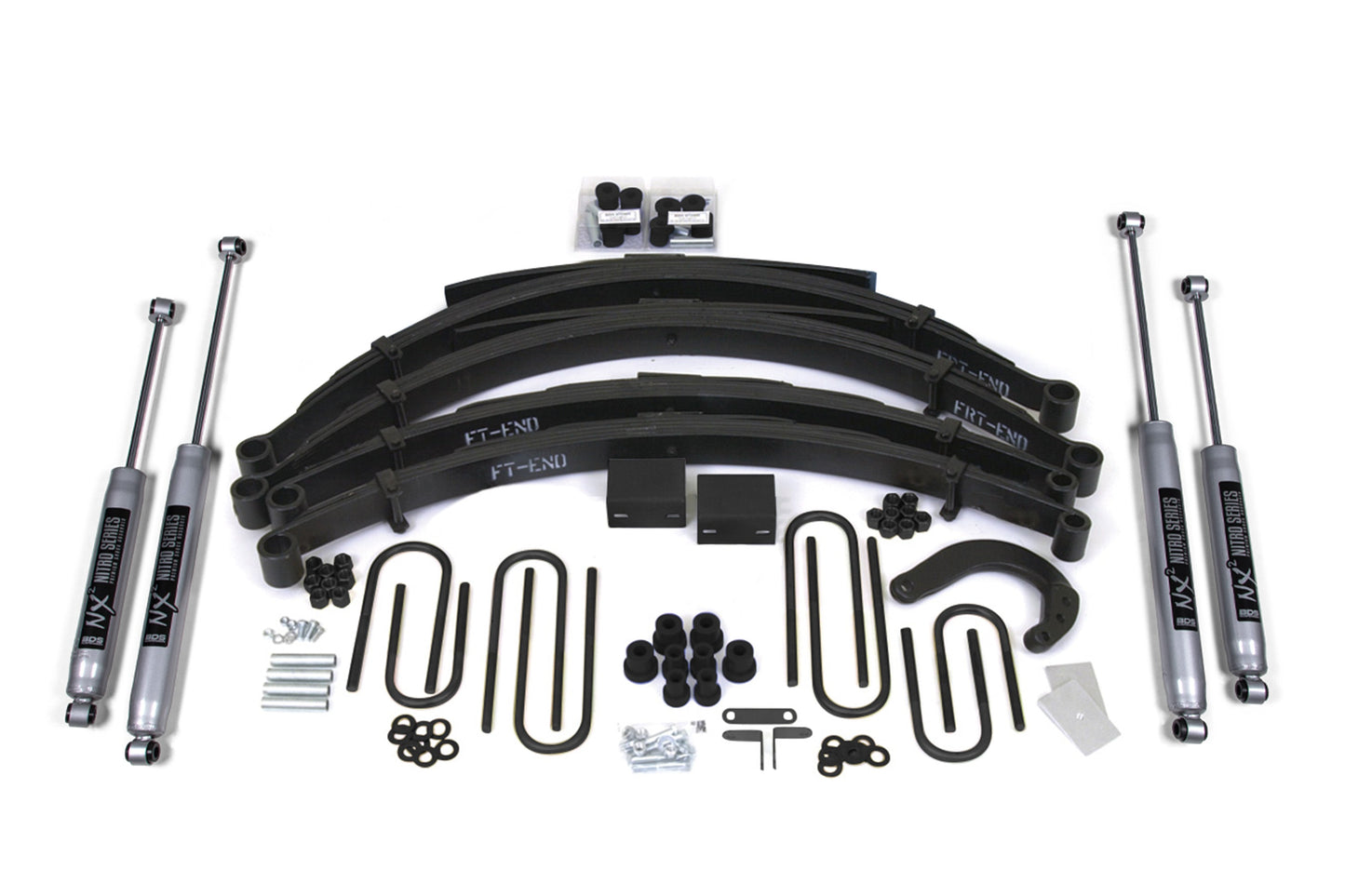

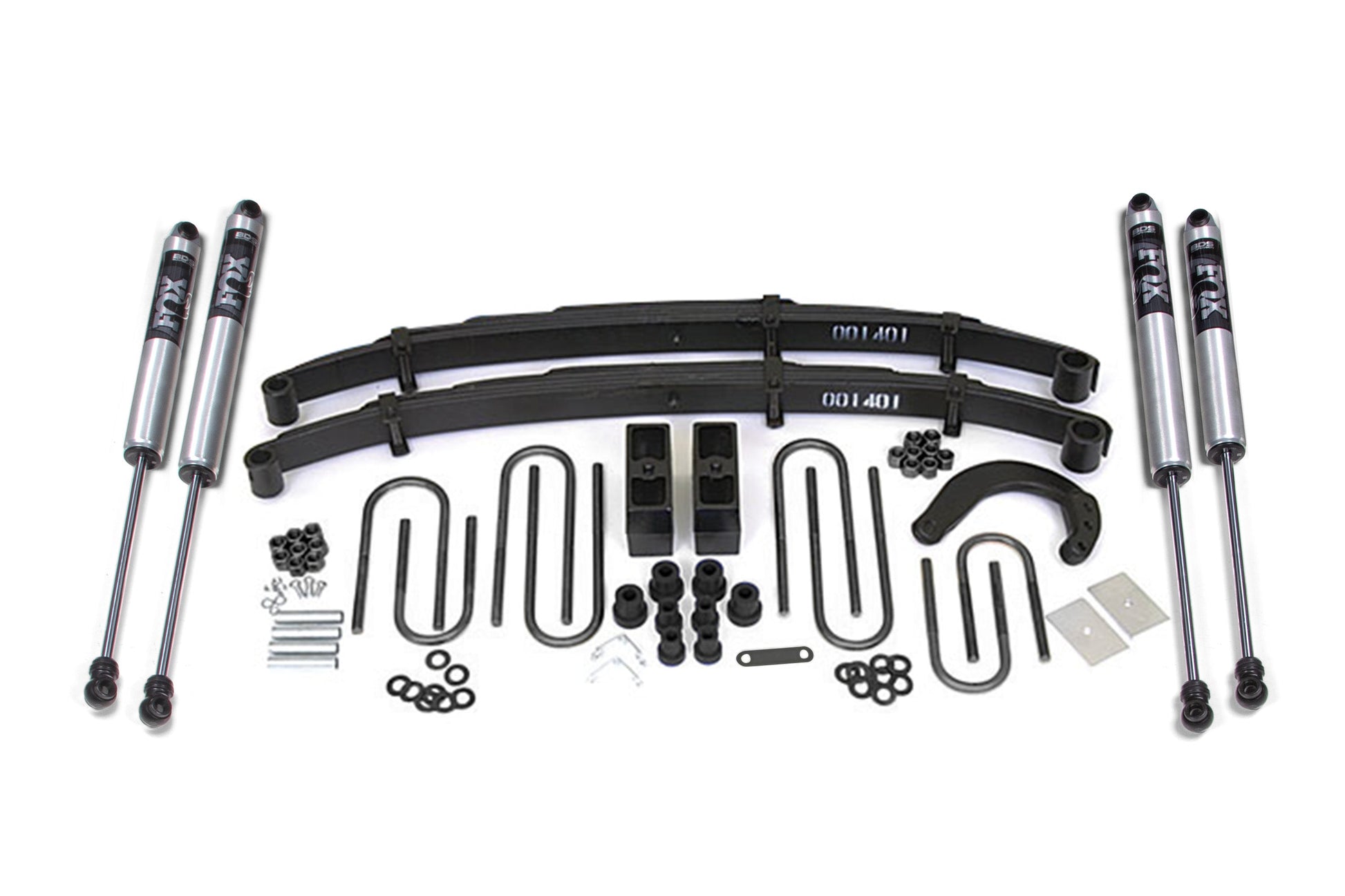

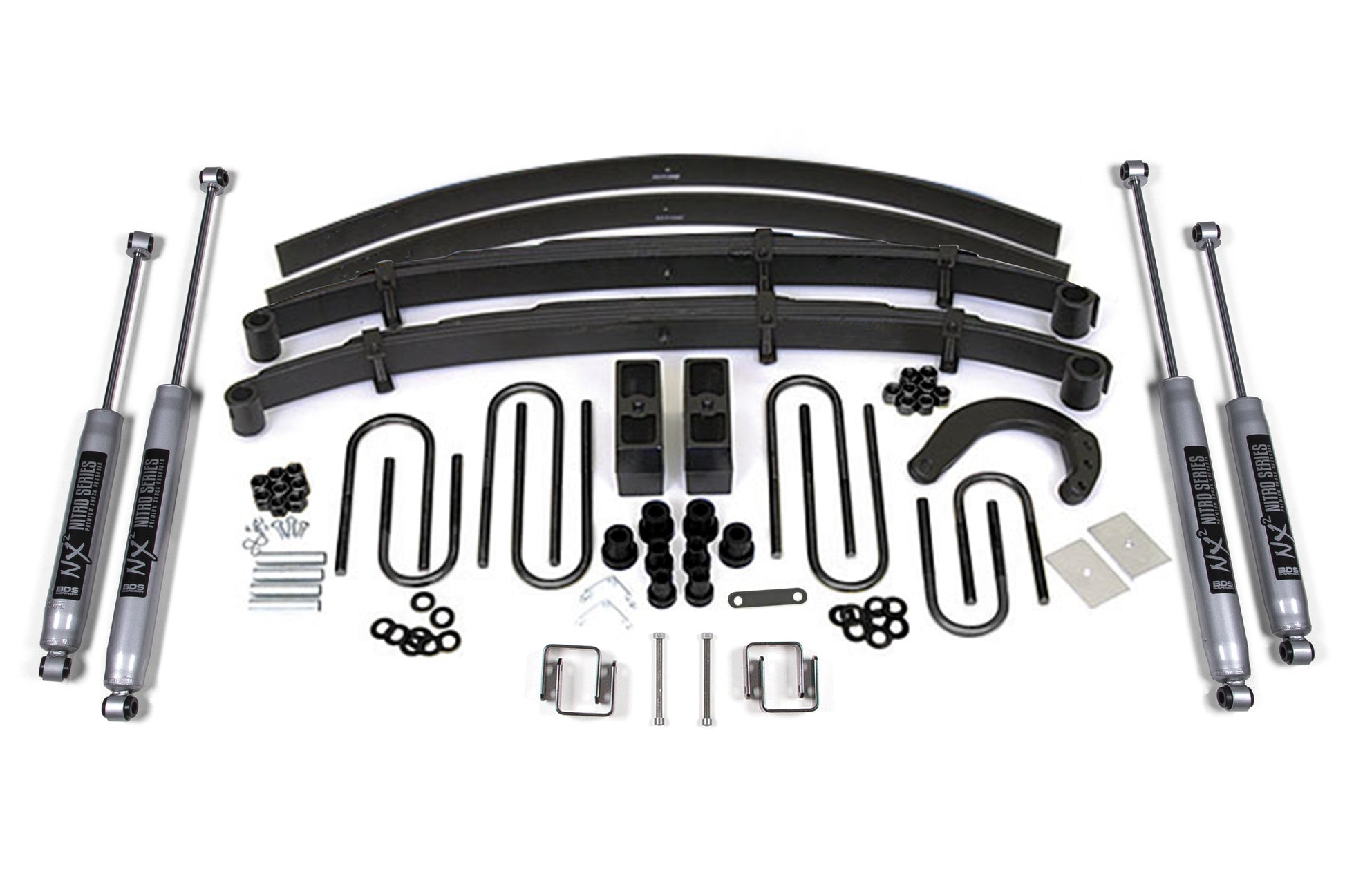

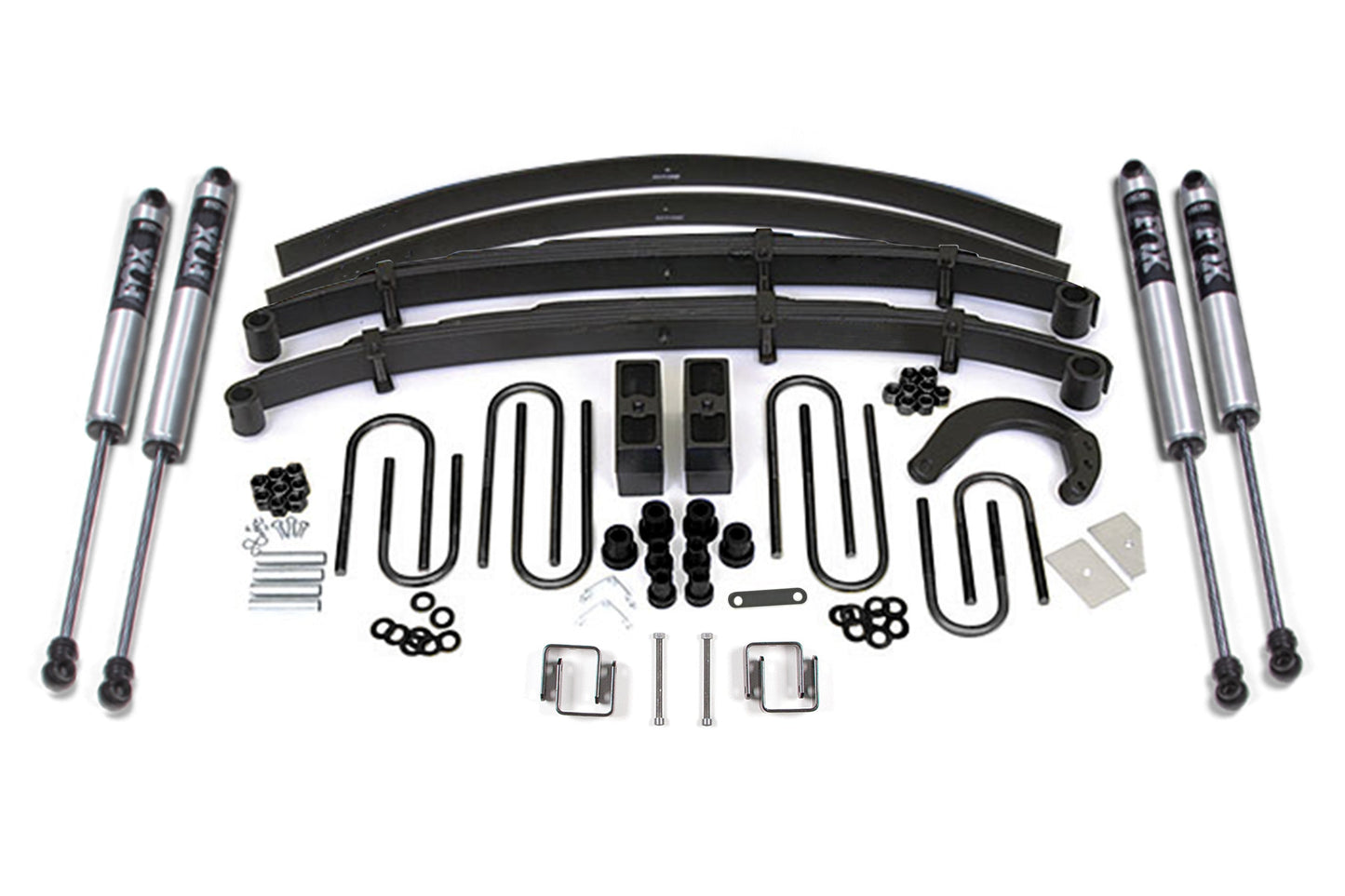

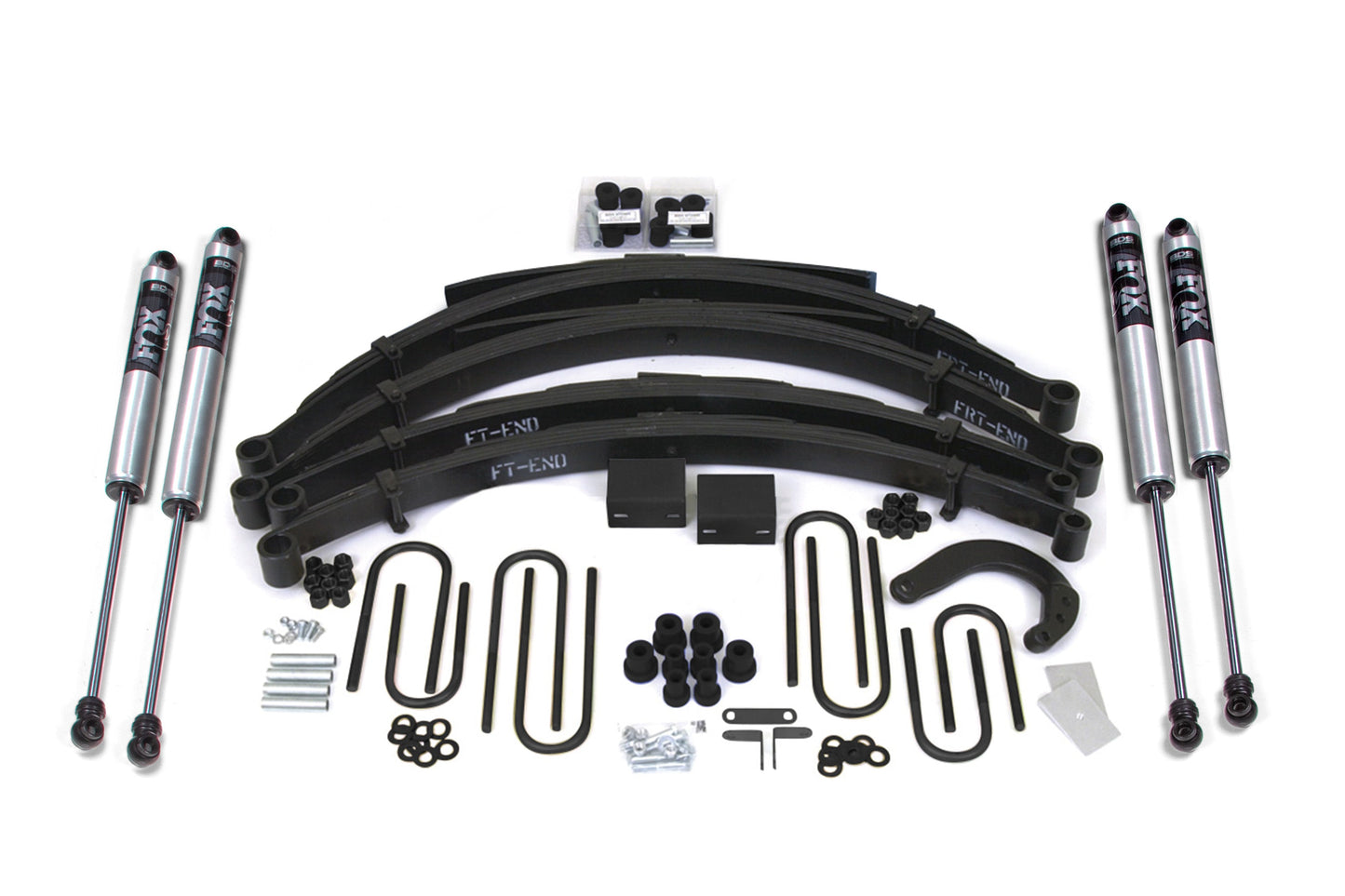

Up front the lift kit includes Glide-Ride leaf springs, 4" steering arm for steering correction, brake line brackets and precision tuned NX2 nitrogen charged shocks. In the rear this kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro shocks.

Glide-Ride Leaf Springs

Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.

Important Notes
  1. The 3/4 ton commonly came with a factory 56" eye to eye rear leaf spring. However, some were produced with a 52" rear spring. If ordering rear leaf springs, be sure to measure your factory rear spring before ordering.
  2. If equipped with a factory front sway bar, a sway bar drop kit is available in the accessories section.
  3. #001408 come with OE style rubber bushings installed.
Installation
Installation Guide/s: Download Guide

Est. Install Time: 5 hrs

Installation Difficulty:
Moderate

Tools Required: Ball Joint Separation Tool, Cut-off Tool
Features
  • Easy, 100% Bolt-on installation
  • Glideride leaf springs to provide full lift height and increased capacity
  • New steering arm maintains proper steering angles for improved handling
  • Cast steel blocks and add-a-leaf provide level stance from front to rear
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
