4 Inch Lift Kit | Ford F150 (15-20) 4WD

From $4,829.95 AUD

Rear Lift Option: 4 Inch Block Kit

Rear Lift Option: 4 Inch Block Kit
4 Inch Block Kit
3 Inch Block Kit

Rear Shock Option: FOX 2.0 Performance Series

Rear Shock Option: FOX 2.0 Performance Series
FOX 2.0 Performance Series
NX2 Nitro Series
$5,529.95 AUD
SKU: BDS1533FS
Availability: In Stock Pre order Available for Air Freight or Pre-Order
Overview

BDS steps up the performance and capability of the 2015-2020 Ford F150 4WD trucks with 4-inch suspension lift kits. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.

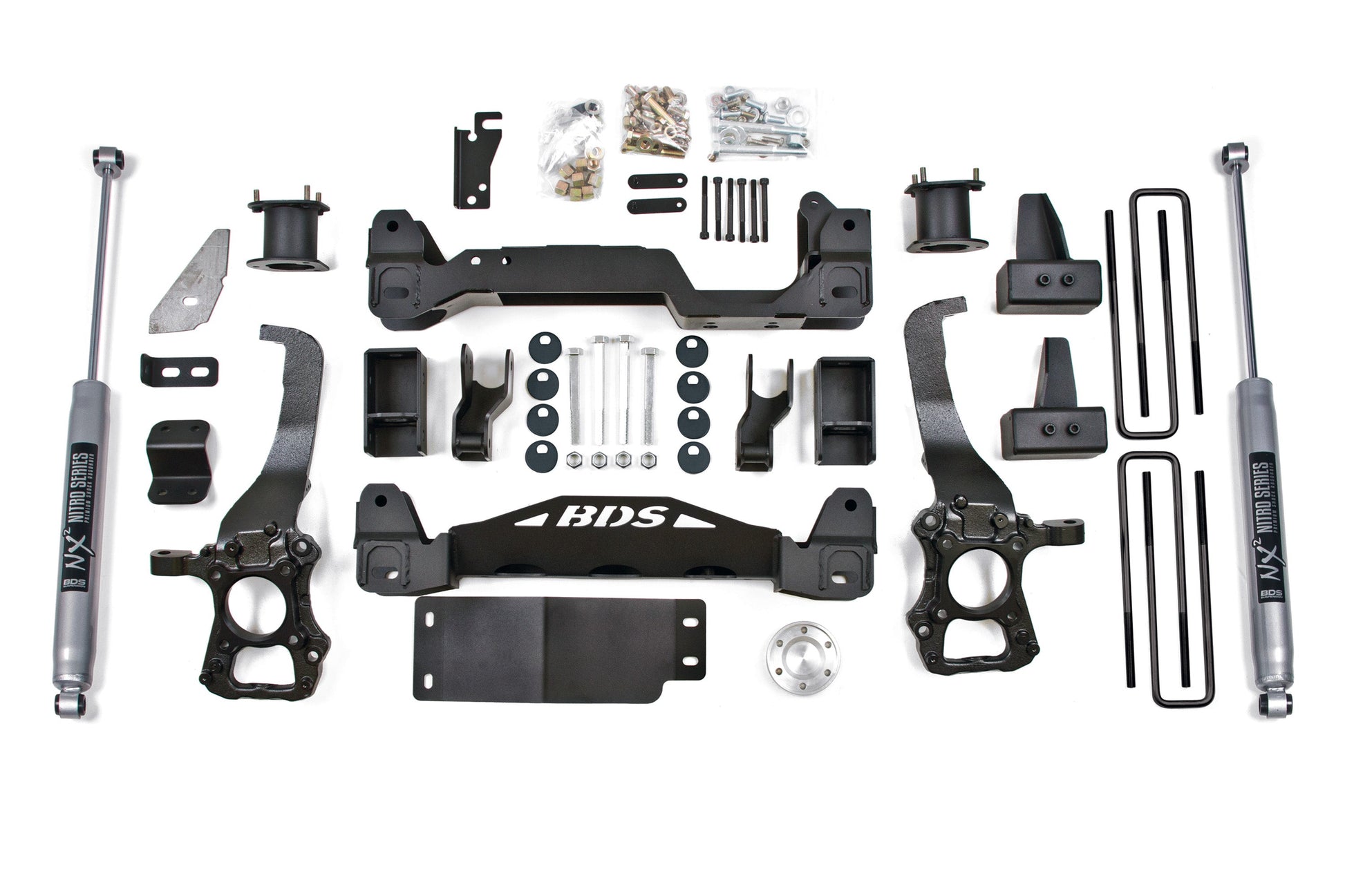

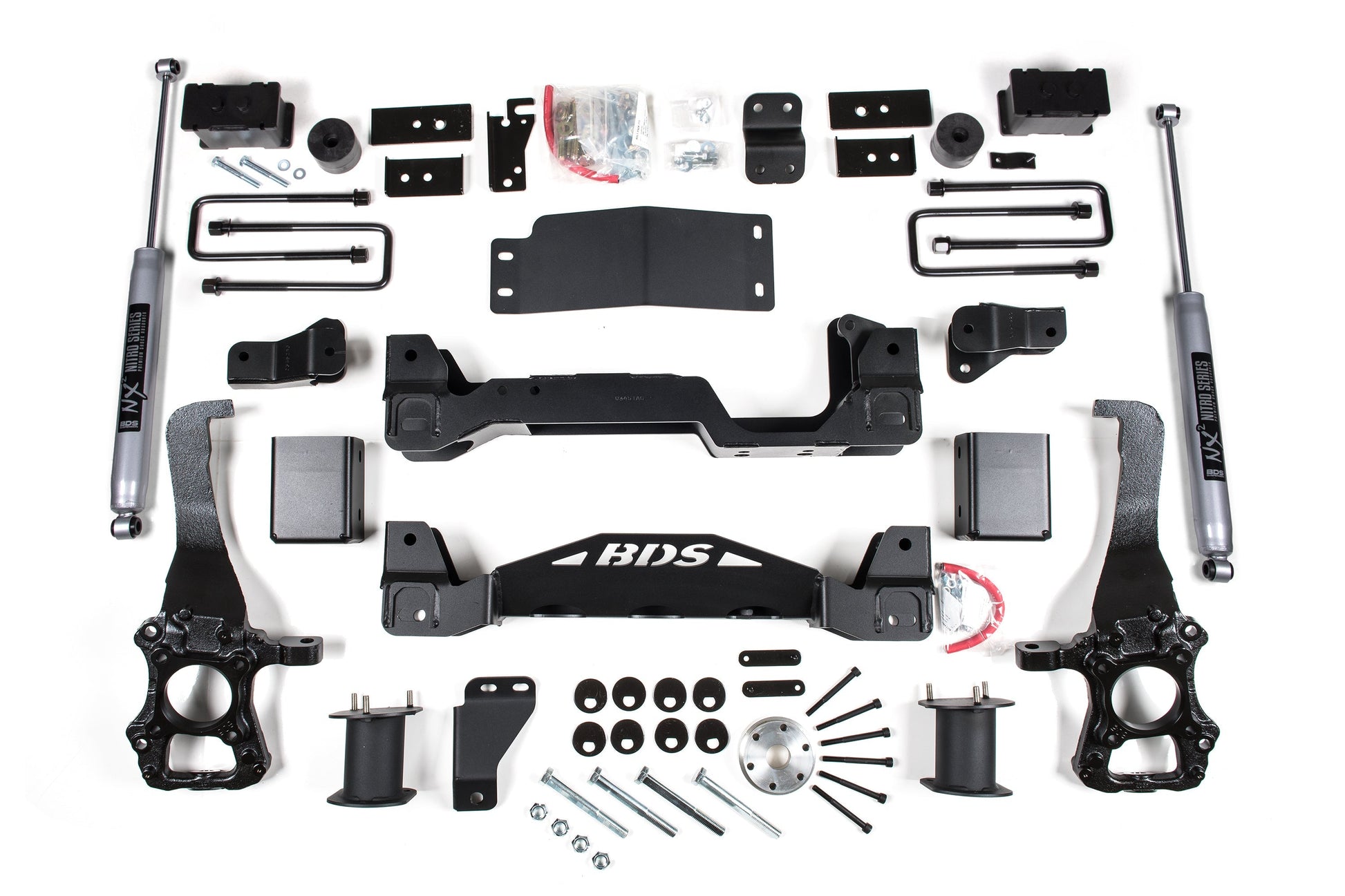

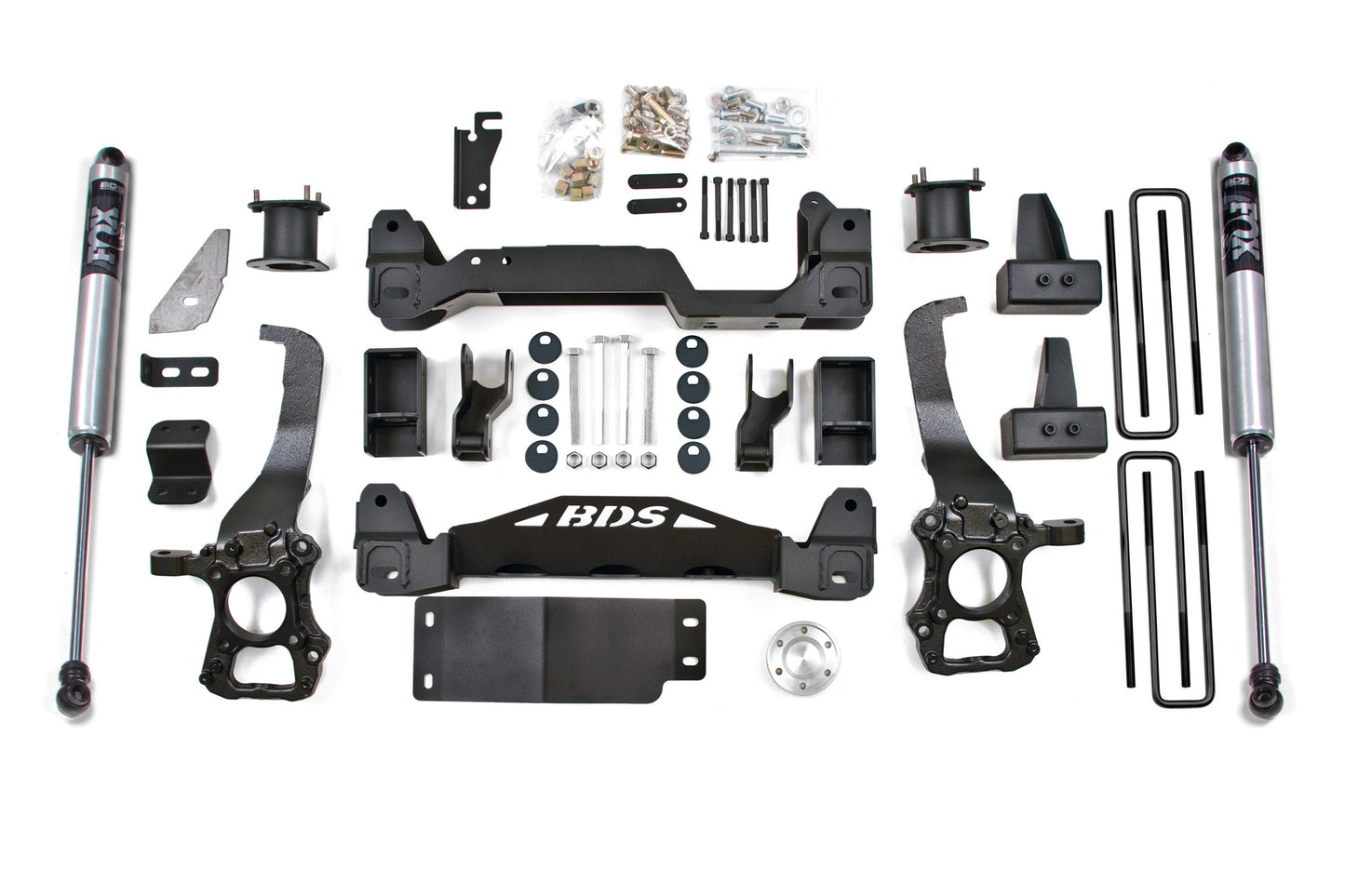

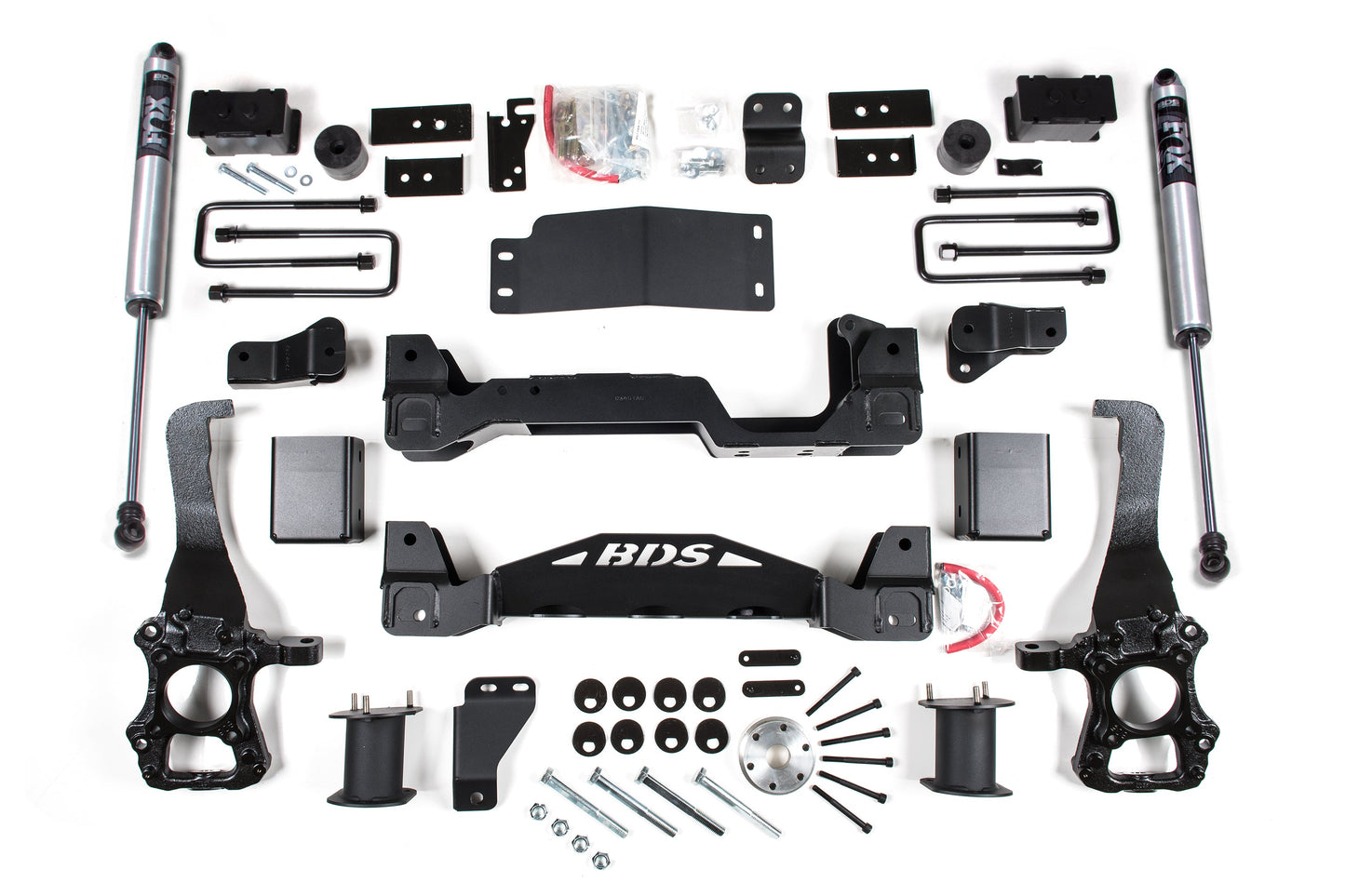

In the rear BDS utilizes high strength fabricated lift blocks and longer u-bolts to lift and level the stance along and NX2 Nitro or optional FOX 2.0 Performance Series shocks.

High Clearance Crossmemebers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

Important Notes
  1. 18" wheels with 5-5.5" total backspacing should be test fir prior to mounting tire to ensure proper clearance to BDS steering knuckle.
  2. 18" or larger diameter wheels required. Stock 17" and 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60-20 tires.
  3. E-brake bracket required for factory powersteps (123018)
  4. Block kits replace factory 1-1/4" block.
  5. Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122406
  6. Will not fit HD models (7 lug).
Installation
Installation Guide/s: Download Guide

Est. Install Time: 10 hrs

Installation Difficulty:
Difficult

Tools Required: Cut-off Tool, Reciprocating Saw
Features
  • High clearance crossmembers improve strength and offroad capability
  • Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
  • Top mounted strut spacers to provide lift and install easily
  • Differential skid plate for improved offroad protection
  • Rear lift blocks and u-bolts to lift and level the stance
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
