4 Inch Lift Kit | Ford F150/Bronco (80-96) 4WD

From $2,279.95 AUD

Rear Lift Option: Block Kit

Rear Lift Option: Block Kit
Block Kit
Block Kit and Add-A-Leaf

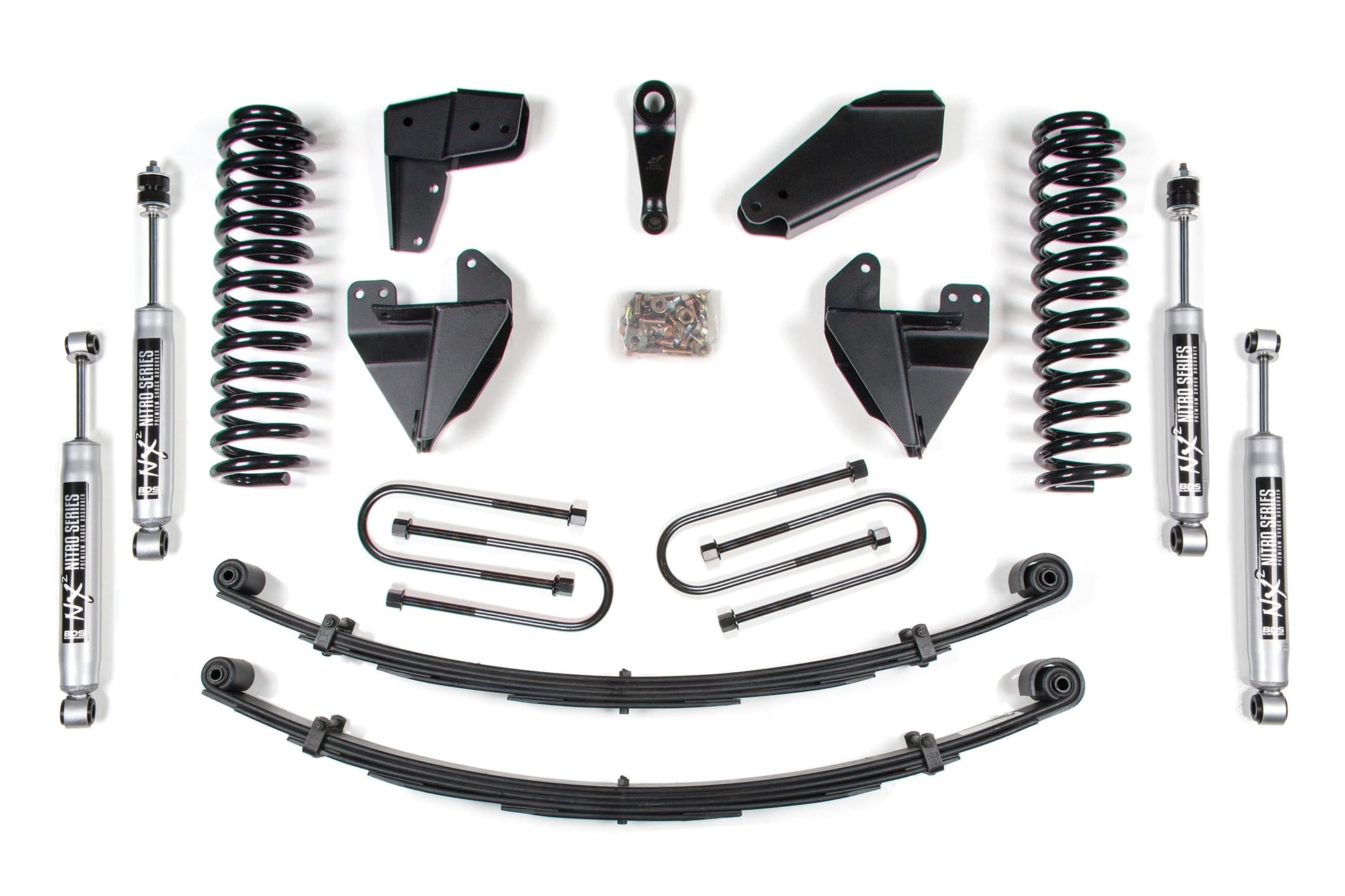

Leaf Springs
$2,279.95 AUD
Ask a Question
SKU: BDS360H
Availability: In Stock Pre order Available for Air Freight or Pre-Order
Overview

Take your 1980-1996 Ford Bronco 4WD truck to new heights with a 4-inch suspension lift kit by BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires.

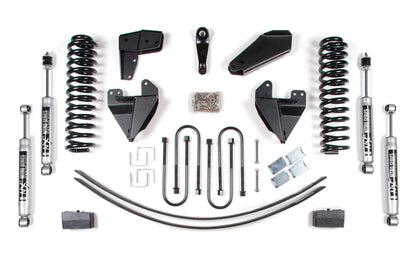

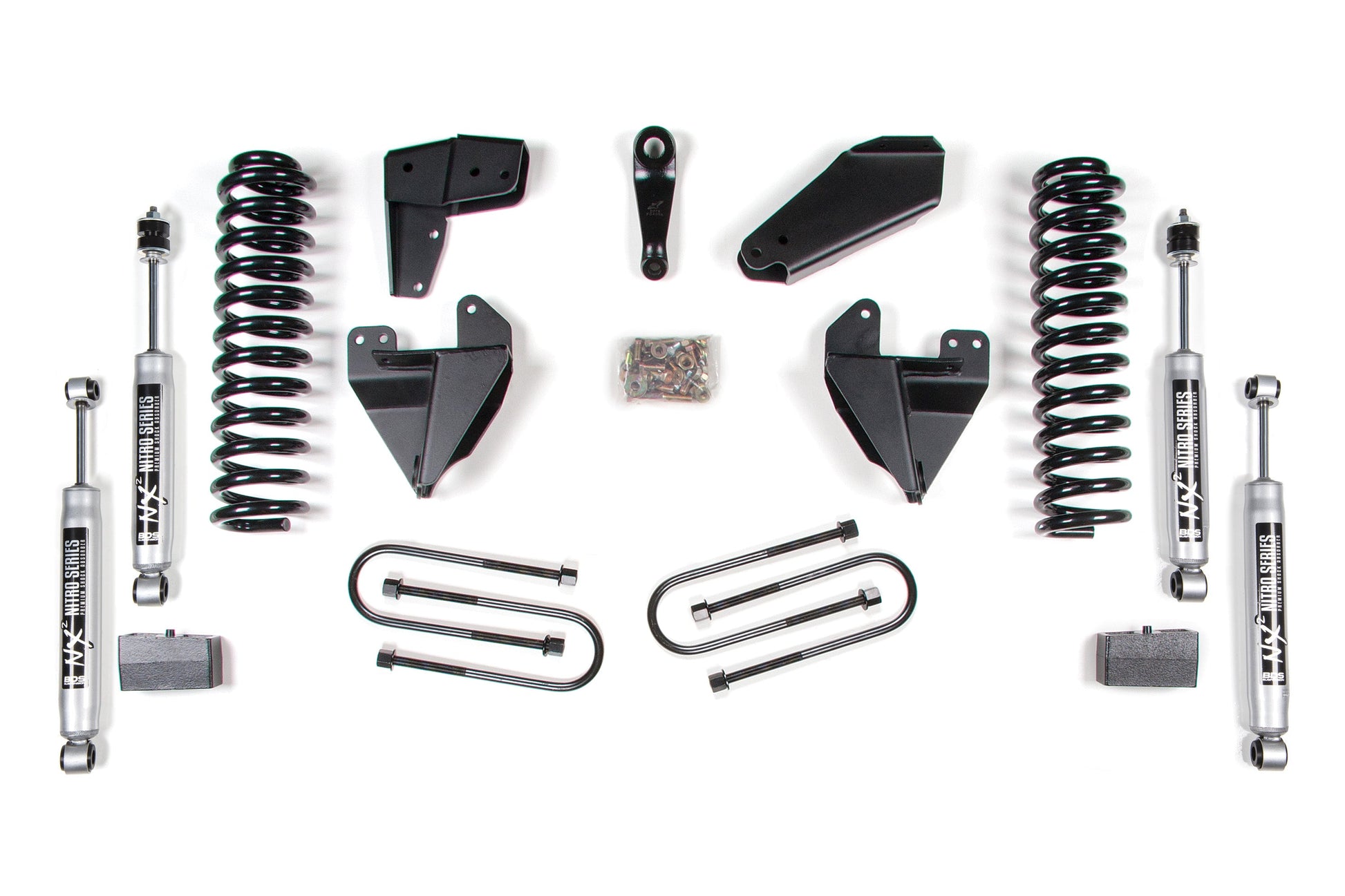

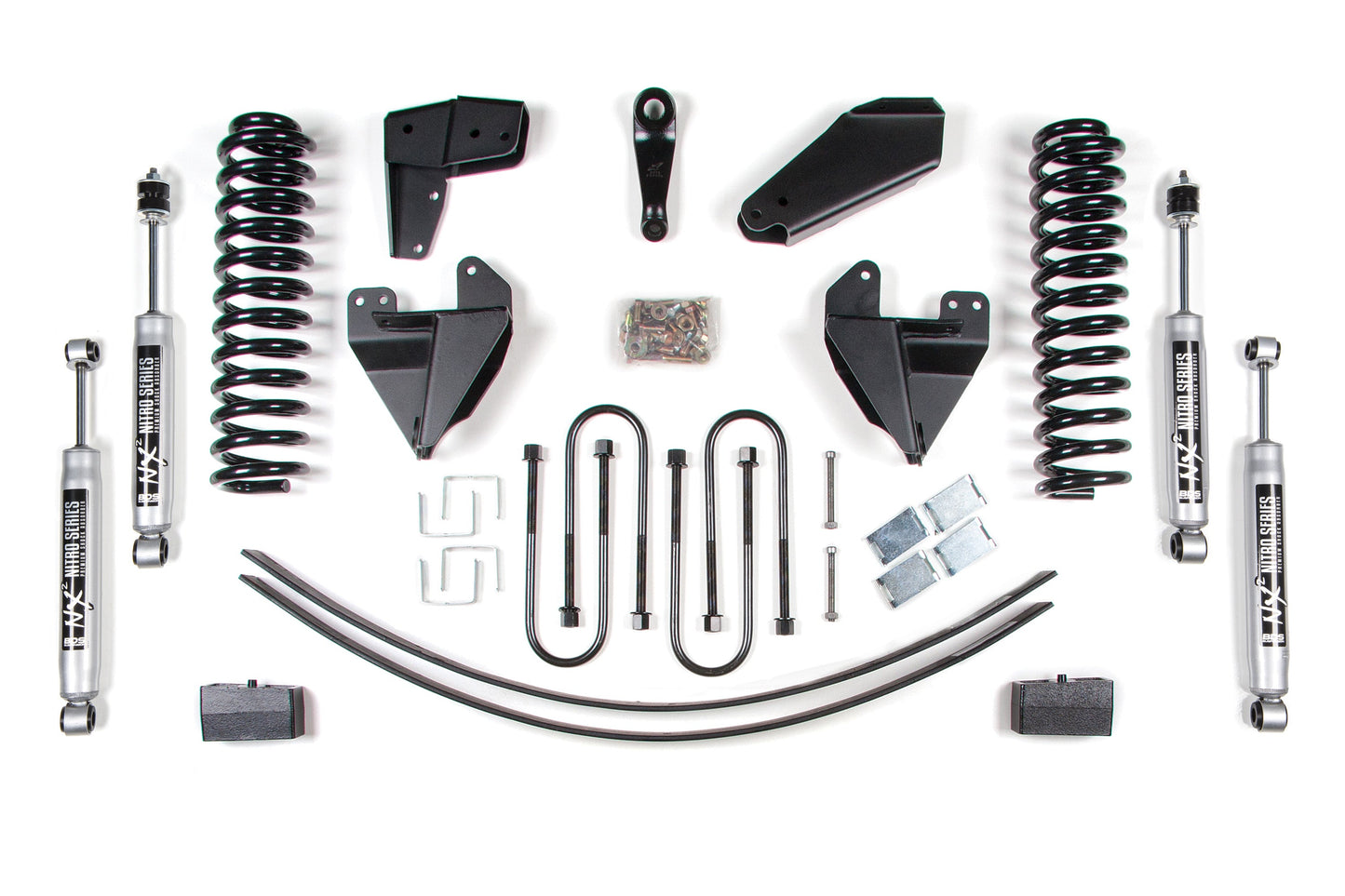

Up front the lift kit includes Pro-Ride coil springs, axle pivot relocation brackets, radius arm drop brackets, forged pitman arm for steering correction and precision tuned NX2 nitrogen charged shocks.

In the rear the base kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro shocks.

Pro-Ride Coil Springs

A pair of full-length, vehicle-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Important Notes
  1. If your vehicle is equipped with a front anti-sway bar, you will want a 123401 available in the options.
  2. Does not fit Broncos without power steering.
  3. Front alignment cams available in the accessories may be required for alignment.
Installation
Installation Guide/s: Download Guide

Est. Install Time: 6 hrs

Installation Difficulty: Moderate

Tools Required: Air Hammer (Recommended), Metric/Standard Socket Wrench Set, Drill / Bit Set, Pitman Arm Puller
Features
  • Easy, Bolt-on installation
  • Pro-Ride dual rate coil springs ride smooth through any terrain
  • Heavy duty steel drop brackets for proper suspension geometry
  • Cast steel blocks provide level stance from front to rear
  • NX2 Nitro shocks with vehicle-specific valving for better control
