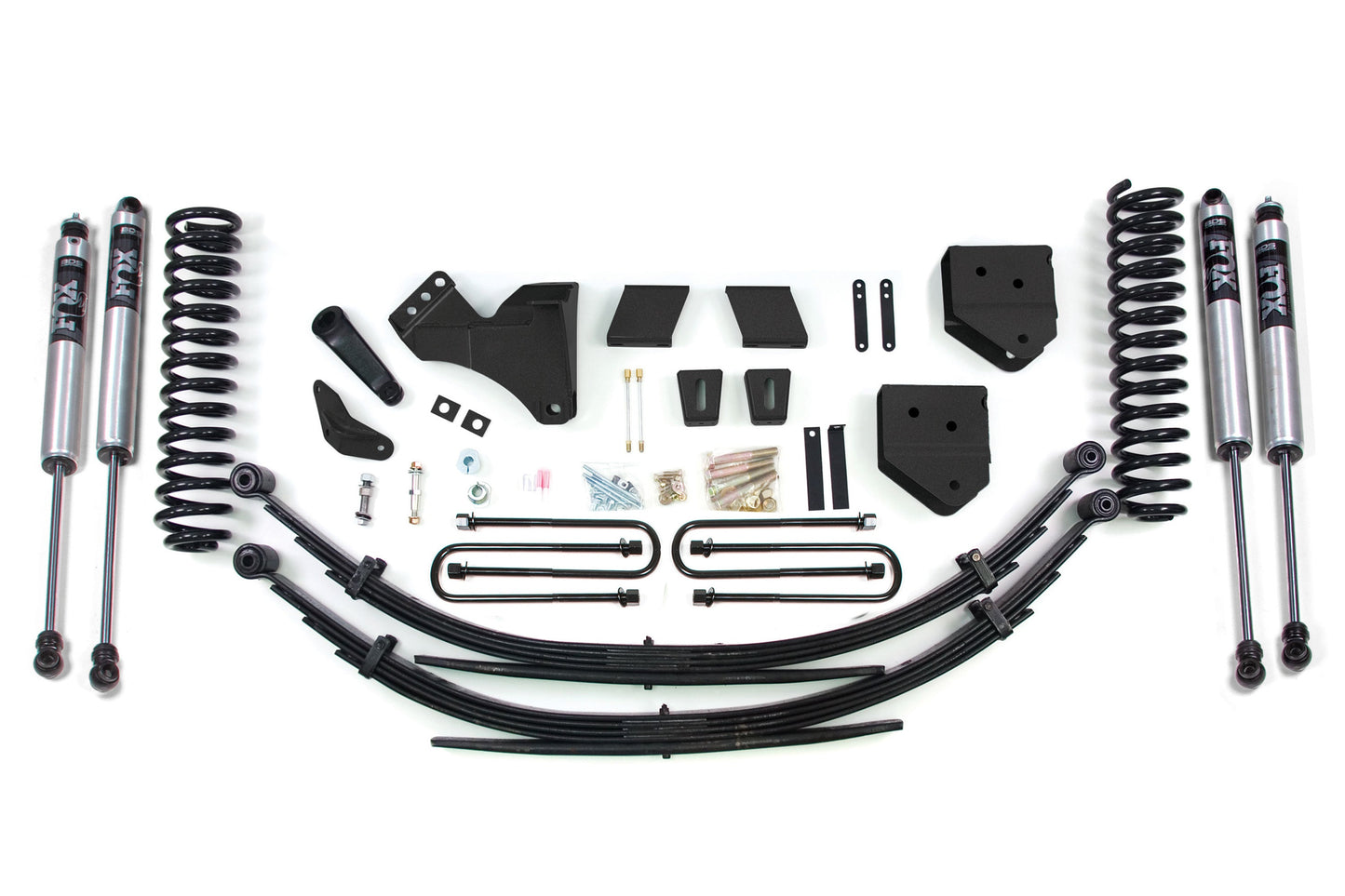

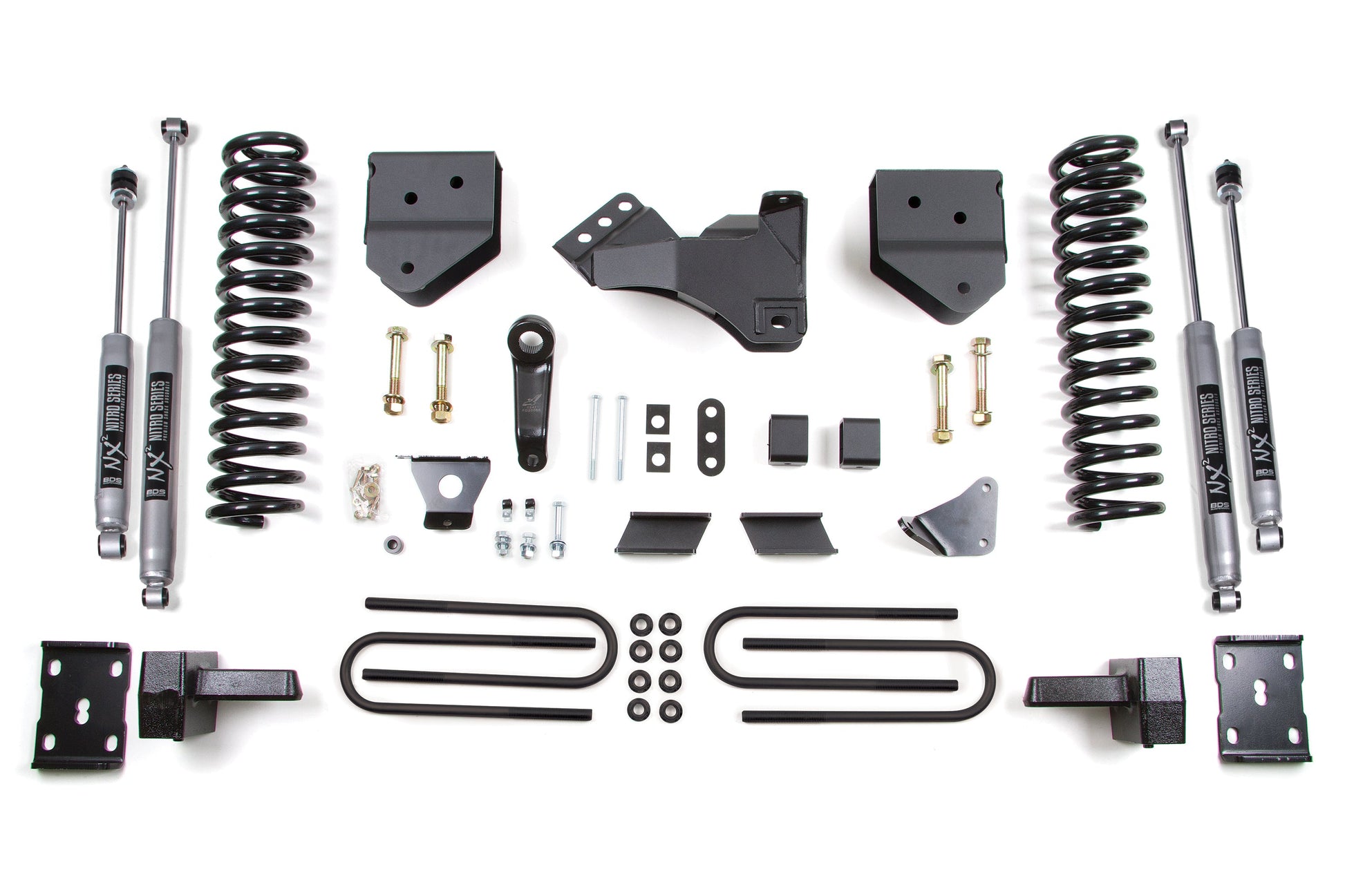

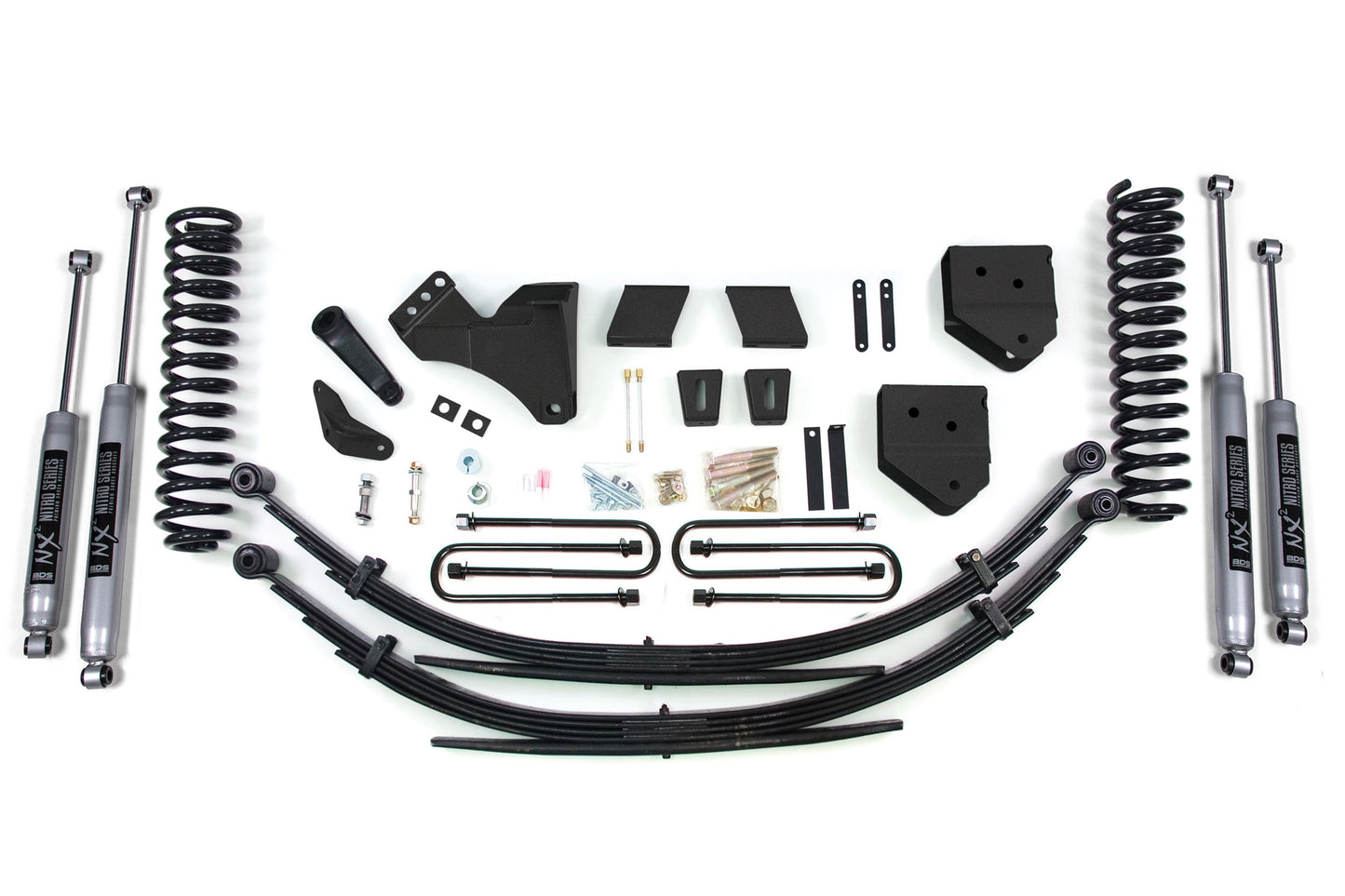

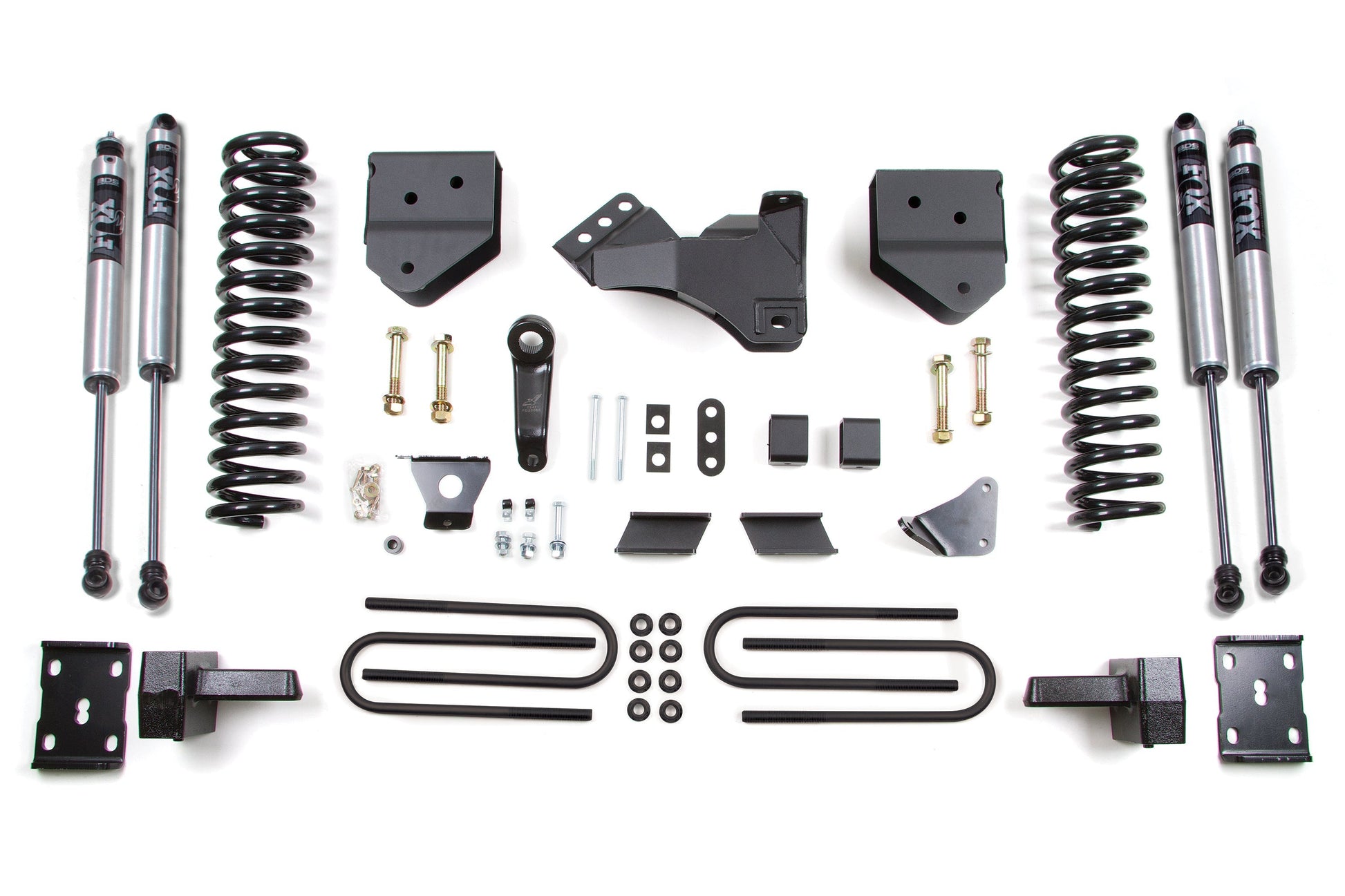

Increase ground clearance on your 2011-2016 Ford F250 and F350 Super Duty diesel powered truck with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.
Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty radius arm drop brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.
In the rear this kit utilizes a high-strength fabricated lift block, u-bolt flip kit for max ground clearance, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.
Pro-Ride Coil Springs
A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Removal of factory block required. Rear add a leaf is required for models equipped with factory 3-7/8" block for level to tail high stance. Single add-a-leaf kit # 113218 recommended for more level stance - Dual add-a-leaf kit # 113209 recommended for tail high stance. (Add-a-leafs do not apply to rear leaf spring equipped systems)
If equipped with 2-piece driveshaft, a driveshaft alignment kit may be required.
Although extremely rare, front and/or rear driveline vibration may occur.
