Home 4 Inch Lift Kit | Ram 3500 w/ Rear Air Ride (13-18) 4WD | Diesel
4 Inch Lift Kit | Ram 3500 w/ Rear Air Ride (13-18) 4WD | Diesel
Overview Improve the ride and style of your 2013-2018 RAM 3500 diesel powered truck equipped with factory rear air ride by installing this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

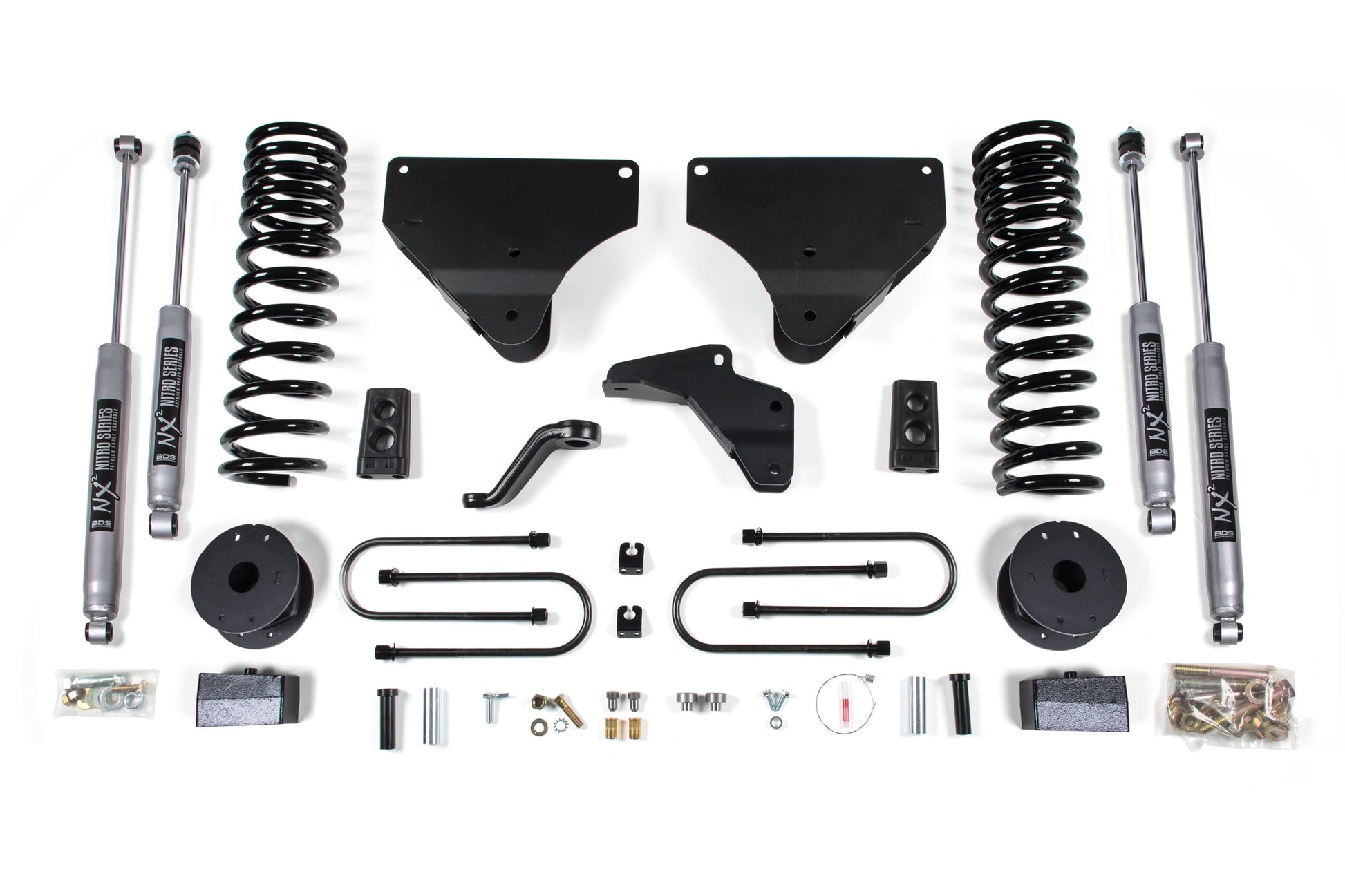

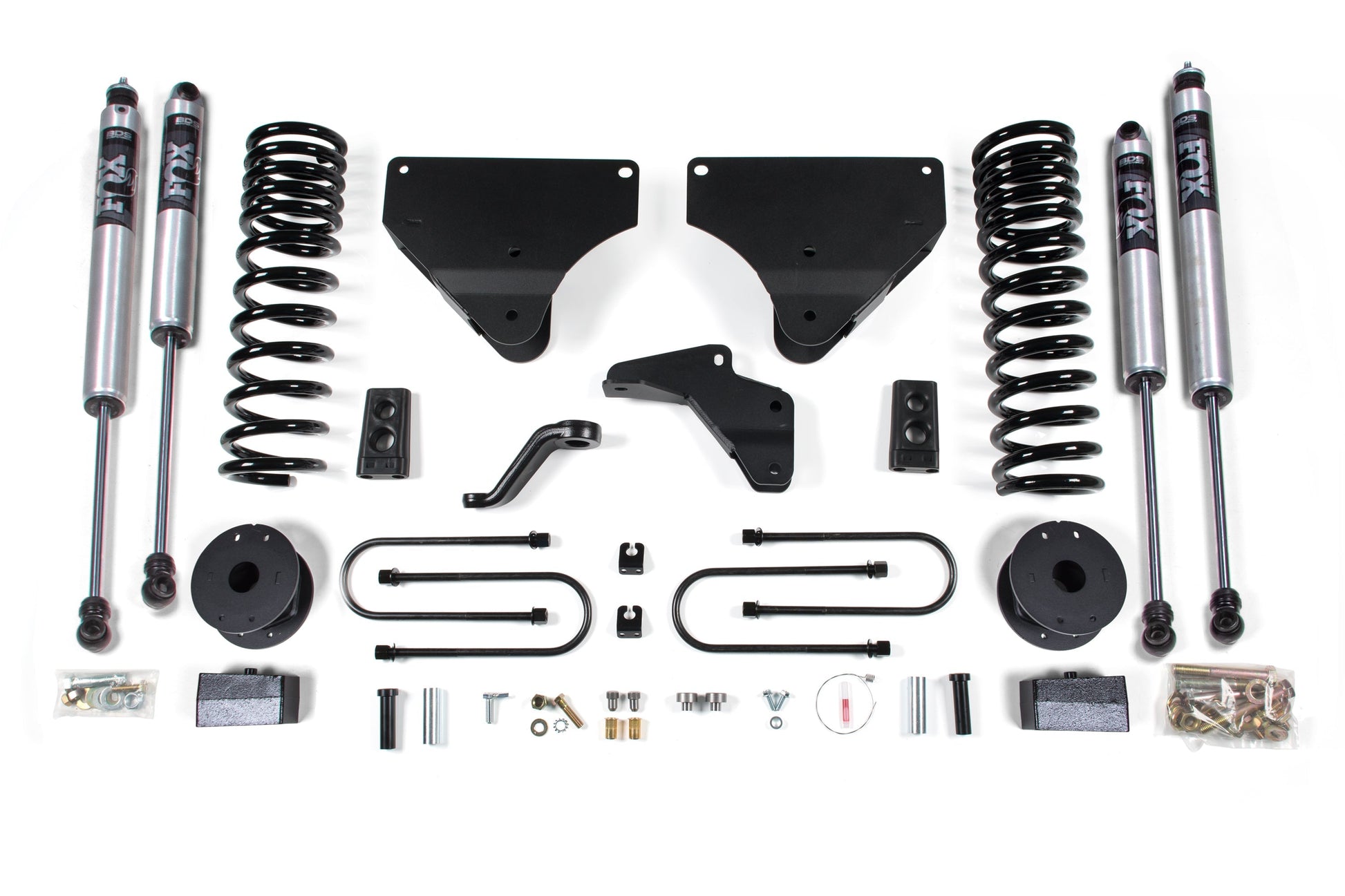

Up front the lift kit includes diesel-specific Pro-Ride coil springs, radius arms drop brackets, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.
In the rear this kit utilizes a high-strength fabricated lift block, heavy duty air bag spacer, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.
Pro-Ride Coil Springs
A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Important Notes
The carrier bearing drop is necessary for models equipped with two piece rear drive shaft.
Some vehicles may require rear driveshaft spacer kit 122007 to maintain adequate rear driveshaft engagement.
Installation Installation Guide/s: Download Guide
Est. Install Time: 6-8 hrs
ModeratelyEasy
Tools Required: Step Drill Bit, Drill / Bit Set, Pitman Arm Puller, Welding Equipment
Features
Heavy duty radius arm drop brackets maintain proper suspension geometry
Front high strength progressive rate coil springs for a great ride on any terrain
Front track bar relocation bracket to re-position axle
Forged drop pitman arm to correct steering angles
Front sway bar correction to maintain handling performance
BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance
4 Inch Lift Kit | Ram 3500 w/ Rear Air Ride (13-18) 4WD | Diesel
$4,859.95
FOX 2.0 Performance Series
FOX 2.0 Performance Series NX2 Nitro Series
