Home 4 Inch Lift Kit w/ 4-Link | Ram 3500 (19-23) 4WD | Gas
4 Inch Lift Kit w/ 4-Link | Ram 3500 (19-23) 4WD | Gas
Overview
Raise your RAM 3500 gas
powered truck to the next heights with this 4-inch lift kit with 4-Link
conversion from BDS Suspension. Designed to improve stance, performance, and
capability, this kit includes everything necessary to set your truck up right
with clearance for up to 35" tires.

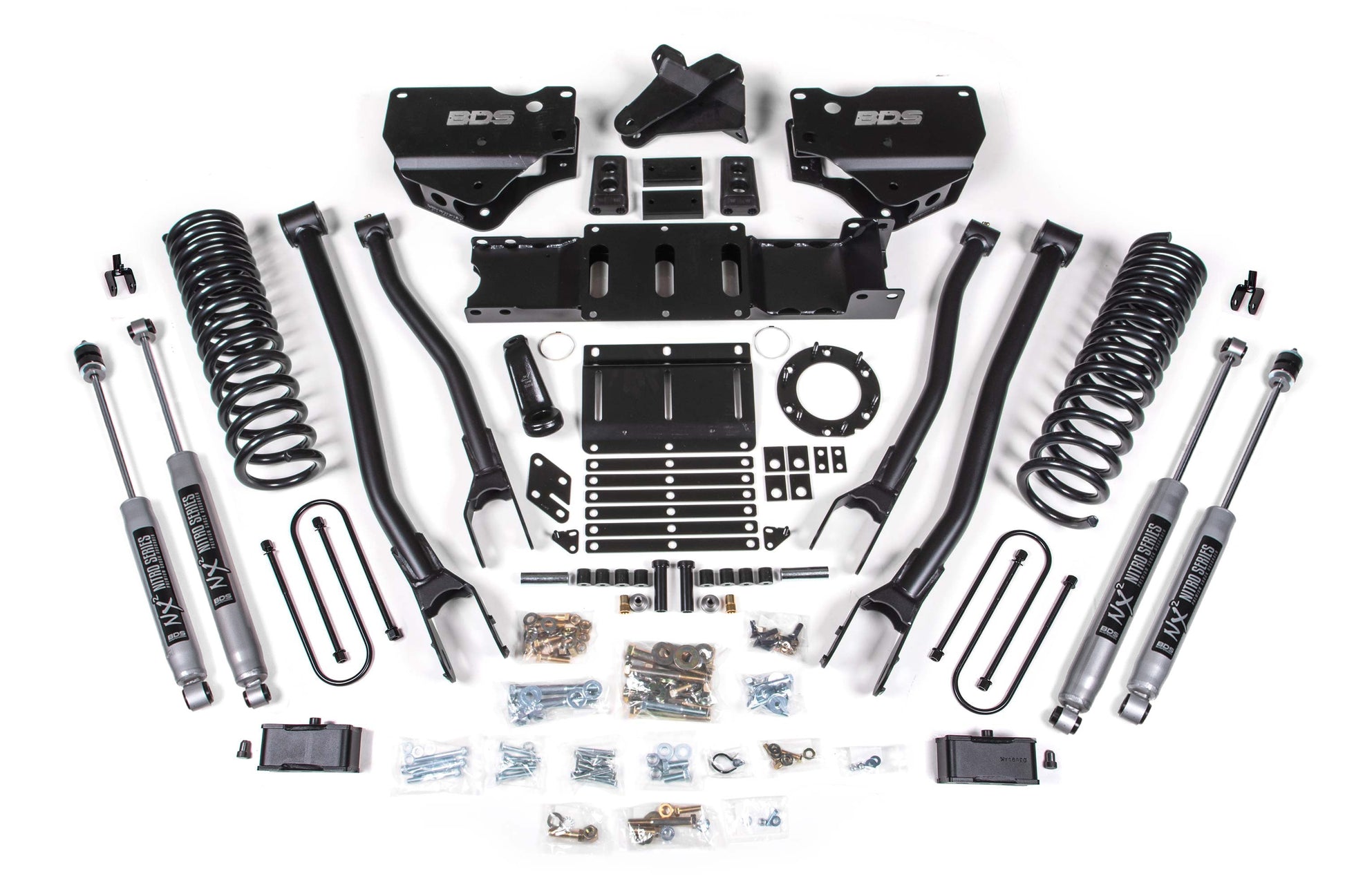

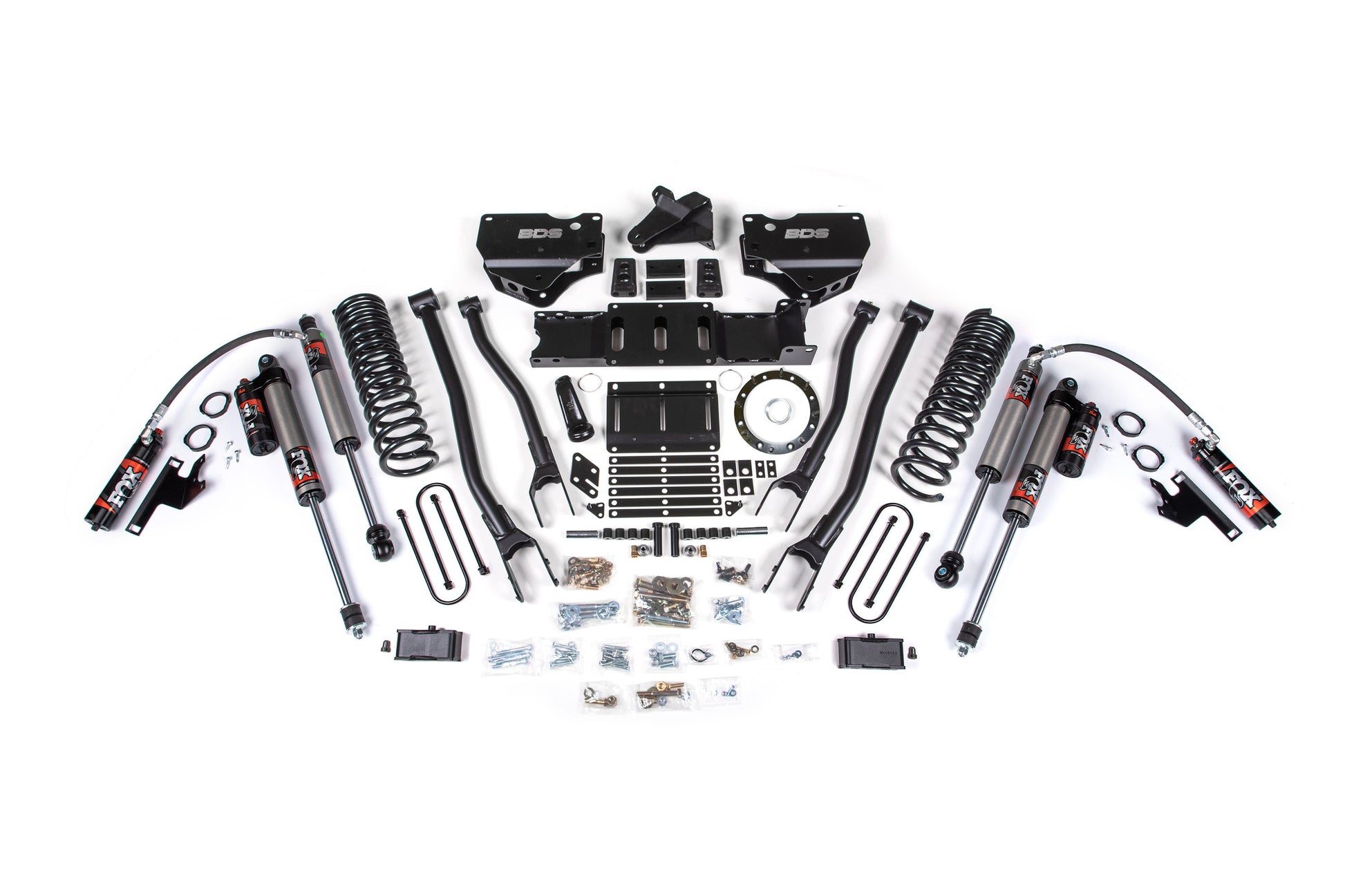

Up front the lift kit includes gas-specific
Pro-Ride coil springs, 4-Link control arms and conversion brackets, forged drop
pitman arm and track bar bracket for steering correction, sway bar relocation,
brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.
At
this height, the transfer case needs to be indexed to allow use of the factory
front driveshaft so an indexing ring and new transmission crossmember are
supplied. In the rear this kit utilizes a high-strength steel lift block,
longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.
Important Notes A DEF tank relocation bracket(part# 122409) is required for this kit to work with Dually or Mega Cab Models with Aisin Transmissions (8-bolt). Exhaust modification is required to clear the front driveshaft. The vehicle can be driven w/o a front driveshaft to an exhaust shop. Vehicles equipped with a Manual T-case, requires BDS122422 Manual transfer case shifter extension. Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.
4 Inch Lift Kit w/ 4-Link | Ram 3500 (19-23) 4WD | Gas
$5,499.95
Without Factory Rear Overload Leaf / NX2 Nitro Series
Without Factory Rear Overload Leaf / NX2 Nitro Series Without Factory Rear Overload Leaf / FOX 2.0 Performance Series Without Factory Rear Overload Leaf / FOX 2.5 Performance Elite - Available for Air Freight or Pre-Order With Factory Rear Overload Leaf / NX2 Nitro Series - Available for Air Freight or Pre-Order With Factory Rear Overload Leaf / FOX 2.0 Performance Series - Available for Air Freight or Pre-Order With Factory Rear Overload Leaf / FOX 2.5 Performance Elite - Available for Air Freight or Pre-Order
