4 Inch Lift Kit w/ Radius Arm | Ford F250/F350 Super Duty (17-19) 4WD | Gas

From $3,999.95 AUD

Rear Lift Option: 5 Inch Block with 2 Leaf Main

Rear Lift Option: 5 Inch Block with 2 Leaf Main
5 Inch Block with 2 Leaf Main
5 Inch Block with 3 Leaf Main
Leaf Springs

Shock Option: FOX 2.0 Performance Series

Shock Option: FOX 2.0 Performance Series
FOX 2.0 Performance Series
NX2 Nitro Series
FOX 2.5 Performance Elite
$5,329.95 AUD
SKU: BDS1521FS
Availability: In Stock Pre order Available for Air Freight or Pre-Order
Overview

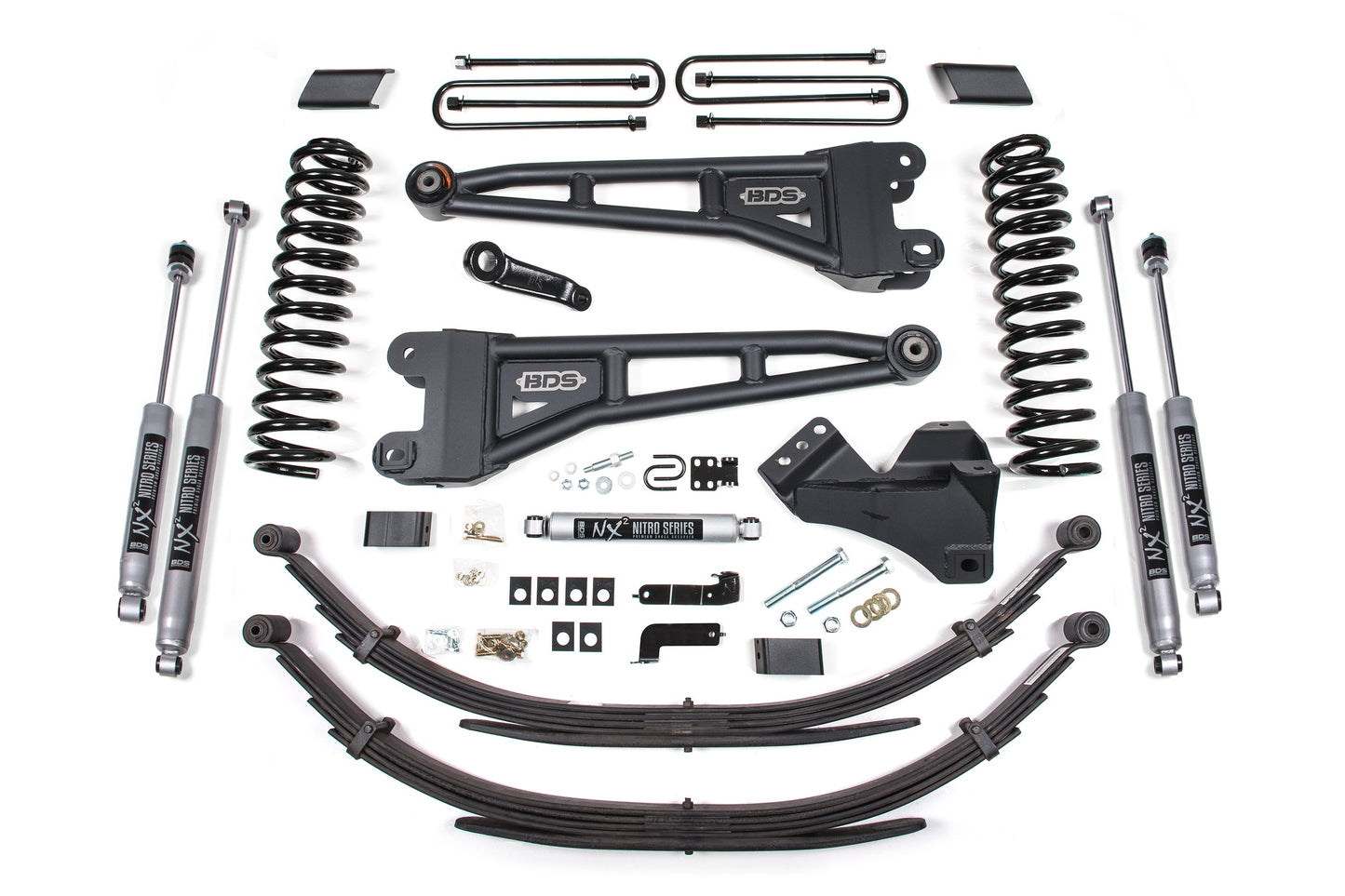

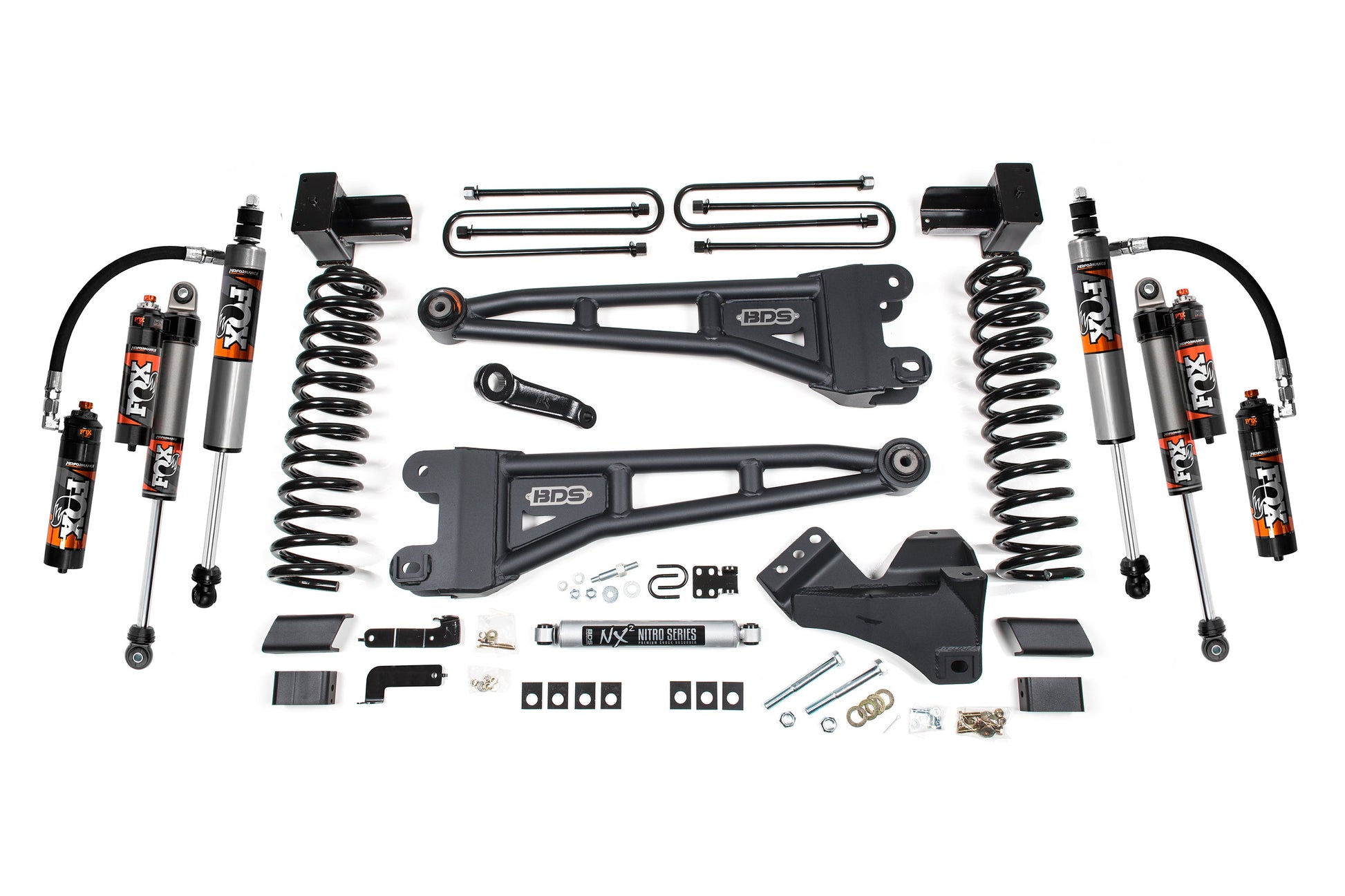

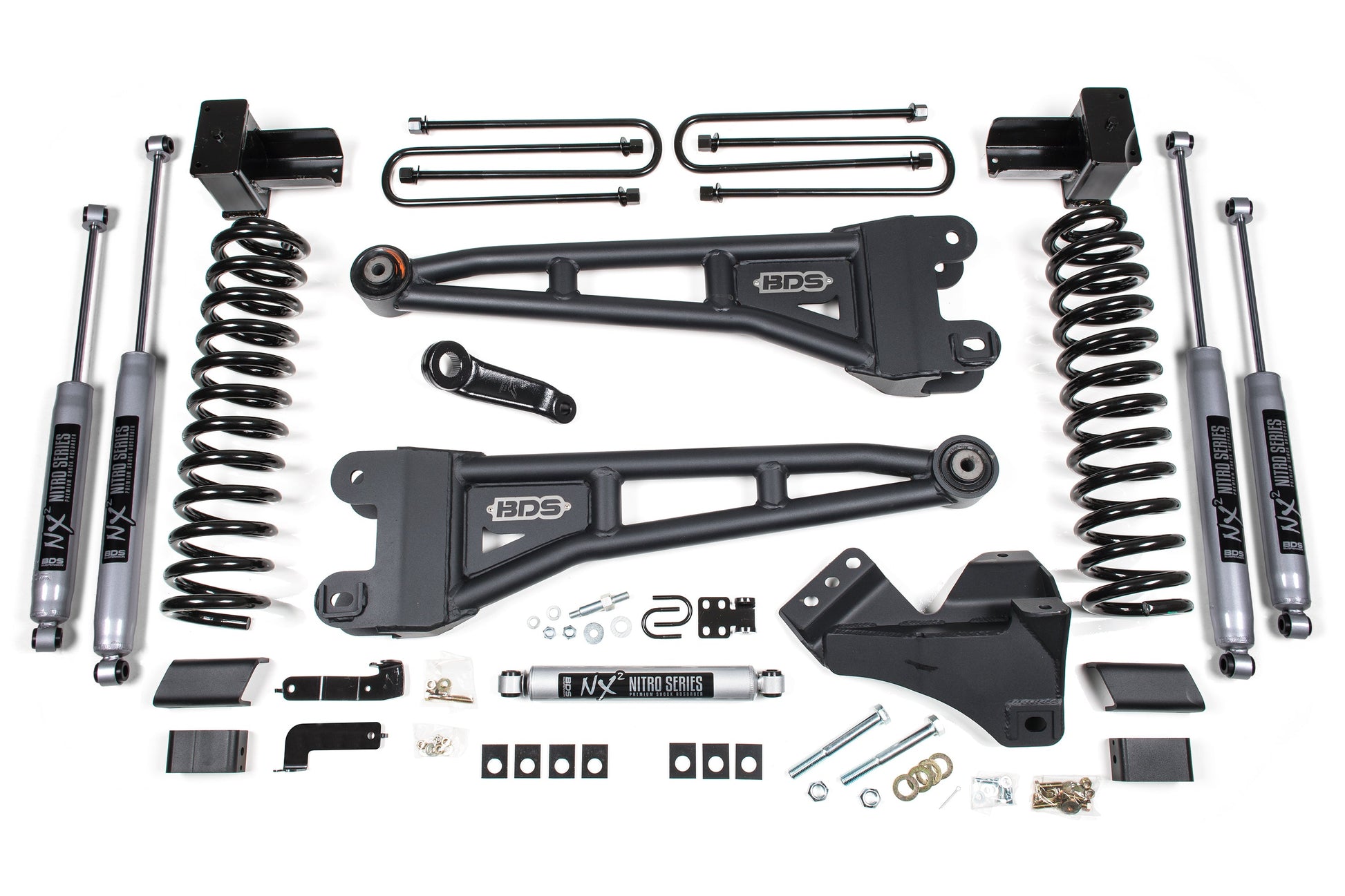

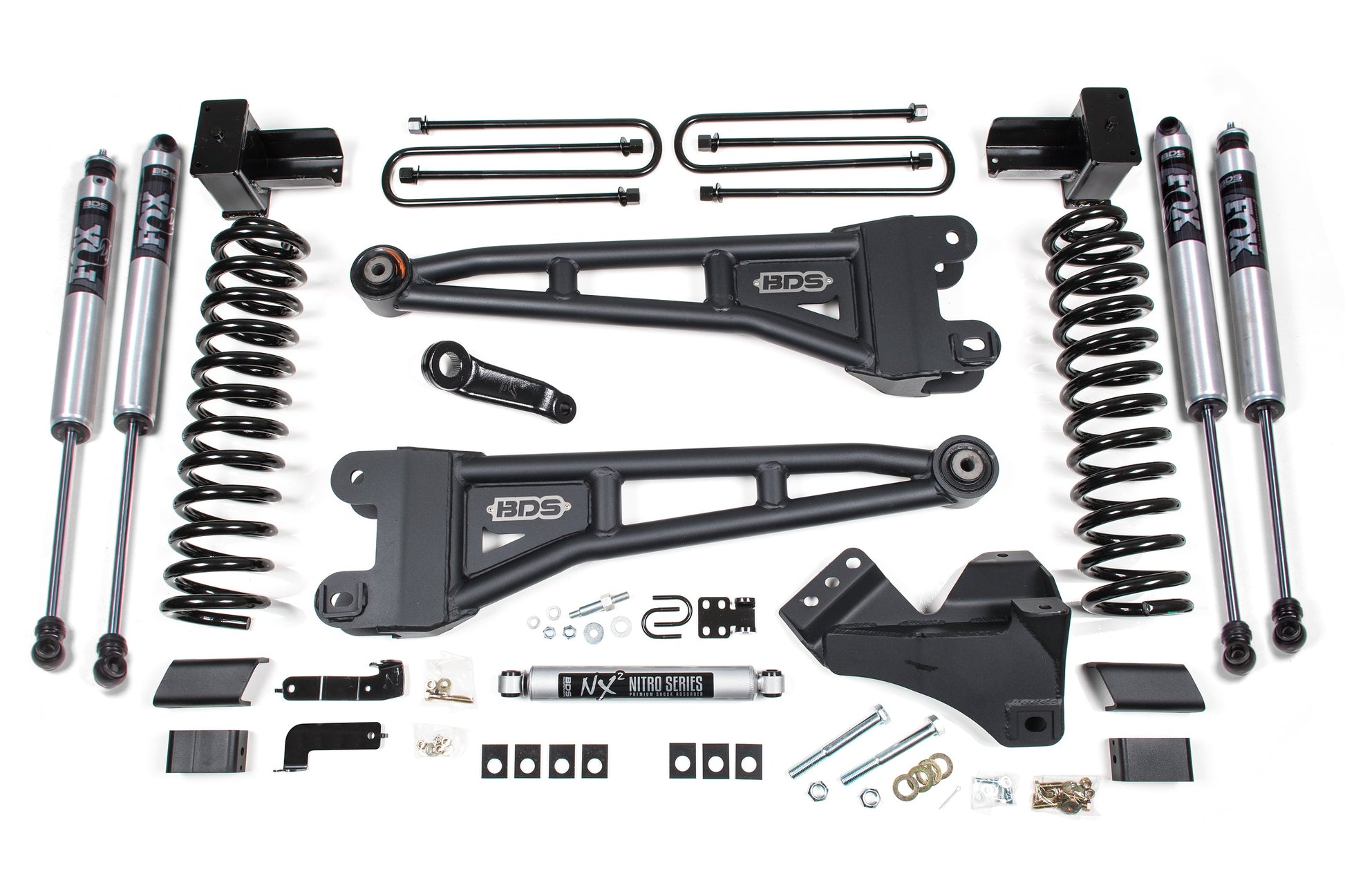

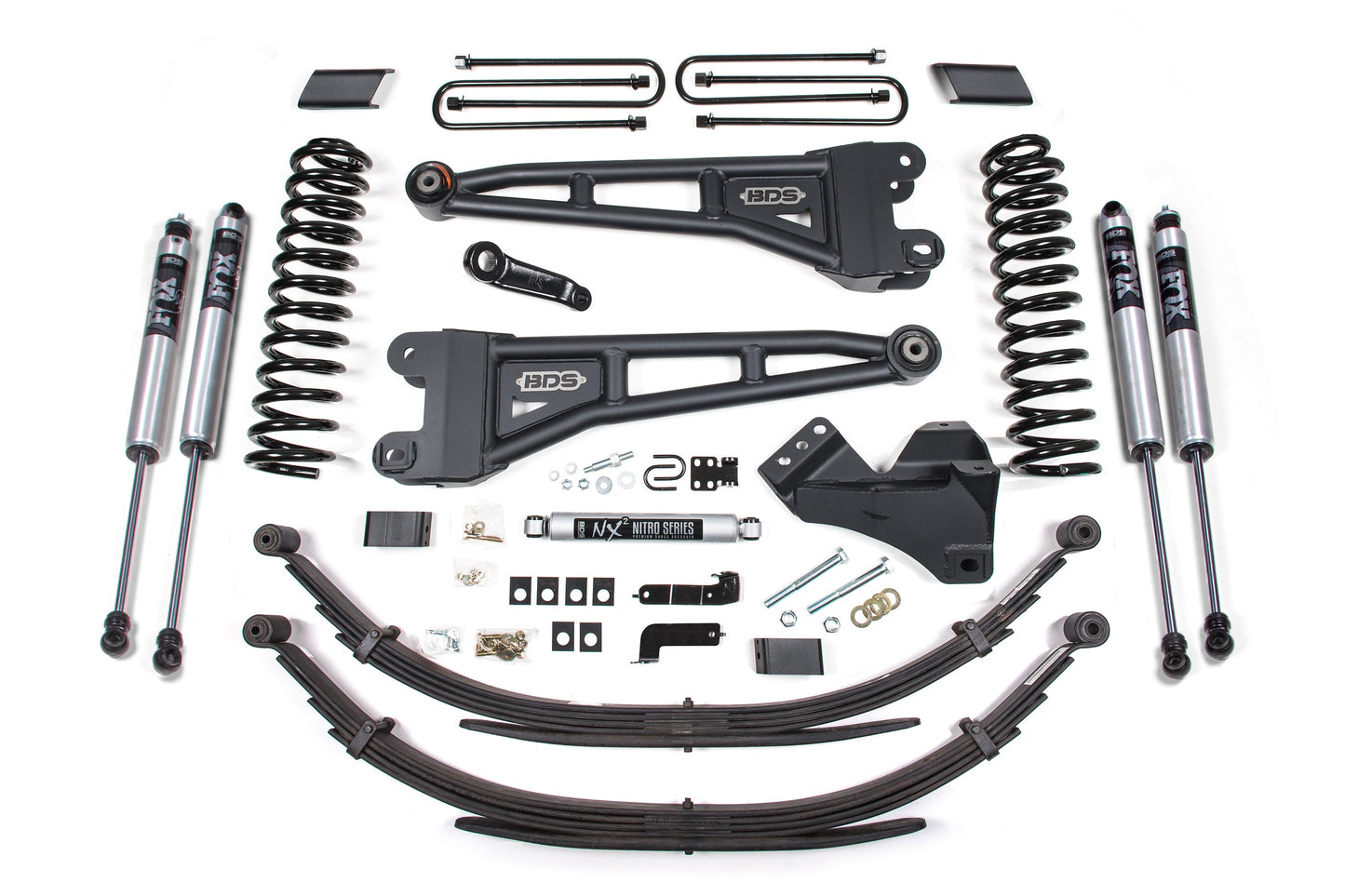

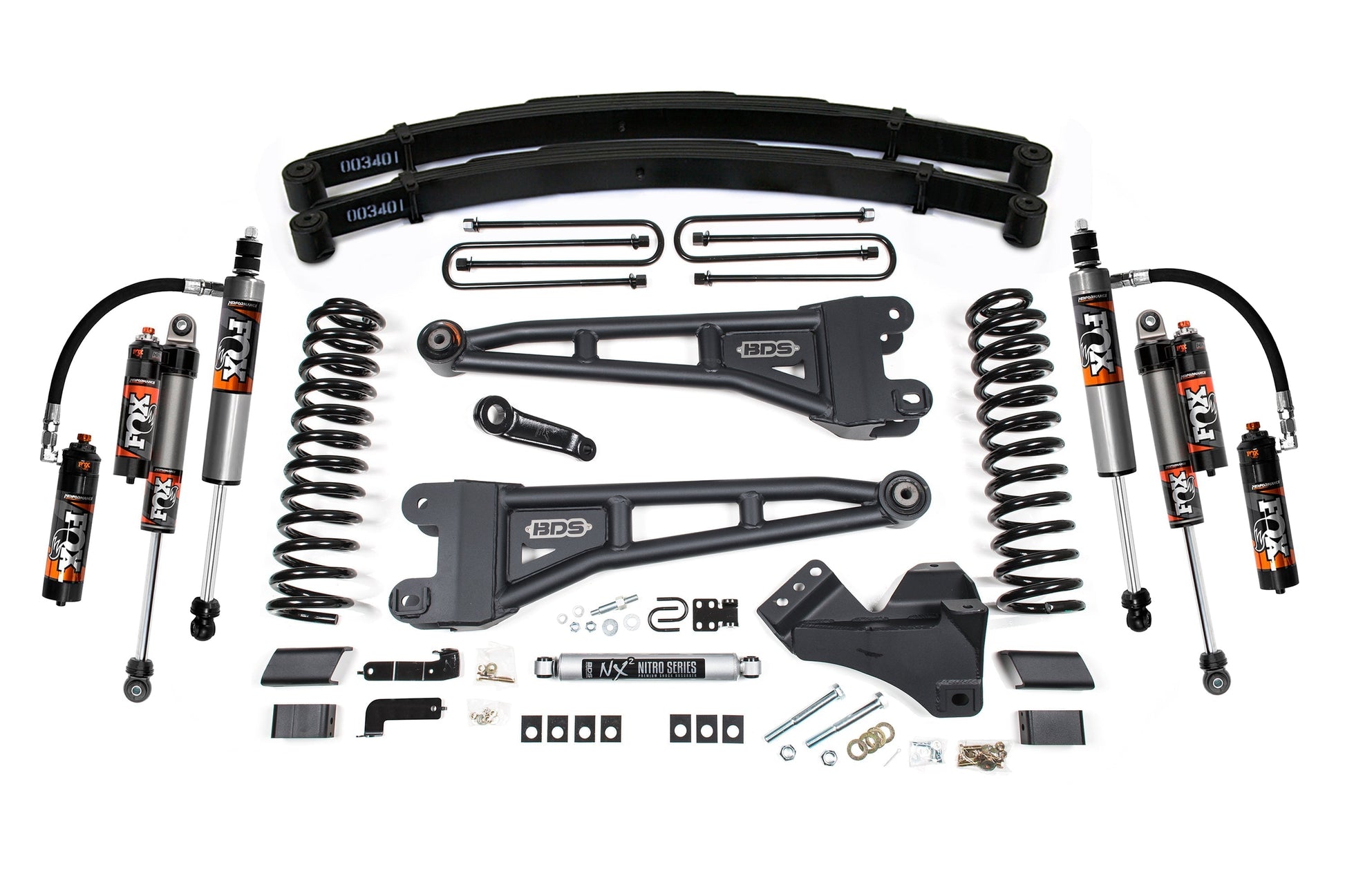

Improve the ride on your 2017-2019 Ford F250 and F350 Super Duty gas powered truck with this 4-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

Up front the lift kit includes gasoline-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, gasoline-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Important Notes
  1. Front exhaust modification may be required to clear front drive shaft
  2. If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
  3. 37 x 12.50 tires may require minor trimming.
  4. Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main. Be sure to order the correct option when customizing your kit.
Installation
Installation Guide/s: Download Guide

Est. Install Time: 4-5 hrs

Installation Difficulty:
Moderate

Tools Required: Torque Wrench, Pitman Arm Puller
Features
  • Easy, 100% Bolt-on installation
  • Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
  • Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Fabricated steel blocks provide level stance from front to rear
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
