Raise your RAM 3500 gas
powered truck to the next heights with this 4-inch lift kit with 4-Link
conversion from BDS Suspension. Designed to improve stance, performance, and
capability, this kit includes everything necessary to set your truck up right
with clearance for up to 35" tires.

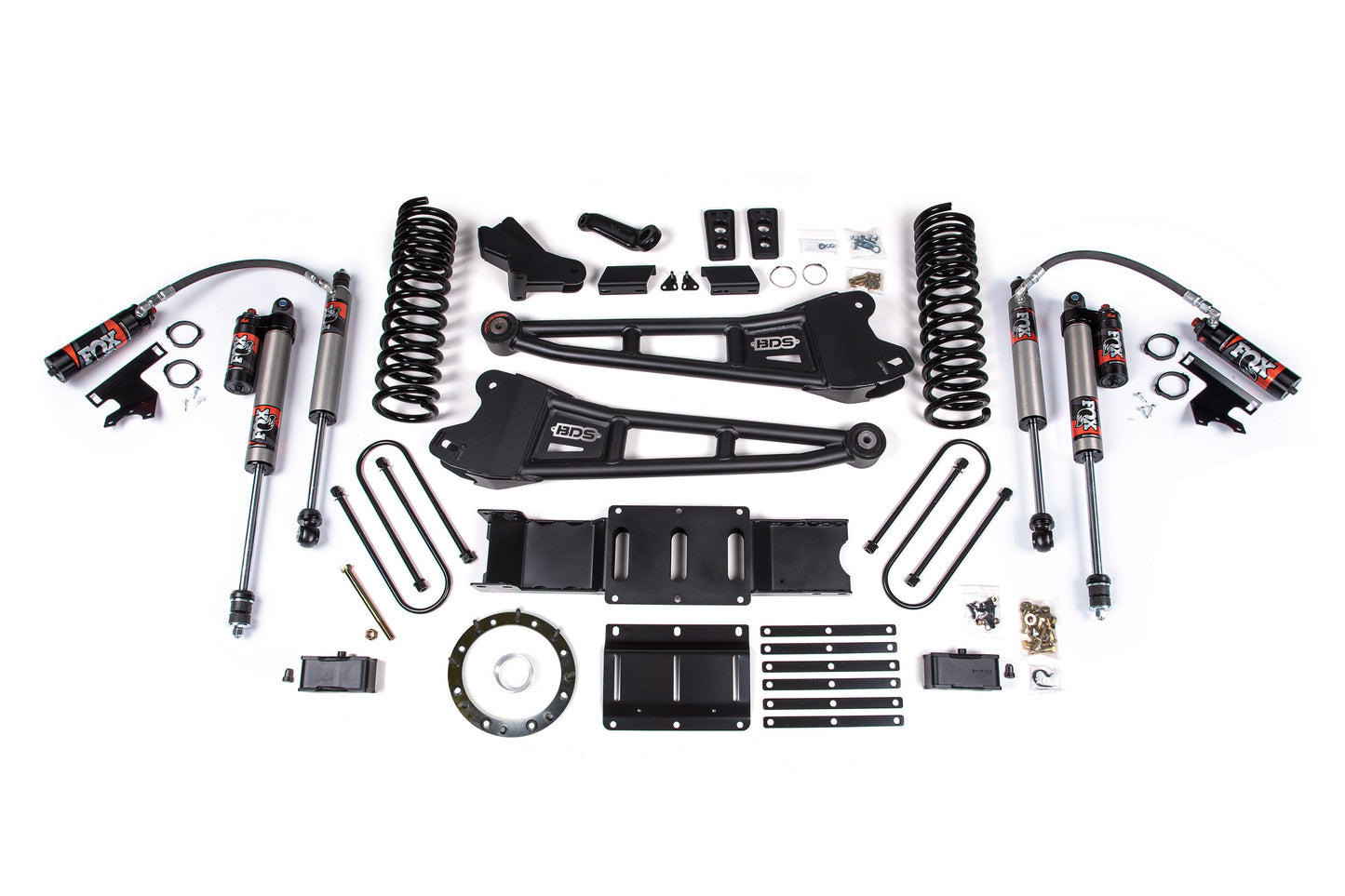

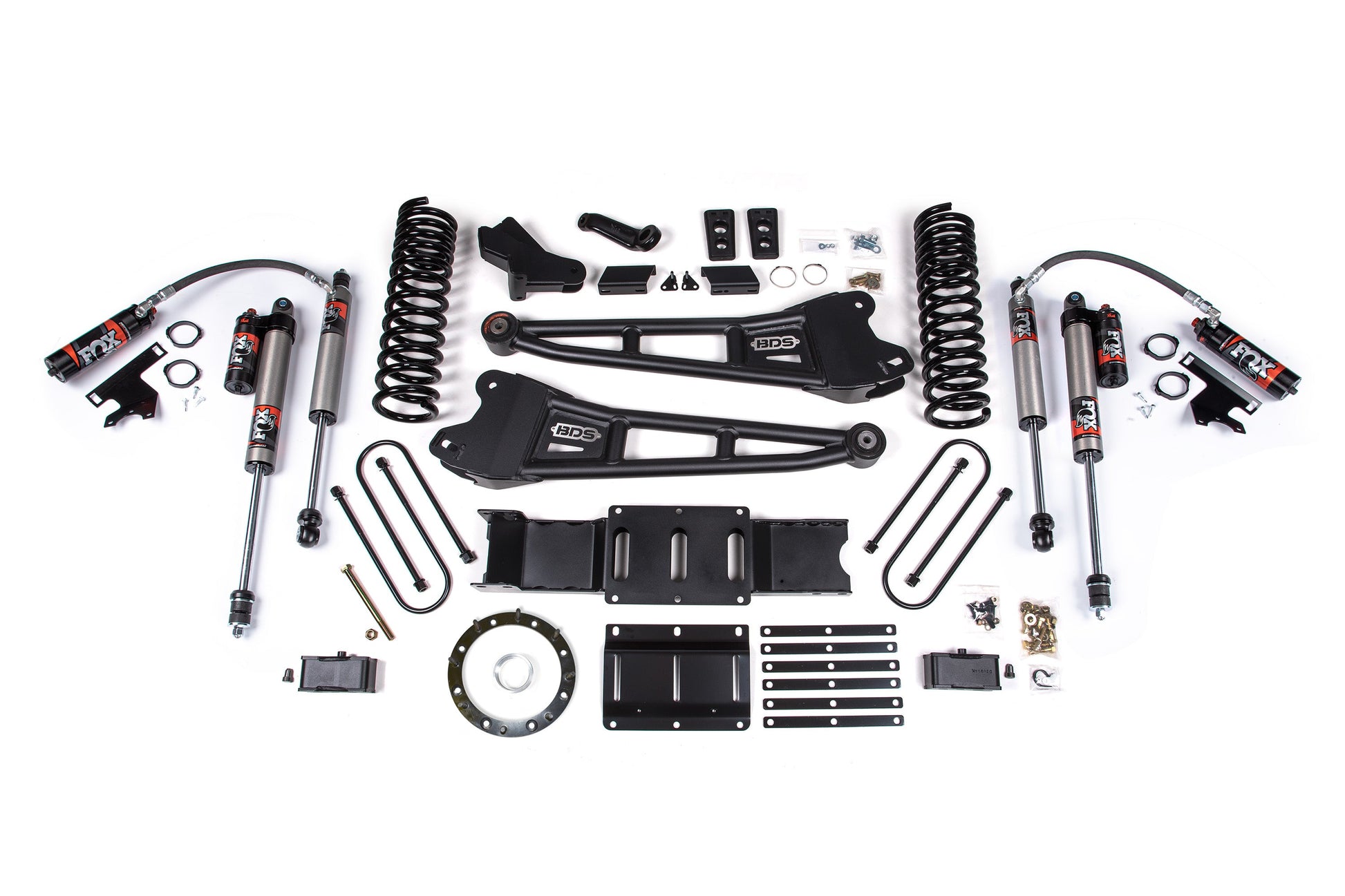

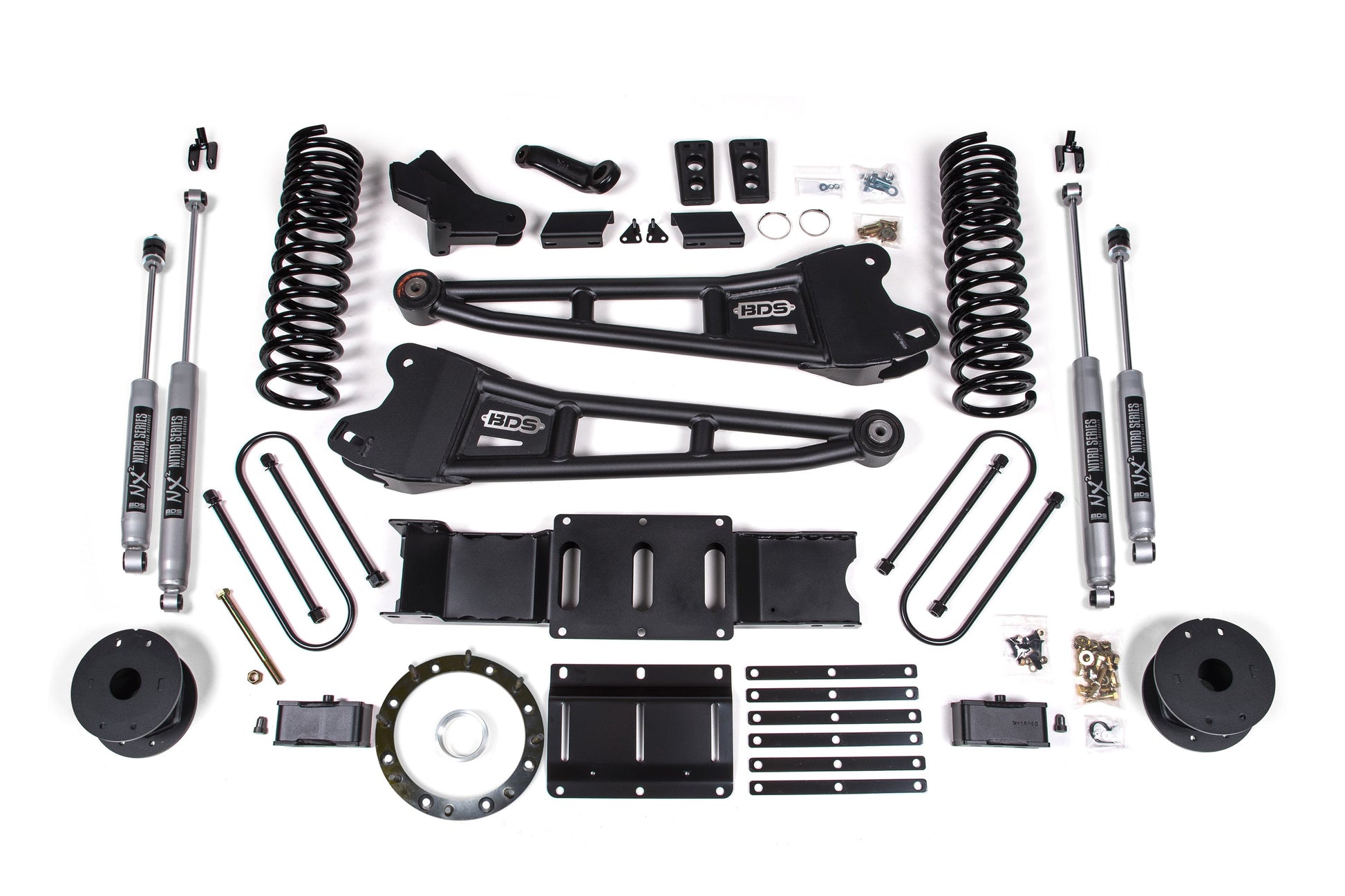

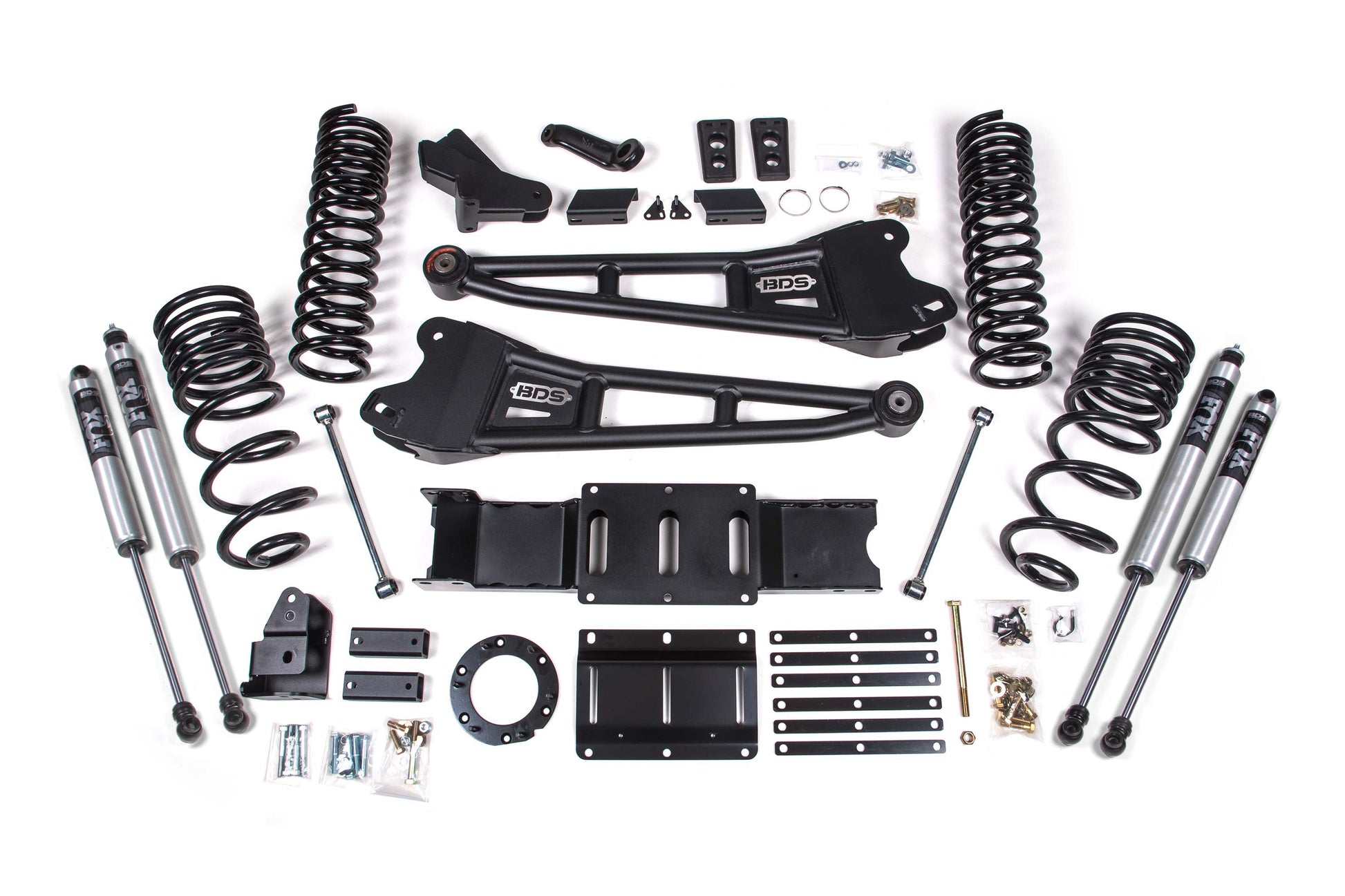

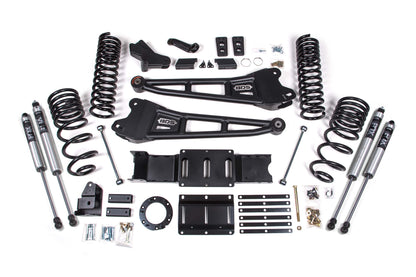

Up front the lift kit includes gas-specific
Pro-Ride coil springs, 4-Link control arms and conversion brackets, forged drop
pitman arm and track bar bracket for steering correction, sway bar relocation,
brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.
At
this height, the transfer case needs to be indexed to allow use of the factory
front driveshaft so an indexing ring and new transmission crossmember are
supplied. In the rear this kit utilizes a high-strength steel lift block,
longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.
A DEF tank relocation bracket(part# 122409) is required for this kit to work with Dually or Mega Cab Models with Aisin Transmissions (8-bolt).
Exhaust modification is required to clear the front
driveshaft. The vehicle can be driven w/o a front driveshaft to an exhaust
shop. Vehicles equipped with a Manual T-case, requires BDS122422 Manual transfer
case shifter extension
Vehicles equipped with a 2-piece rear drive
shaft (carrier bearing), require BDS122406 Carrier bearing drop.
