5.5 Inch Lift Kit | FOX 2.5 Coil-Over | Chevy Colorado or GMC Canyon (15-22) 4WD

$10,309.95 AUD

Coil Over Option: FOX 2.5 Coil-Overs with DSC Adjuster

Coil Over Option: FOX 2.5 Coil-Overs with DSC Adjuster
FOX 2.5 Coil-Overs with DSC Adjuster
SKU: BDS722FDSC
Availability: In Stock Pre order Available for Air Freight or Pre-Order
Overview

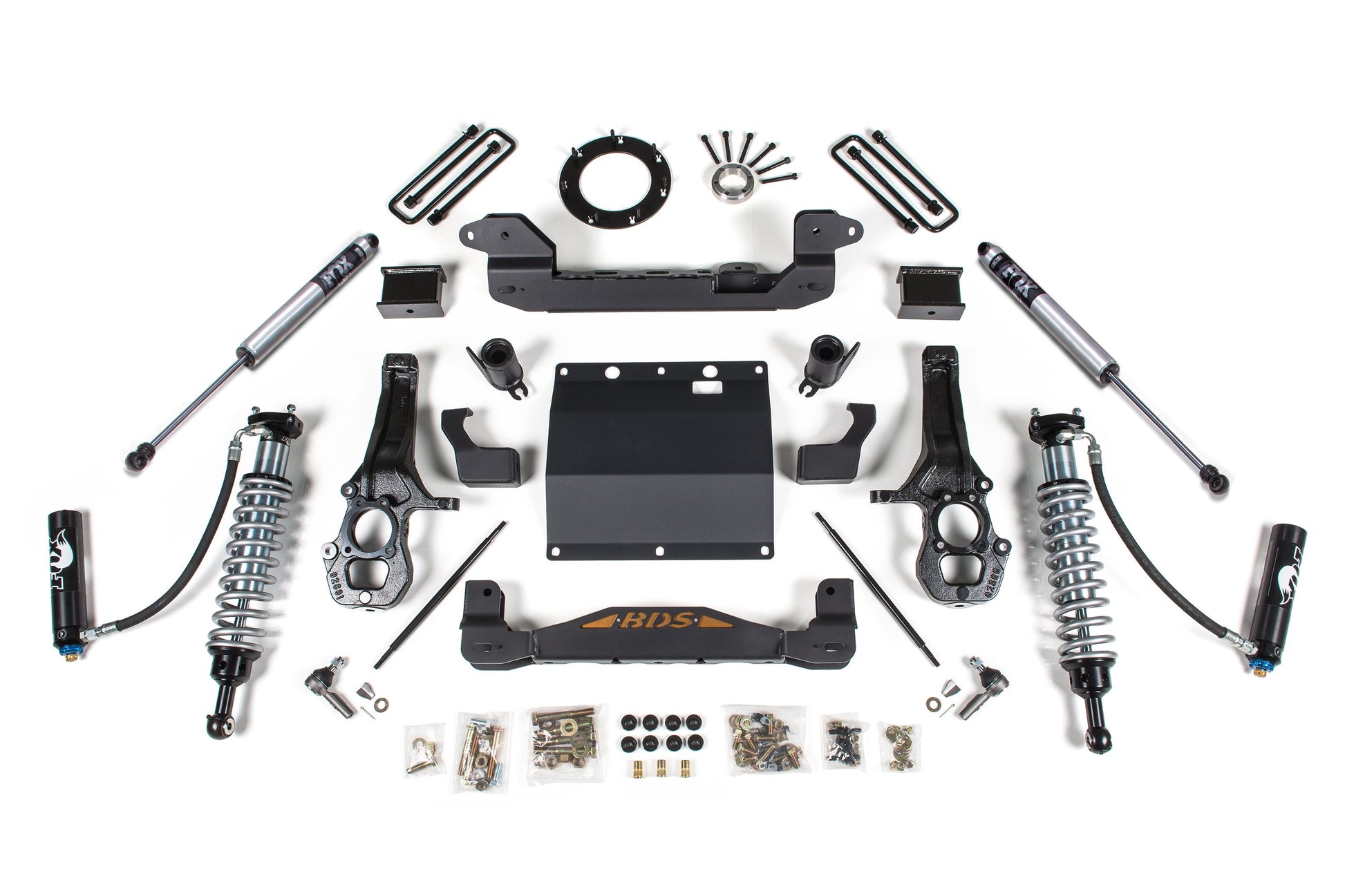

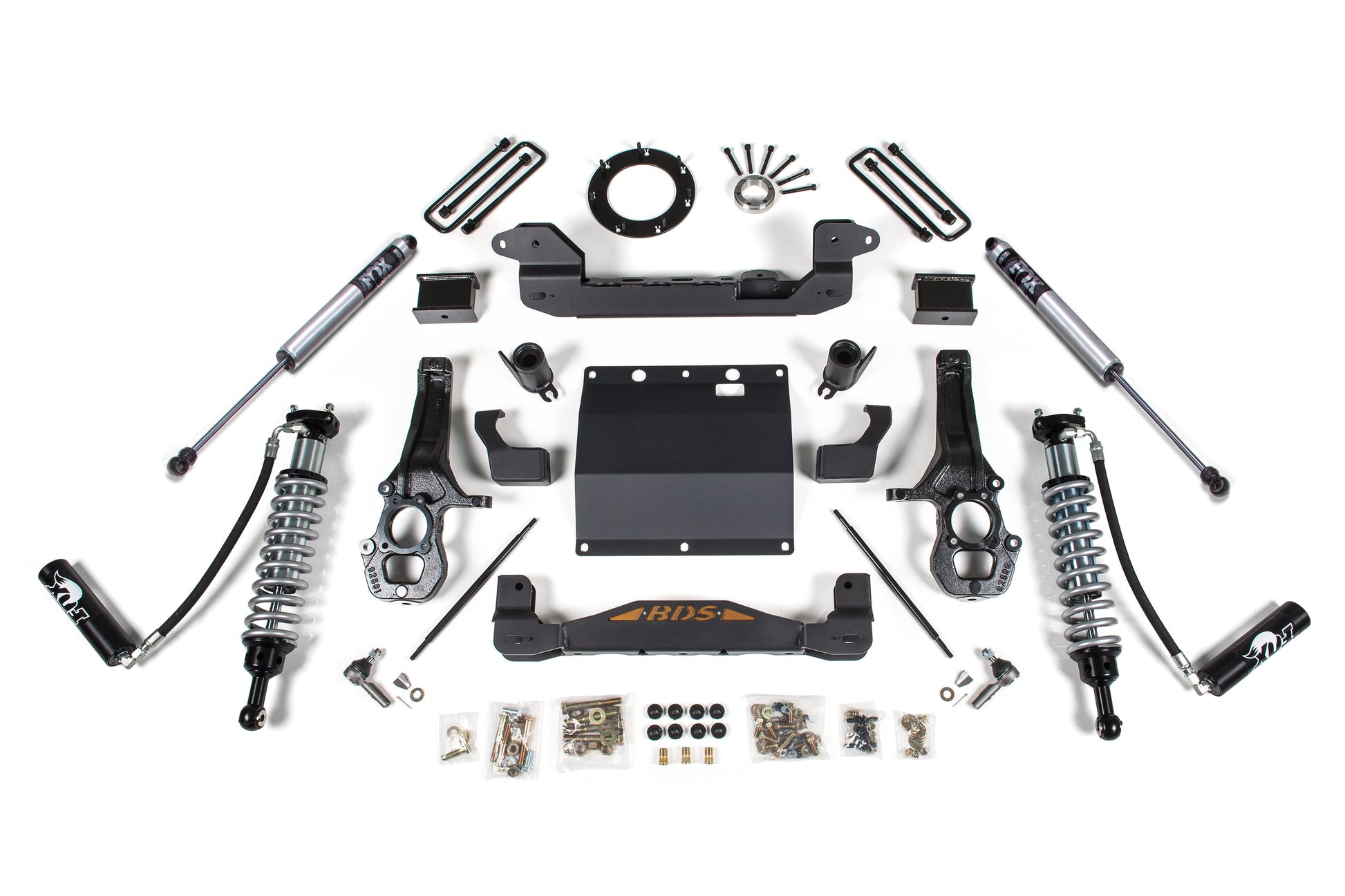

Built to outperform, upgrade your Chevy Colorado and GMC Canyon 4WD truck by installing a 5.5-inch suspension lift kit with FOX 2.5 Coil-over shocks by BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires. These kits feature proprietary FOX 2.5 coil-over shocks designed specifically to bolt-on performance for increase travel and the ability to soak up the roughest terrain along with smooth on-road comfort.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes FOX 2.5 coil-over shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar links, bump stop extensions, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers a heavy duty fabricated lift block to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts and precision tuned FOX 2.0 Performance Series shocks for the best ride on and off road.

FOX 2.5 Coil-Overs

FOX 2.5 coil-overs offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter coil-overs are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain.

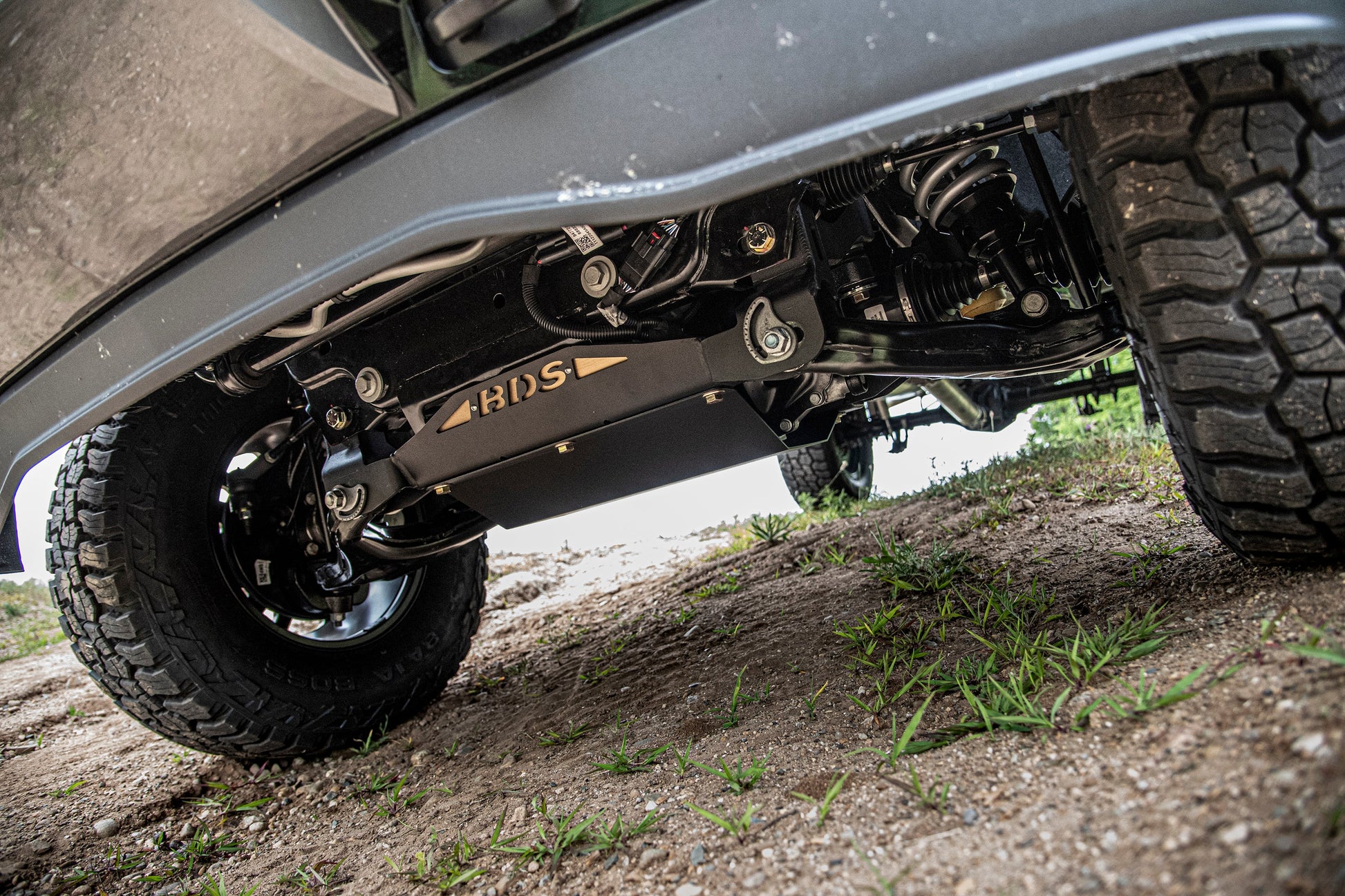

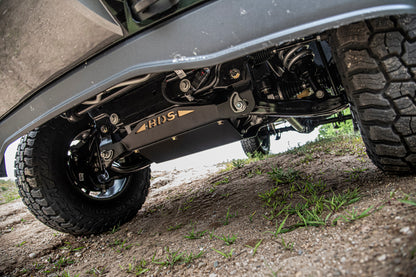

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

Important Notes
  1. Inner fender trimming is required.
  2. Minor welding is required.
  3. The electronically assisted power steering system is sensitive to out-of-round, unbalanced, and more aggressive tread pattern tires. High speed steering wheel feedback can occur.
  4. The actual ride height on C/O kits is closer to 6'' of lift.
  5. Stock 17" & 18" wheels can not be reinstalled with the lift kit. Aftermarket 20" wheels with a maximum of 5.25" Backspacing are recommended - certain wheel and tire combinations will require weld on steering stops, these are included in the kit. See end of inst. sheet for details on installation.
  6. Will not fit ZR2 Models.
  7. Will fit diesel models.
Installation
Installation Guide/s: Download Guide

Est. Install Time: 8 hrs

Installation Difficulty:
Difficult

Tools Required: Cut Off Wheel or Equiv., Reciprocating Saw, Welding Equipment
Features
  • FOX 2.5 Factory Race series coilovers for improved ride quality, performance, and capability
  • High clearance crossmember design maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • High-strength replacement upper control arms provide durability and serviceability
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • Factory Protection Plus drivetrain warranty included
