6.5 inch long arm lift kit | Jeep Wrangler TJ and TJ Rubicon | 1997-2006

$5,449.95 AUD
Ask a Question
SKU: BDS467H
Availability: In Stock Pre order Available for Air Freight or Pre-Order
Overview

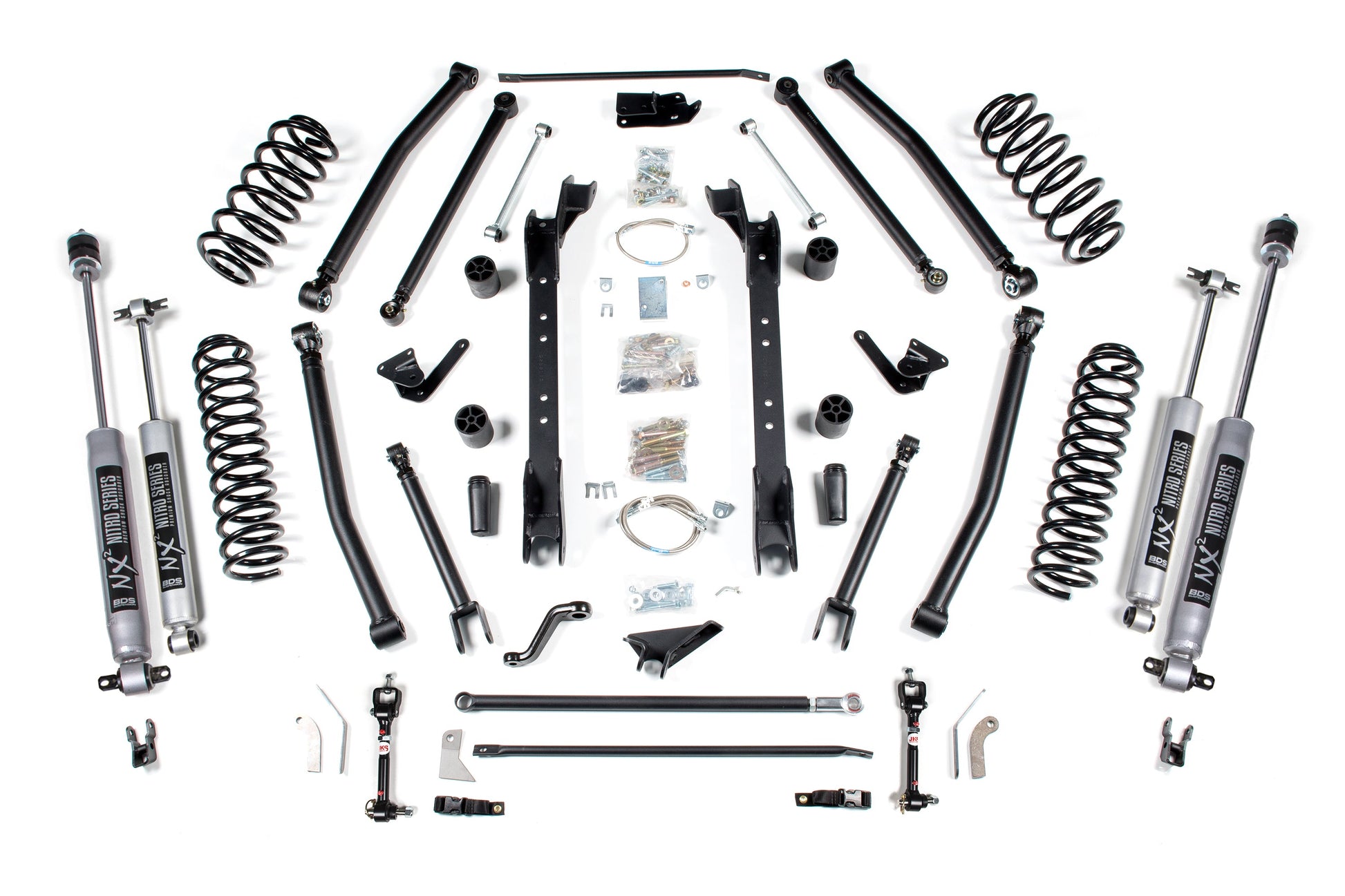

This lift kit comes with four new Pro-Ride Coil Springs capable of full coil bind. The box kit includes a pitman arm for steering correction, adjustable front track bar with a track bar relocation system to match the track bar angles with the steering angles. Four long lower arms are included with flex ends to ensure off road performance.

Important Notes
  • A slip yoke eliminator kit and CV style rear drive shaft is required.
  • May require exhaust modification.
  • Some welding required.
  • Long Arm systems also fit short wheel base Rubicon models (not Unlimited models)
Installation
Installation Guide/s: Download Guide

Est. Install Time: 10 hrs

Installation Difficulty:

Tools Required:
Specifications
  • Front Lift Method : Coil Spring
  • Rear Lift Method : Coil Springs
  • Shocks Included : No
  • Front Lift Height : 6"
  • Rear Lift Height : 6"
Features

All new long upper arms are included that are adjustable to fine tune the rear pinion angles as well as the front caster angles, D.O.T. approved Kevlar lined stainless steel brake lines for front and rear, ultimate sway bar disconnects for the front and extended links for the rear, and NX² series shocks.
