6 Inch Lift Kit | Toyota Tacoma (16-23) 4WD

From $4,739.95 AUD

Rear Shock Option: FOX 2.0 Performance Series

Rear Shock Option: FOX 2.0 Performance Series
FOX 2.0 Performance Series
NX2 Nitro Series
$5,399.95 AUD
SKU: BDS823FS
Availability: In Stock Pre order Available for Air Freight or Pre-Order
Overview

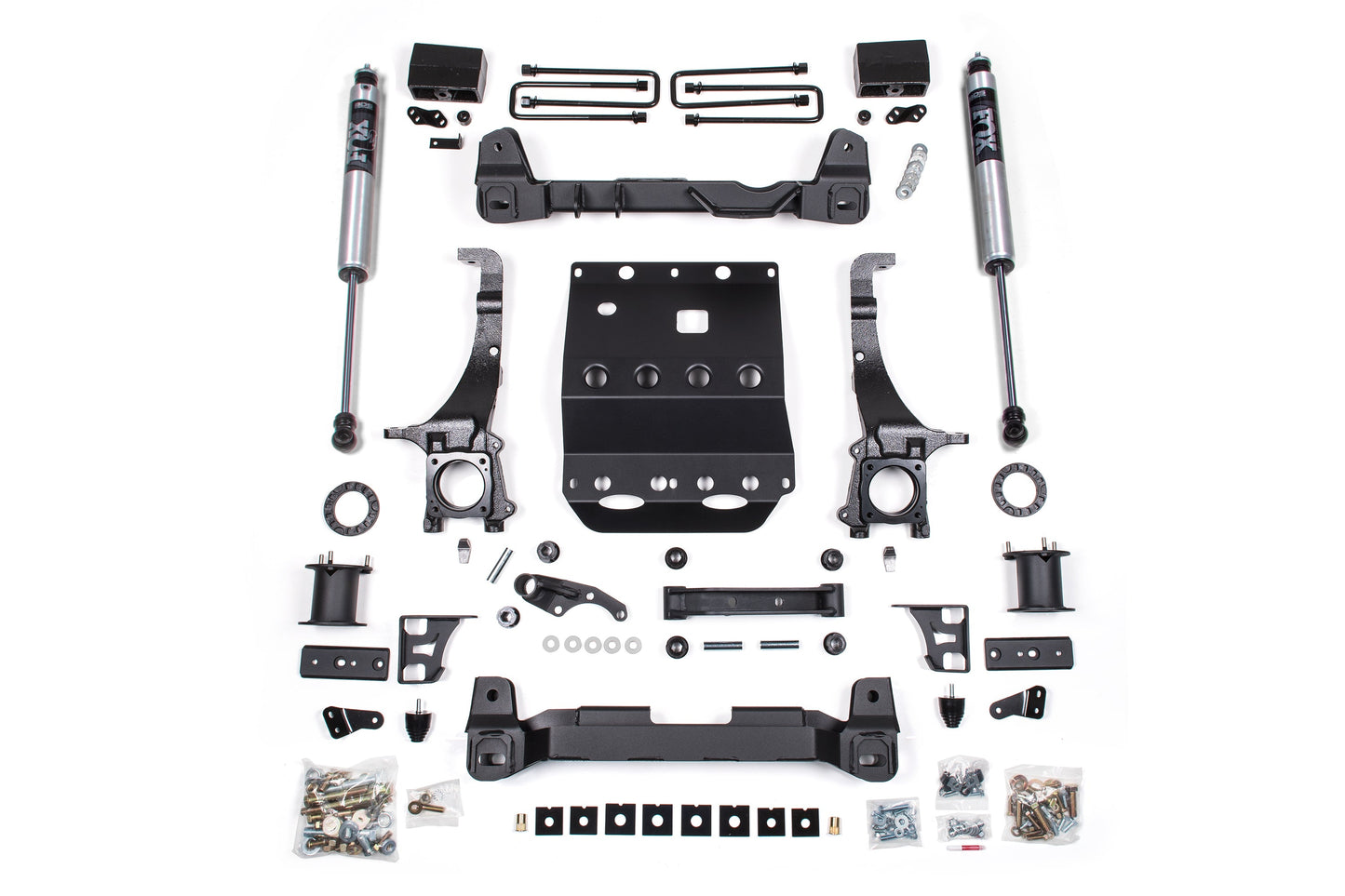

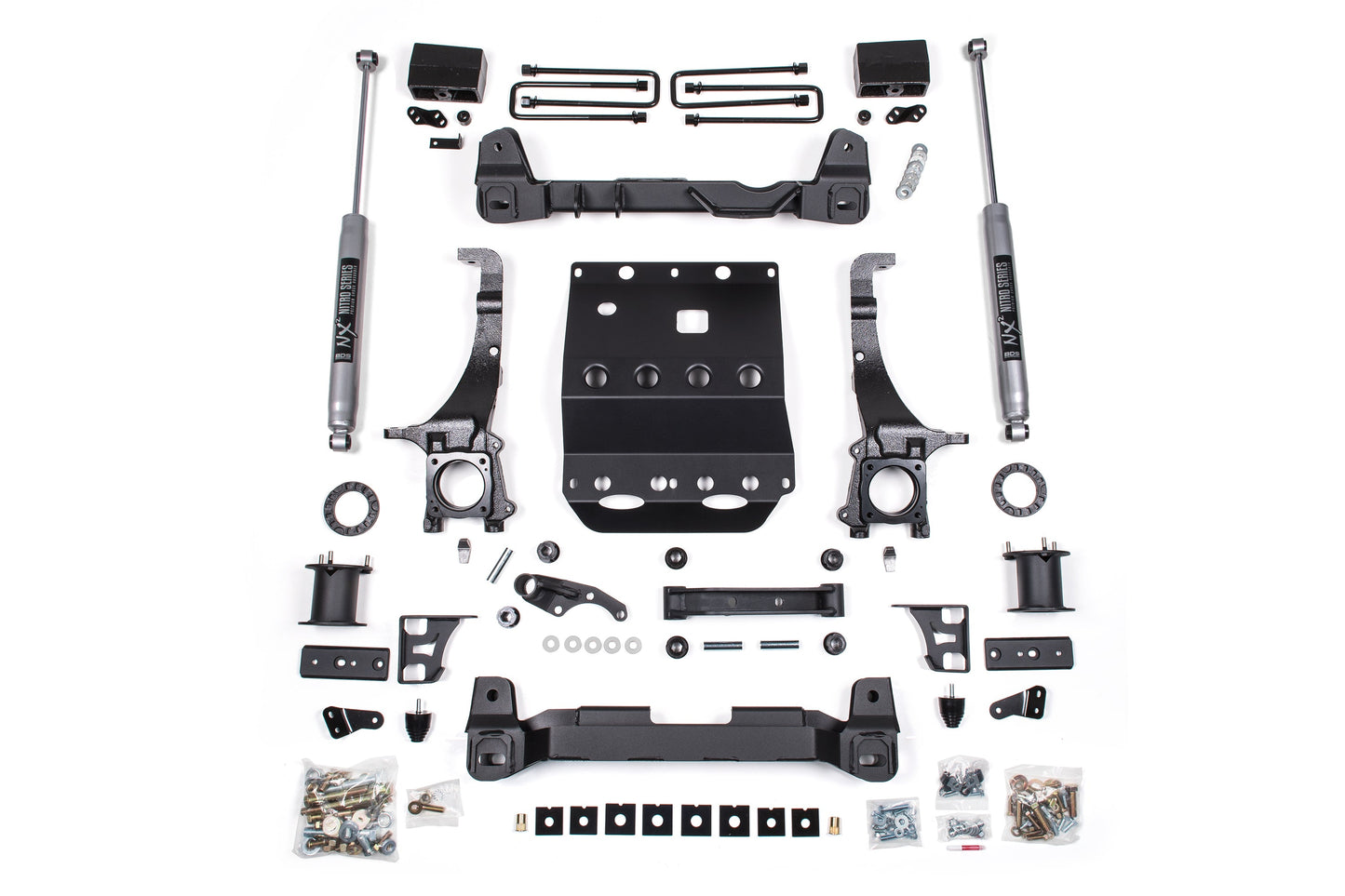

BDS steps up the performance and capability of the 2016-2023 Toyota Tacoma 4WD trucks with a 6-inch suspension lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles utilizing factory tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, lower control arm cams, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear, this kit utilizes heavy duty cast steel lift blocks, brake line bracket and longer u-bolts. The rear of this kit is rounded out with FOX 2.0 IFP performance series gas shocks to offer improved damper performance.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.

Important Notes
  1. Will not work on TRD Pro Models
  2. Minor welding required
  3. Requires frame bracket modification
  4. Strut compressor required for installation
  5. Stock wheels cannot be reinstalled
  6. System will work on 2WD PreRunner models
  7. Can not use 17" wheels.
  8. Fox Shocks required for 2013-2020 models
Installation
Installation Guide/s: Download Guide

Est. Install Time: 4-5 hrs

Installation Difficulty:
Moderate

Tools Required: Reciprocating Saw, Welding Equipment
Features
  • High clearance crossmember design maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • FOX performance series IFP gas shocks to improved ride and offroad performance
  • Factory Protection Plus drivetrain warranty included
