6 Inch Lift Kit w/ Radius Arm | Ford F250/F350 Super Duty (05-07) 4WD | Diesel

From $3,799.95 AUD

Rear Lift Option: 4 Inch Block Kit Without Overload

Rear Lift Option: 4 Inch Block Kit Without Overload
4 Inch Block Kit Without Overload
4 Inch Block Kit + Add-A-Leaf Without Overload
4 Inch Block Kit With Overload
4 Inch Block Kit + Add-A-Leaf With Overload
6 Inch Leaf Springs

Shock Option: NX2 Nitro Series

Shock Option: NX2 Nitro Series
NX2 Nitro Series
FOX 2.0 Performance Series
$3,799.95 AUD
SKU: BDS1943H
Availability: In Stock Pre order Available for Air Freight or Pre-Order
Overview

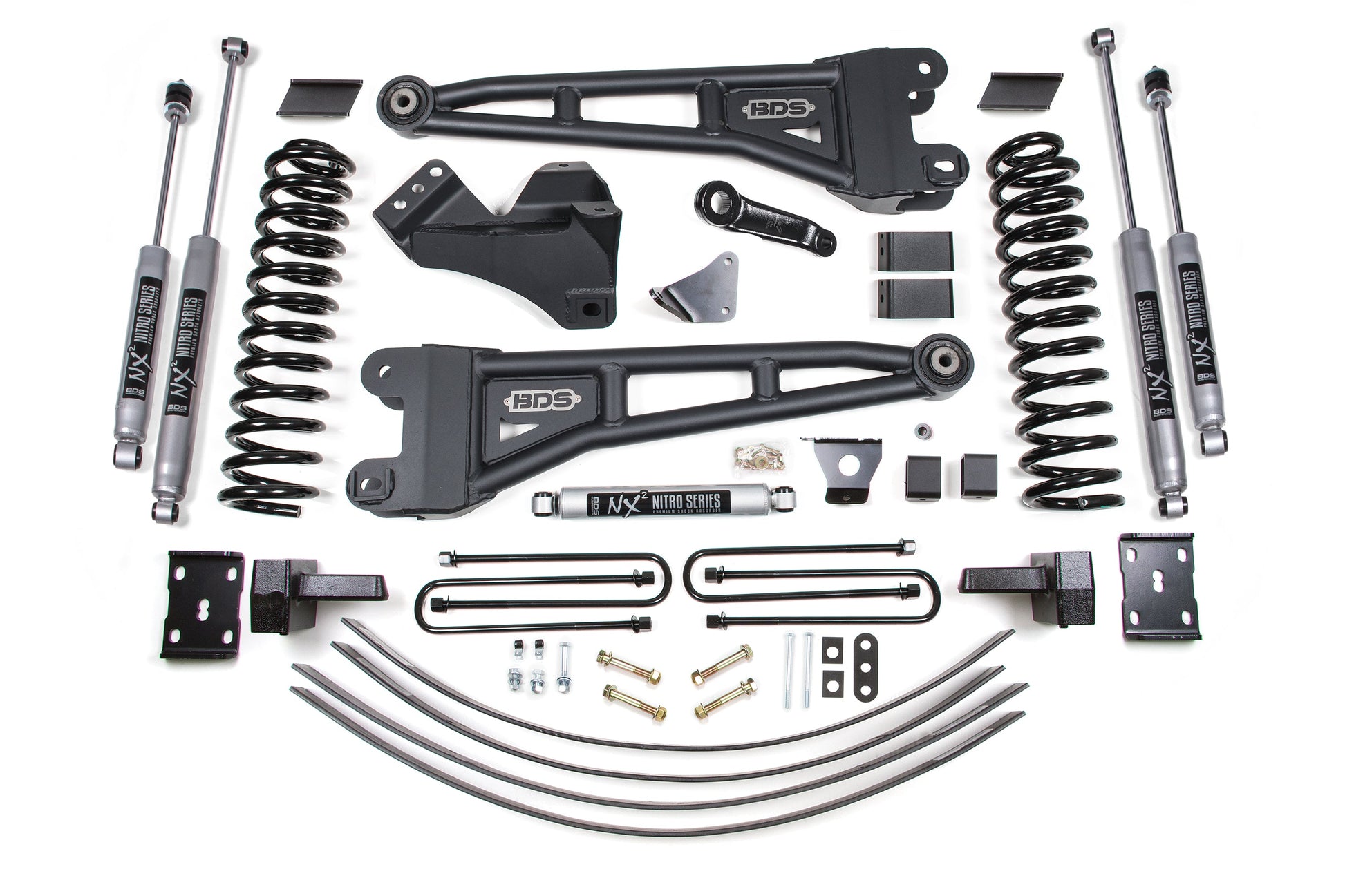

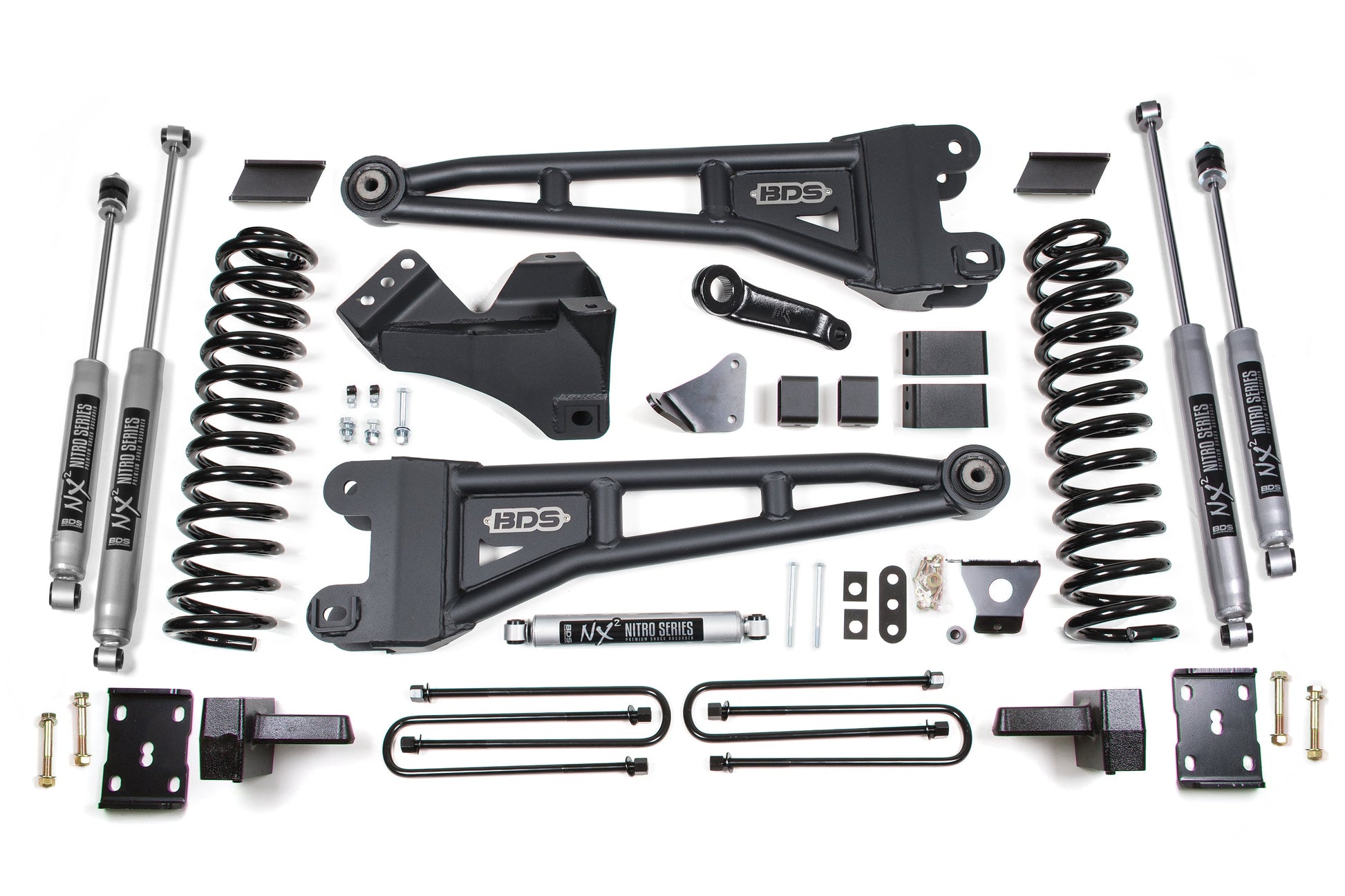

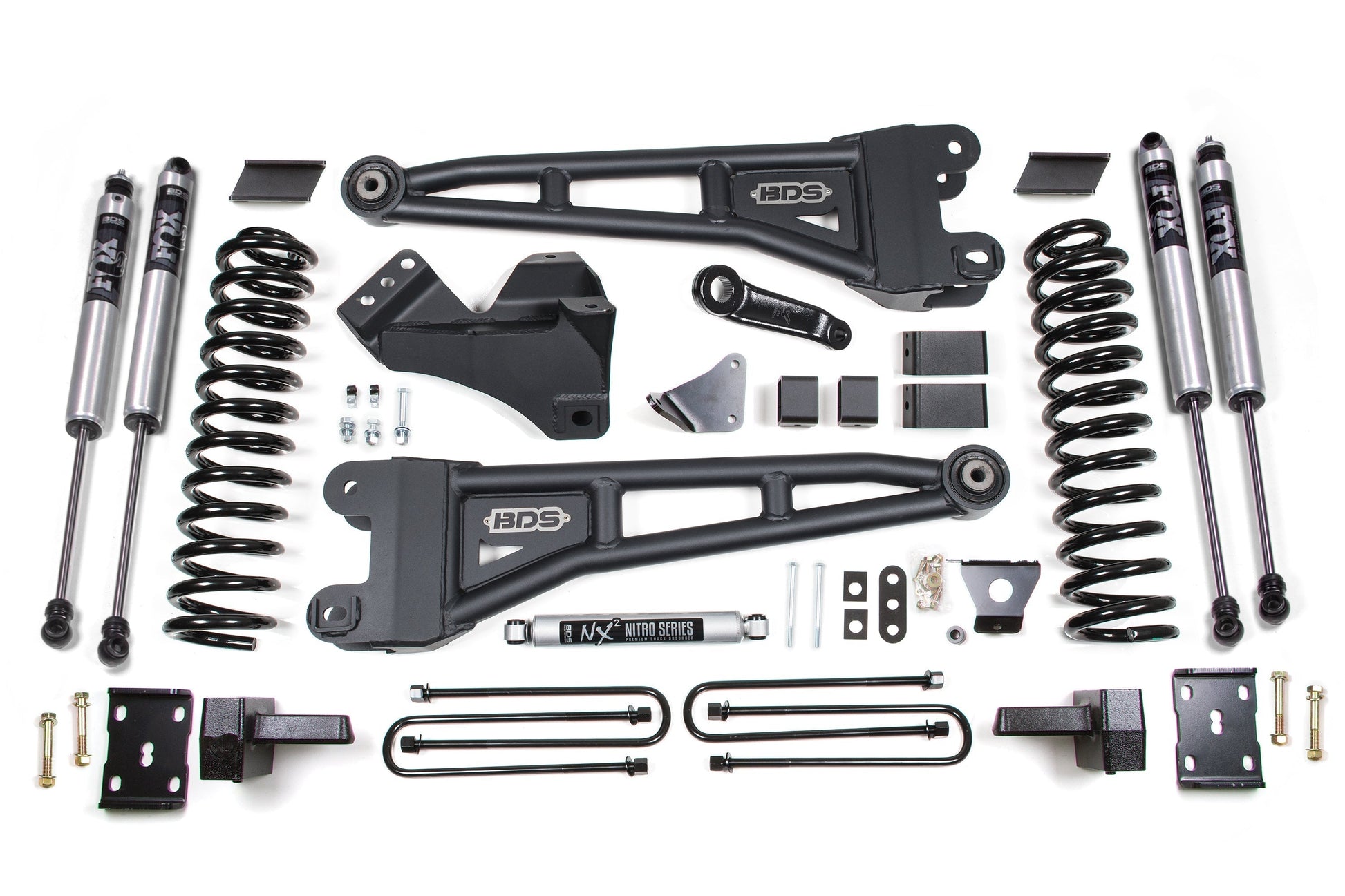

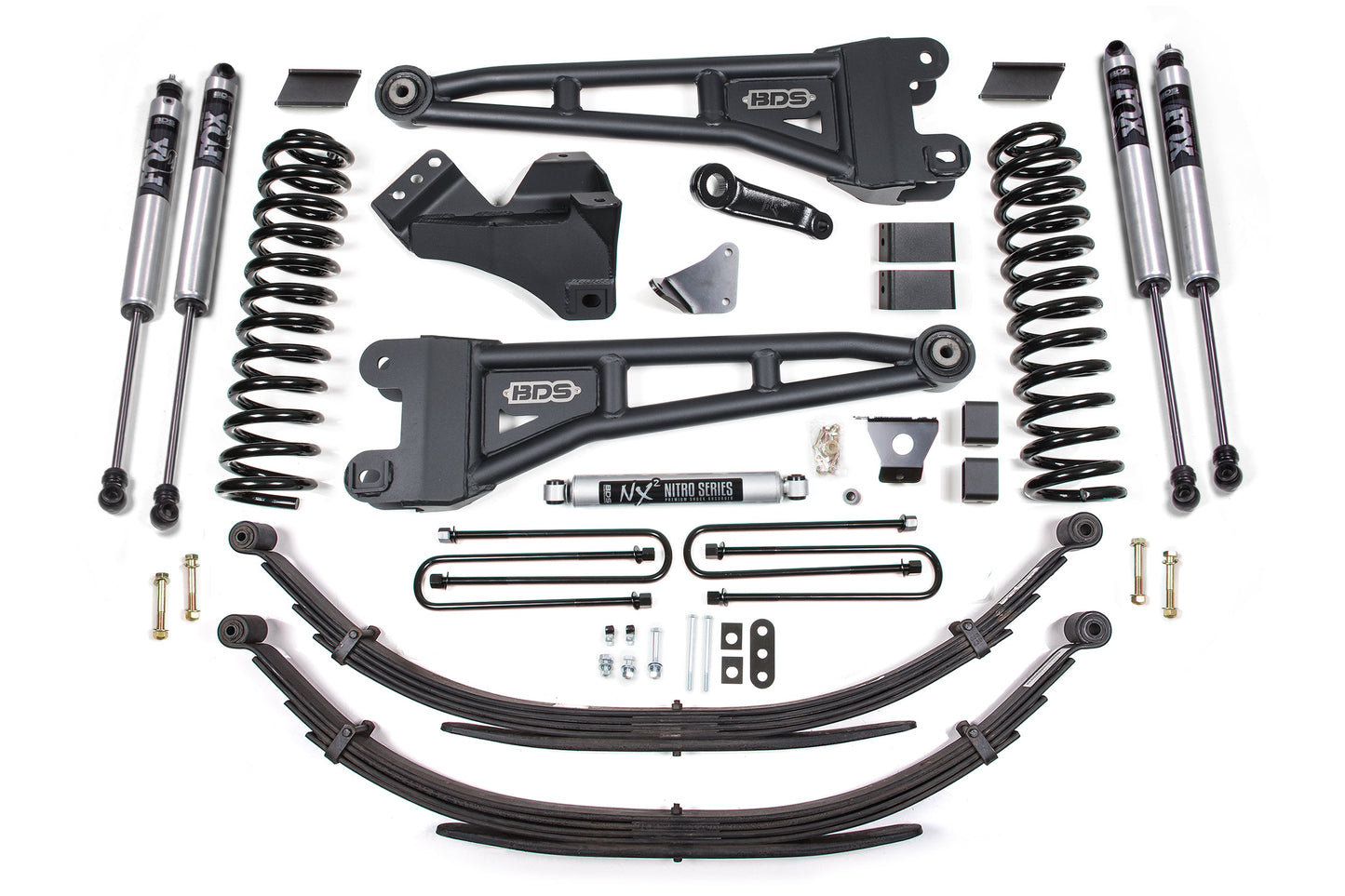

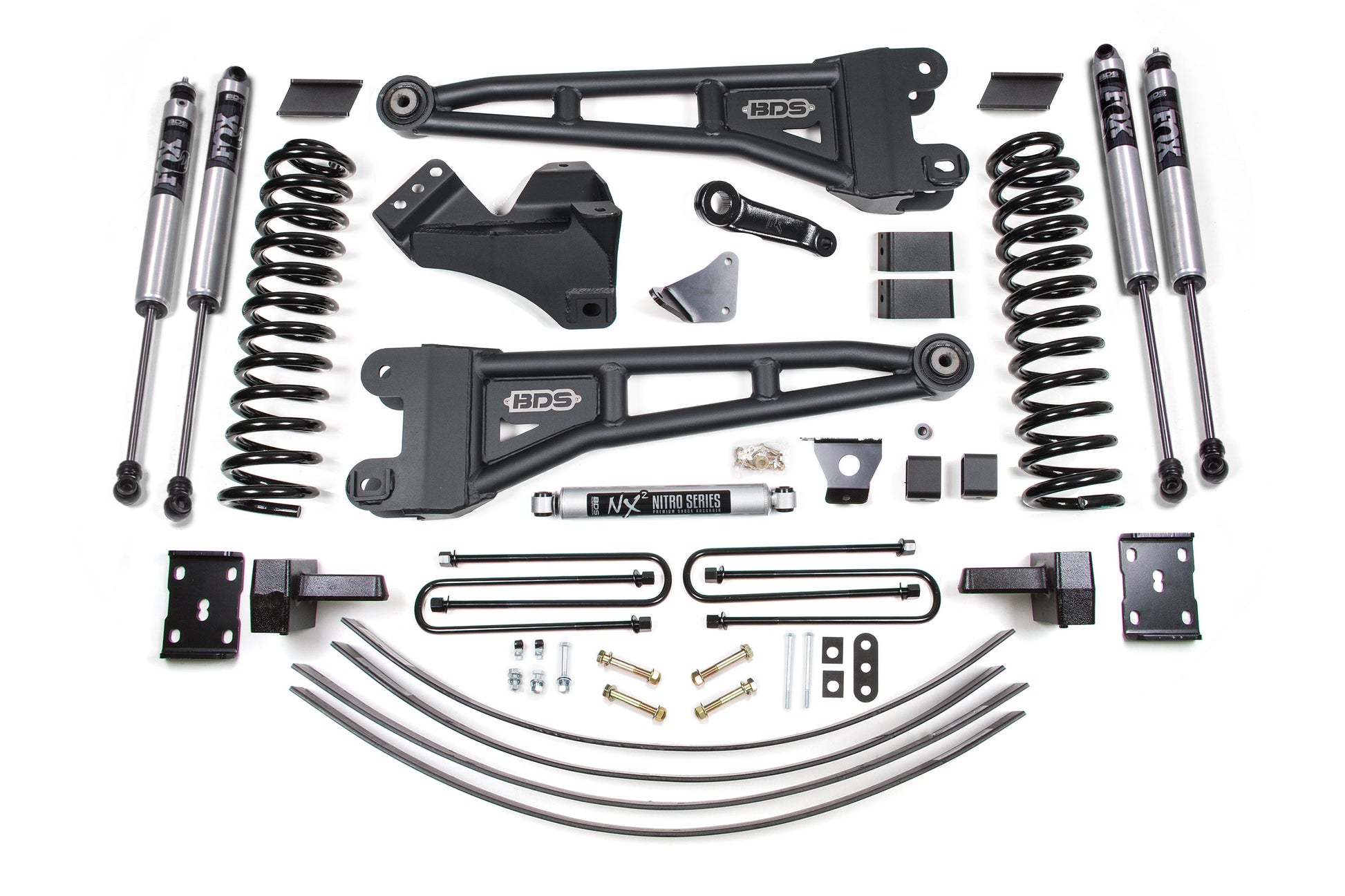

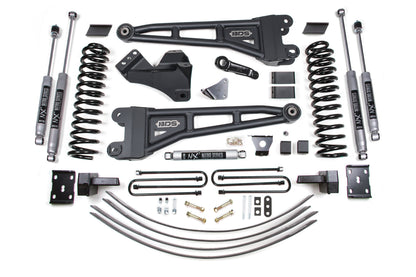

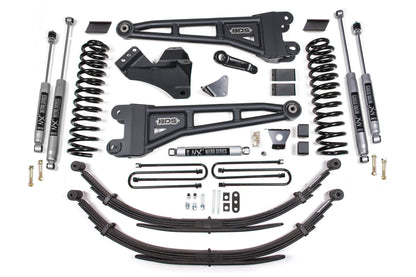

Easily fit 37 inch tires on your 2005-2007 Ford Super Duty F250 and F350 diesel truck by installing this 6-inch radius arm lift kit from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

Up front the lift kit includes diesel-specific 6-inch lift Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned NX2 or FOX nitrogen charged shocks.

In the rear the base kit utilizes a high strength lift blocks, longer u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Important Notes
  1. Removal of the factory block is required.
  2. Installation of the rear block kit will result in a "pre-runner" look with the rear of the vehicle 2" lower than the front. To get a level stance you must upgrade to the rear leaf spring option.
  3. These trucks were manufactured with and without top mounted overload springs on the rear leaf springs. A top mounted overload is an extra leaf separate from the pack that set above the main leaf. You will need to identify which you have before ordering.
  4. If your vehicle is equipped with a carrier bearing, you will need to order 123402 in the options section.
  5. Although extremely rare, front driveline vibration may occur.
  6. Front exhaust modification may be required to clear the front driveshaft on gas models.
  7. U-bolts will not fit dually models.
  8. Dropped pitman arm will not fit 10 lug wide track F350 models.
Installation
Installation Guide/s: Download Guide

Est. Install Time: 8 hrs

Installation Difficulty:
Moderate

Tools Required: Grinder/Sanding Disc, Drill / Bit Set, Pitman Arm Puller
Features
  • Easy, 100% Bolt-on installation
  • Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
  • Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Fabricated steel blocks provide level stance from front to rear
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
