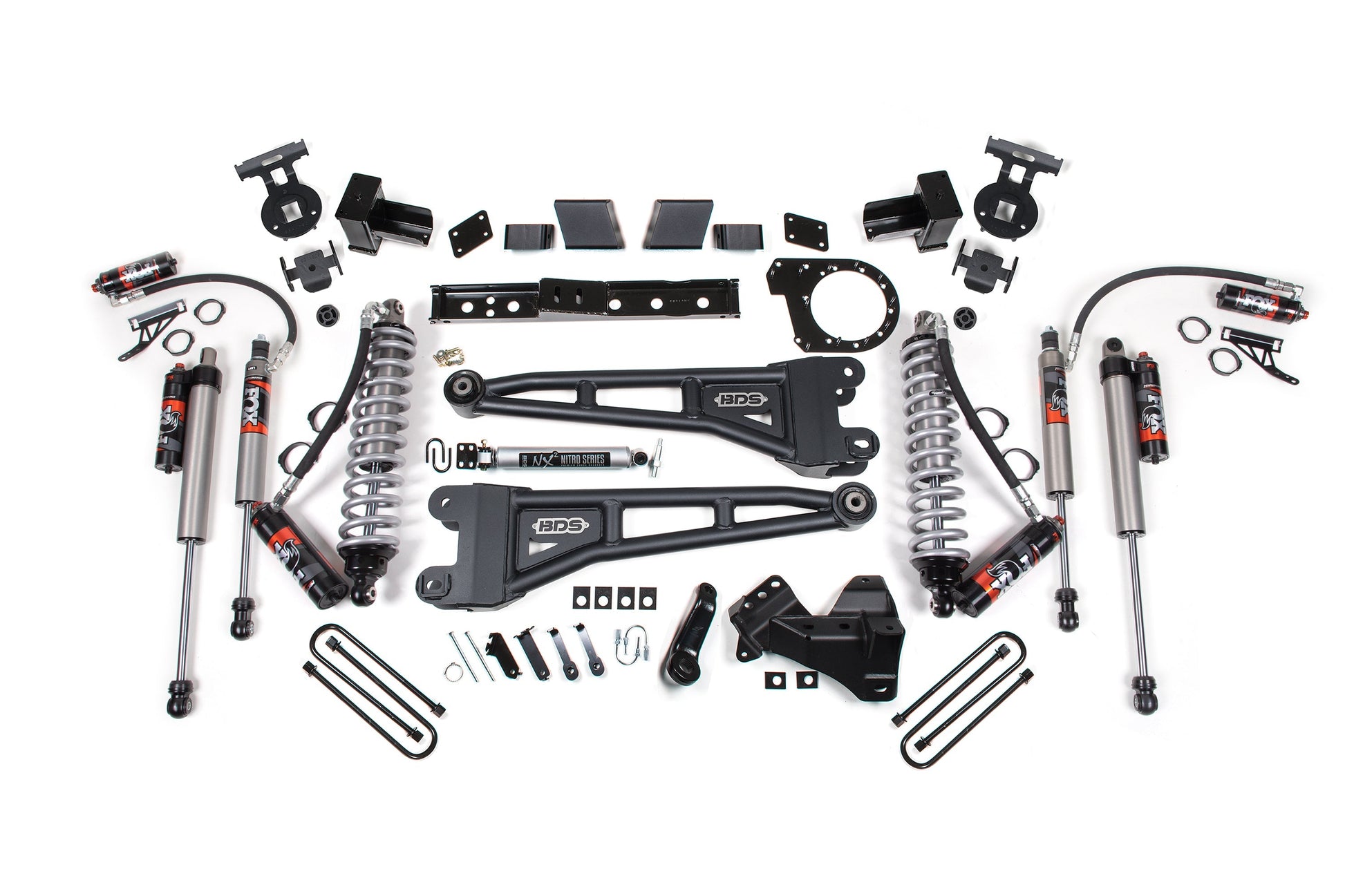

6 Inch Lift Kit w/ Radius Arm | FOX 2.5 Performance Elite Coil-Over Conversion | Ford F250/F350 Super Duty (17-19) 4WD | Diesel
Raise the bar on your 2017-2019 Ford F250 and F350 Super Duty diesel truck with this 6-inch 4-Link lift kit and FOX Performance Elite coil-over conversion from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 38" tires.
Up front the lift kit includes FOX 2.5 coil-over shocks and mounting brackets, 4-Link control arm conversion, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, and brake line brackets.
At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of FOX Performance shocks.
4-Link Conversion
Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength ¼-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.
FOX Performance Elite Coil-Over
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
T-Case Indexing
At this height, driveline adjustments are necessary to allow the use of the factory driveshafts so a precision-built transfer-case indexing ring featuring ARP-studs can clock the transfer case and improve the front driveline operating angle. Additionally, a high clearance transmission crossmember supplied to allow sufficient clearance.
- If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (pn# 123402)
- 38 x 13.50 tires may require minor trimming.
- Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main. Be sure to order the correct option when customizing your kit.
- The transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.
- If your truck is equipped with a factory rear sway bar add rear sway bar links (pn# 123808)
- The indexing ring is not designed for manual shift transfer case models. Modification of the shift cable mount will be required.
Est. Install Time: 10 hrs
Installation Difficulty: Difficult
Tools Required: 30mm Socket, 40mm Socket, Drill / Bit Set, Pitman Arm Puller
- FOX 2.5 Coil-Over mounts in factory coil bucket location
- Adds additional secondary FOX 2.0 shock for max performance
- Eibach coil springs ride smooth through the roughest terrain
- Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
- Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
- Fabricated steel blocks provide level stance from front to rear
- FOX shocks are fully serviceable and resistant to corrosion and harsh environments
