8 Inch Lift Kit | Chevy/GMC 3/4 Ton Truck/Suburban (73-76) 4WD

$3,859.95 AUD
SKU: BDS120H
Availability: In Stock Pre order Available for Air Freight or Pre-Order
Overview

Go big with your 1973-1976 Chevy and GMC 3/4 ton truck or SUV to raise the bar to new heights with this 8-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability of the K20 and K25, this kit includes everything necessary to set your truck up right with clearance for up to 38" tires.

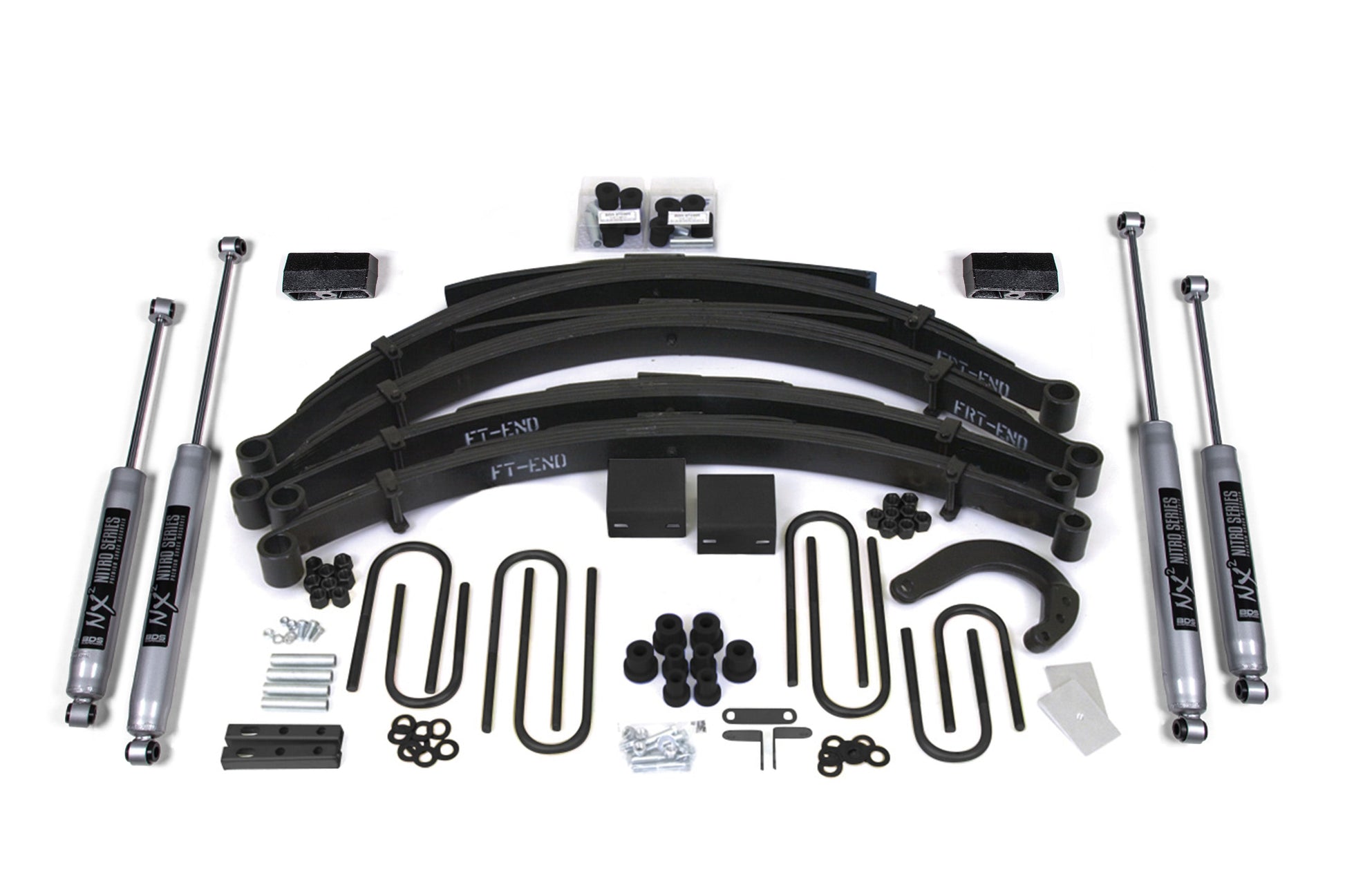

Up front the lift kit includes Glide-Ride leaf springs, 4" steering arm and 3" steering block for steering correction, brake line brackets, sway bar drop brackets and precision tuned NX2 nitrogen charged shocks. In the rear this kit utilizes a set of Glide-Ride leaf springs for the ultimate performance on and off road, new u-bolts and a matching set of NX2 Nitro shocks.

Glide-Ride Leaf Springs

Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.

Important Notes
  1. The 3/4 ton commonly came with a factory 56" eye to eye rear leaf spring. However, some were produced with a 52" rear spring. This kit will not work with 52" rear springs. If ordering rear leaf springs, be sure to measure your factory rear spring before ordering.
  2. Both driveshafts may need to be lengthened.
  3. Aftermarket extended brake lines are required for installation.
  4. Exhaust modification may be required to clear the front driveshaft.
  5. If your vehicle is equipped with a front anti-sway bar, order the anti-sway bar shackle link kit listed in the accessories.
  6. #001608 come with OE style rubber bushings installed.
Installation
Installation Guide/s: Download Guide

Est. Install Time: 8 hrs

Installation Difficulty:
VeryDifficult

Tools Required: Ball Joint Separation Tool, Cut-off Tool
Specifications
  • Front Lift Method : Leaf Spring
  • Rear Lift Method : Springs
  • Shocks Included : Yes
  • Front Lift Height : 8"
  • Rear Lift Height : 6"
Features
  • Easy, 100% Bolt-on installation
  • Glideride leaf springs to provide full lift height and increased capacity
  • New steering arm maintains proper steering angles for improved handling
  • Cast steel blocks and add-a-leaf provide level stance from front to rear
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
