Belly Pan Skid Plate | Jeep Wrangler TJ (97-06)

$1,139.95 AUD
SKU: BDS124045
Availability: In Stock Pre order Available for Air Freight or Pre-Order
Overview

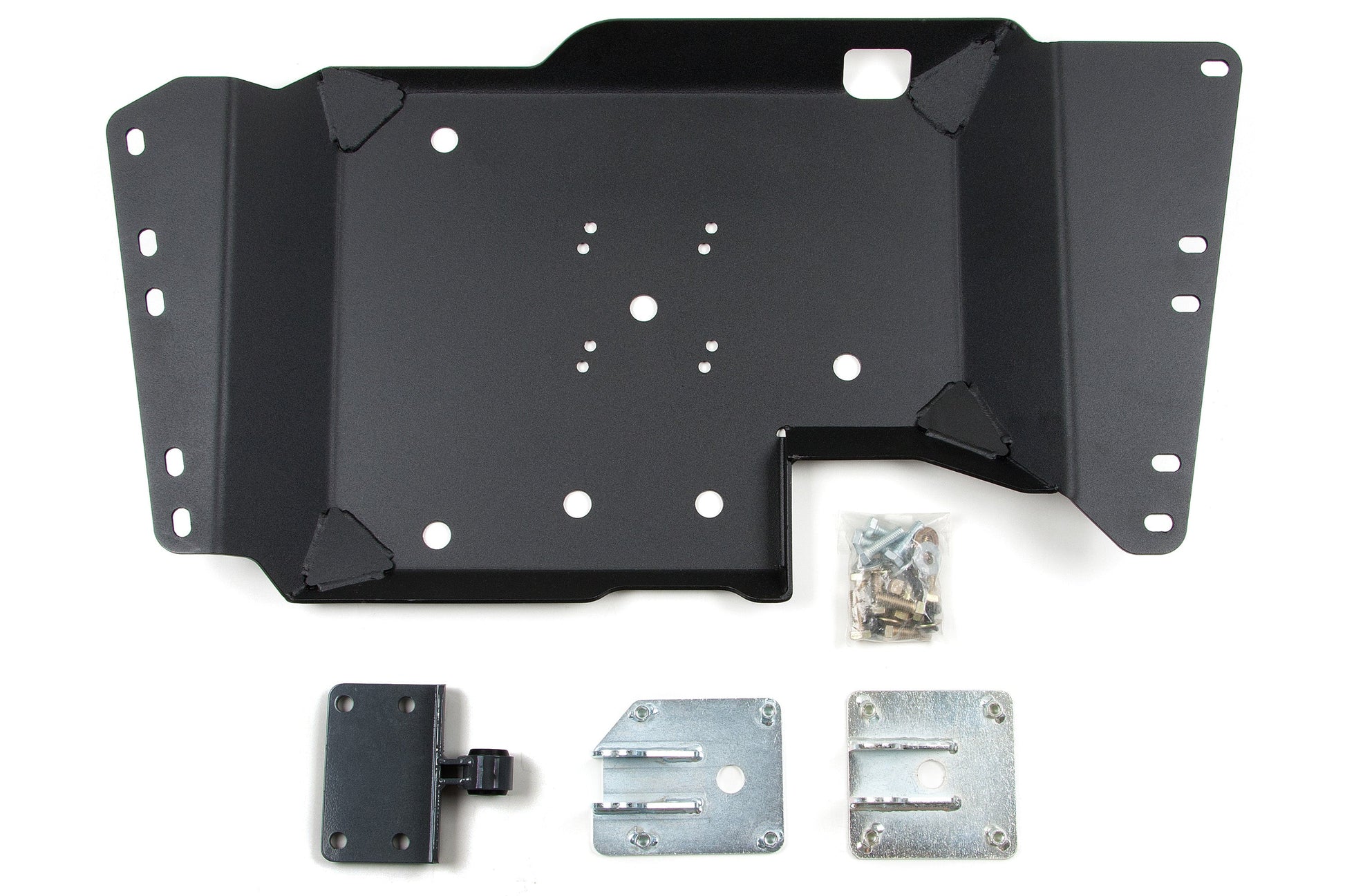

This innovative "belly up" style pan is made from 3/16" steel and ready for some serious abuse. The BDS belly pan increases ground clearance on the '02-06 models by 1-1/4" and by 1/2" on 97-02 models. Unlike other belly up pans on the market, the BDS system includes a new transmission mount. This allows for additional ground clearance without having to change the motor mounts like many systems require.

The pan is designed to fit both stock and BDS lifted applications. The pan will fit the Rubicon models with minor modifications. This pan will not work with a transfer case drop system and will not fit vehicles equipped with 4 cylinders. This pan will work on all 6 cylinder applications except '03-'06 automatics.

Important Notes
  1. This belly pan will not work on applications with a 4 cylinder motor.
  2. This pan will not fit '03-06 Automatic models with 6 cylinder motor.
  3. Exhaust modification to the hanger on the transmission mount may be required depending upon the model year / transmission.
Installation
Installation Guide/s: Download Guide

Est. Install Time: 1-2 hrs

Installation Difficulty:


Tools Required:
Features
  • Heavy-duty 3/16" steel plate design
  • Includes built-in new transmission mount
  • Stiffens chassis for maximum strength
