Direct fitment on 2022+ Toyota Tundra.
Allows you to mount one 18 inch light bar in the TRD Pro grille.
Compatible with TRD Pro Grille conversions.
CAD-designed for perfect fitment and OEM-like appearance.
Utilizes existing mounting points for easy installation no cutting or drilling required
Highly durable powdercoated steel construction.
Plug-and-play wiring harness included to power light bars.
Compact. The lightbar is based on a narrow-profile extruded housing to allow fitment in small and tight areas. At less than 42mm tall they'll fit in many places a traditional dual-row light bar won't while cutting total weight as well.
Focused. Thanks to the high-intensityLED chips coupled with our U.S. PATENT PENDING total internal reflection (TIR) optic the total intensity is far higher than a standard generic light bar. The TIR optic collects all of the light from the LED and directs it only where you need it drastically reducing glare and improving total efficiency.
Functional Patterns.
The Driving pattern was designed to supplement your high beams. Rather than a simple spot pattern the Stage Series Driving pattern has a rectangular 30x20 degree pattern that is far more useful for directing light downrange at high speeds.
The Combo pattern combines both the Driving and Flood optics. It shines light downrange in a focused rectangular 30x20 degree pattern while also illuminating area around it in a full 80x50 degree spread.

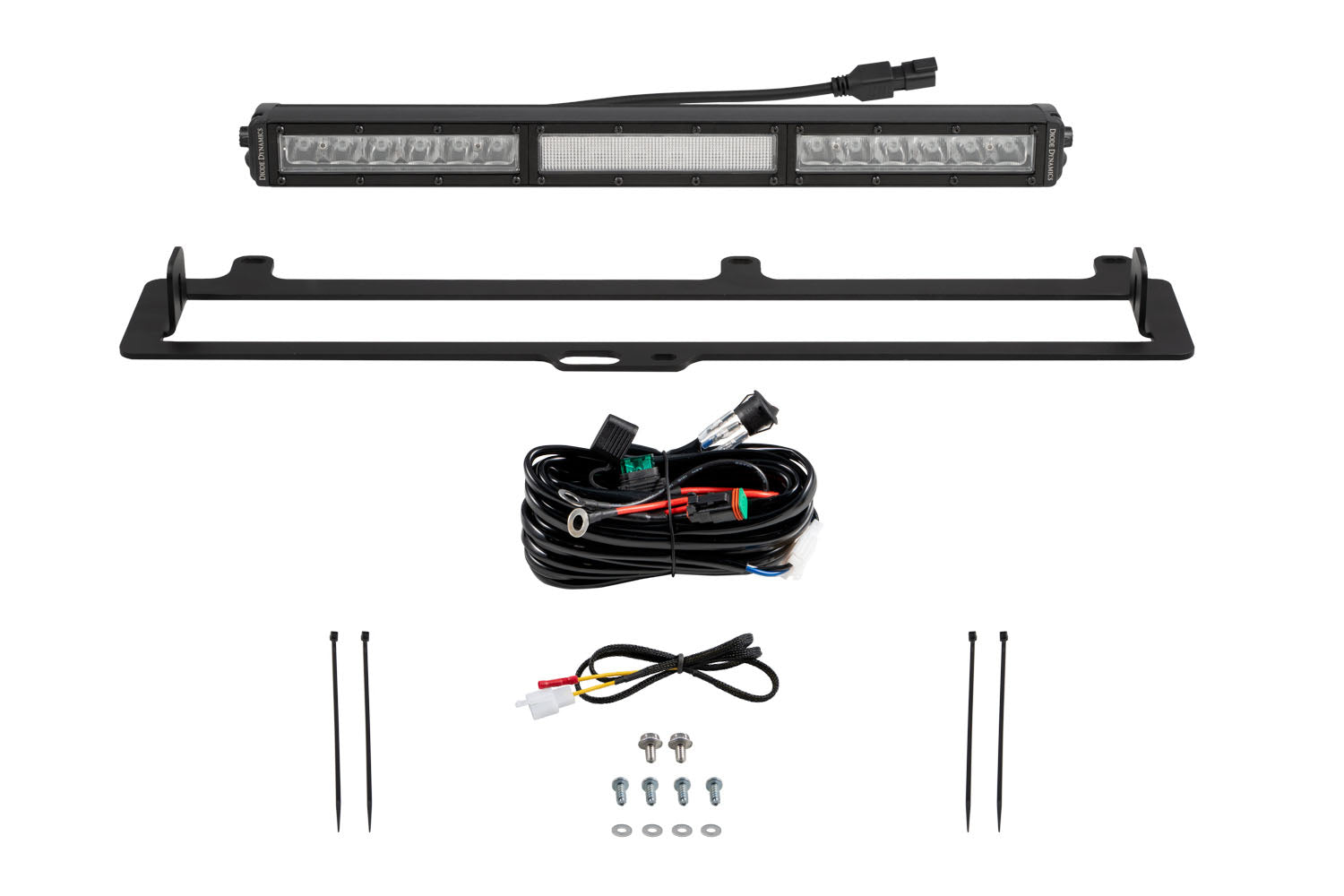

Included in the box:
One (1) SS18 LED light bar
One (1) Heavy-Duty Single Output 2-Pin Offroad Wiring Harness
One (1) Aux Switch Adapter Wire
One (1) Pro grille SS18 bracket kit for Tundra 2022+
