Heavy Duty Tie Rod Kit | Chevy Silverado and GMC Sierra 2500 / 3500 HD (11-24)

$629.95 AUD
Ask a Question
SKU: BDS081001
Availability: In Stock Pre order Available for Air Freight or Pre-Order
Overview

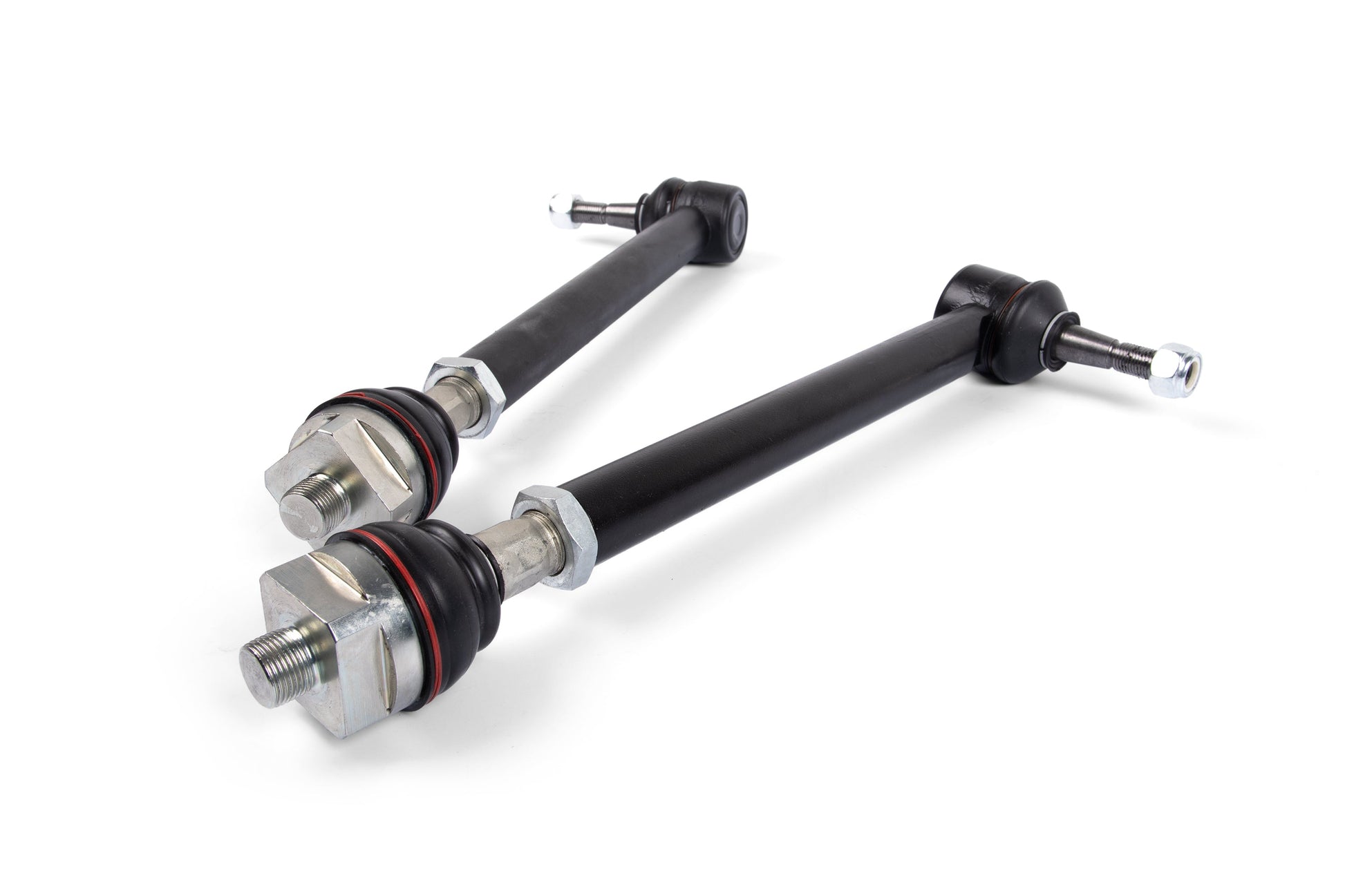

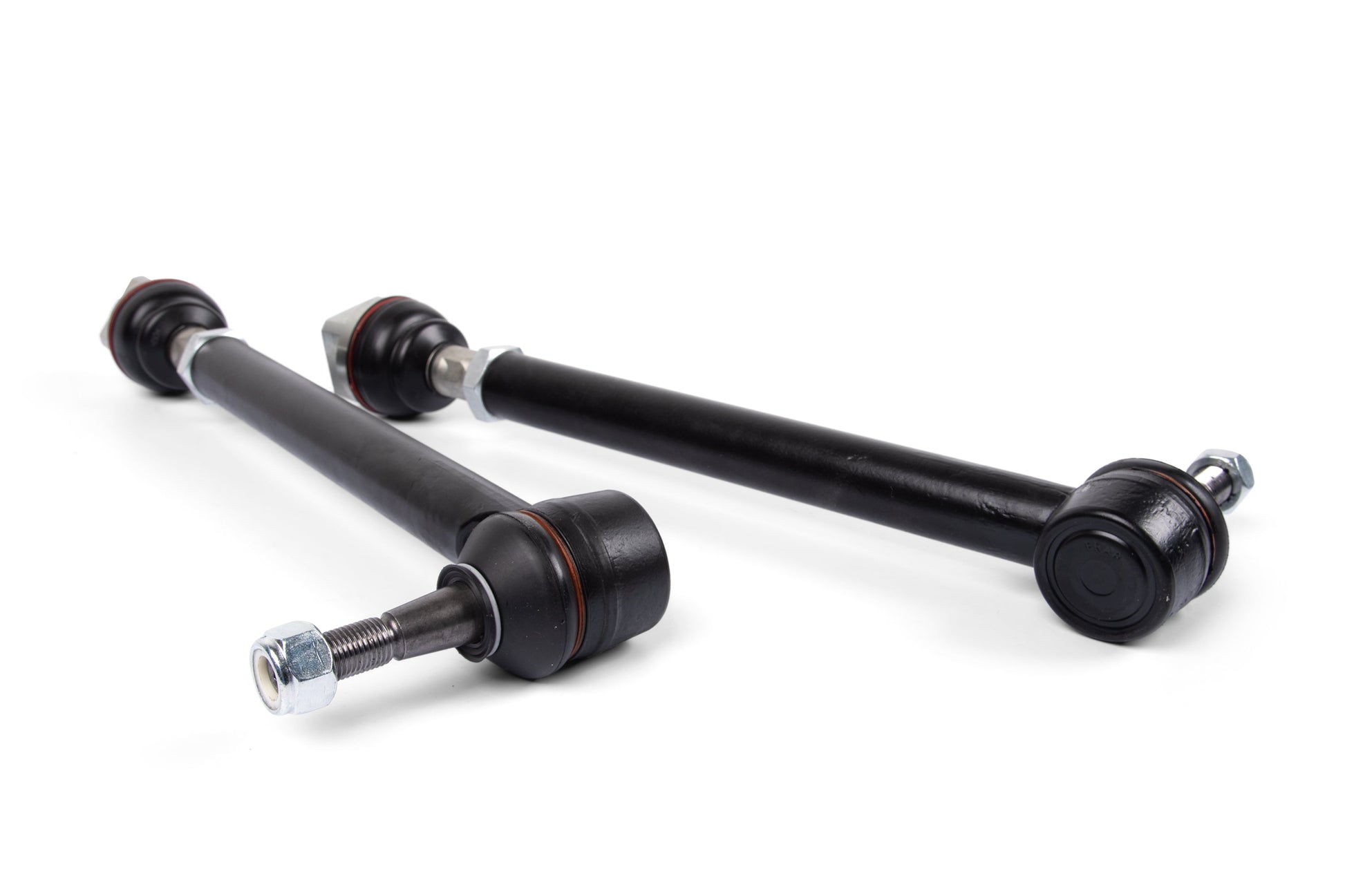

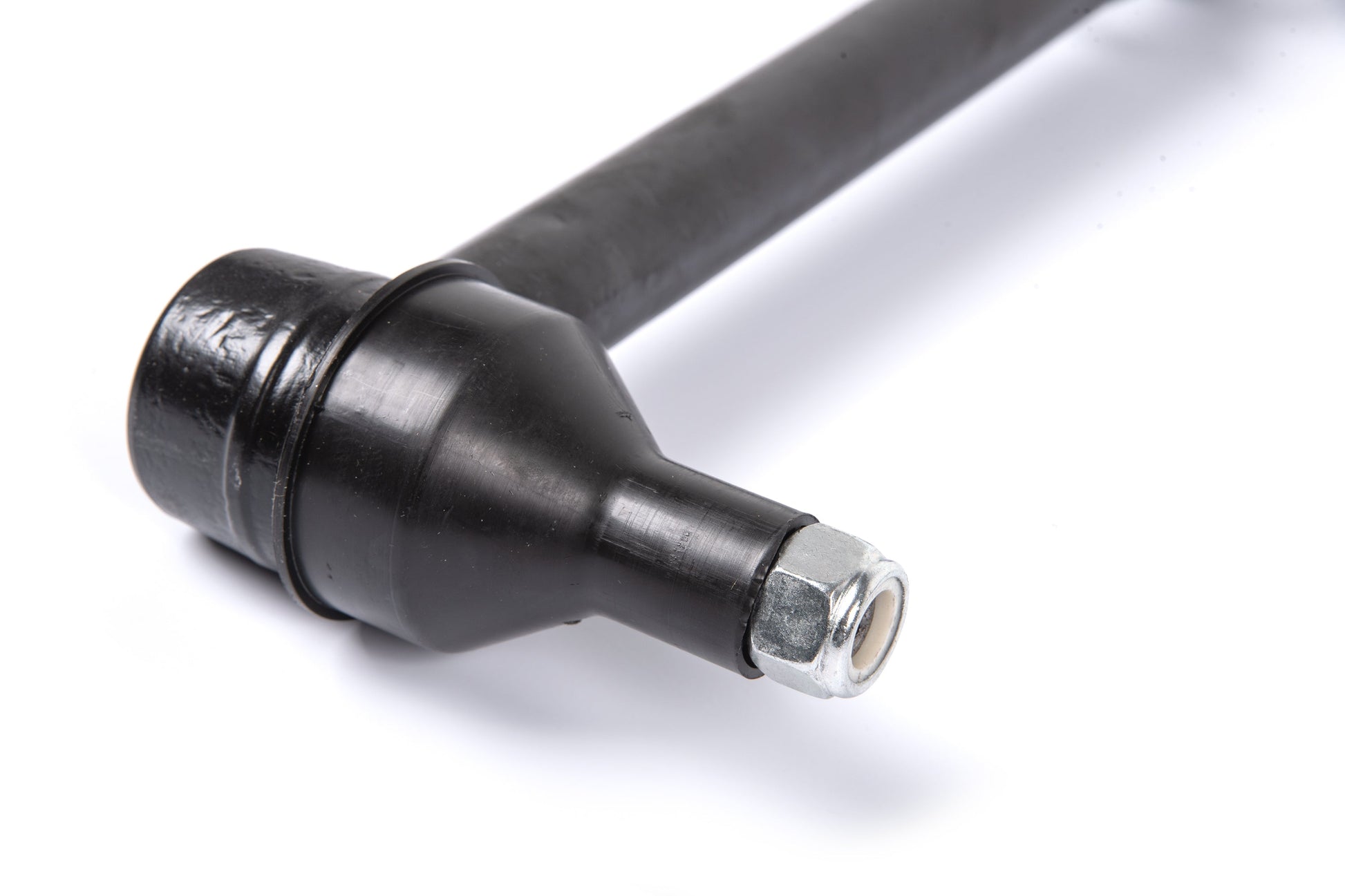

If you are looking to upgrade the inner and outer tie rods on your 2011-2024 GM 2500/3500 HD, look no further. BDS HD tie rods feature a massive forged outer housing, heat treated inner and outer ball studs, and sealed, greased joints at both ends allowing them to hold up to the harshest abuse. Compatible with all BDS GM HD kits (2011-current) and includes tool for installing the inner joint to the center link.

Important Notes
  1. Vehicle alignment is required after installation.
  2. Lifted models with a front bump stop extension may require modification. (Will work with BDS 5" & 6.5" kits and Zone 5" kits)
Installation
Installation Guide/s: Download Guide

Est. Install Time:

Installation Difficulty:

Tools Required:
Features
  • Works with stock ride height as well as most other factory replacement suspension lift systems.
  • Heavy Duty design with life time grease sealed joints.
  • 37% larger thread diameter (area that most commonly bends)
  • Heat treated 41Cr4 ball stud and inner shaft.
  • Forged C30E tie rod housings.
  • Replaces OE inner and outer tie rod assembly.
  • Includes installation tool for inner joint to the center links.
  • Tested to exceed OE pull out force of inner joint.
